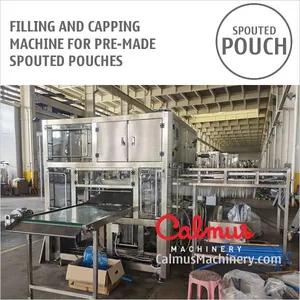

Rotary Filler and Capper for Pre-made Stand-Up Pouches

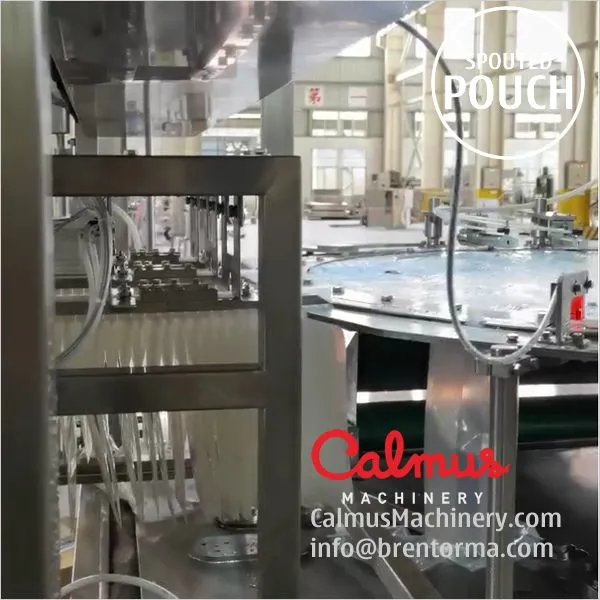

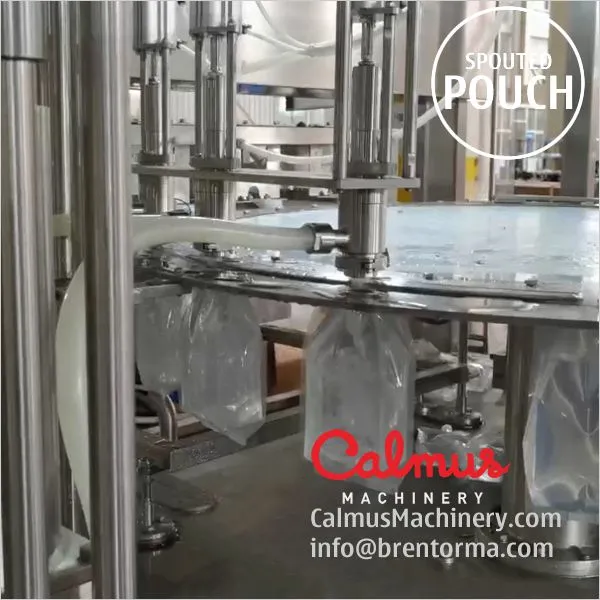

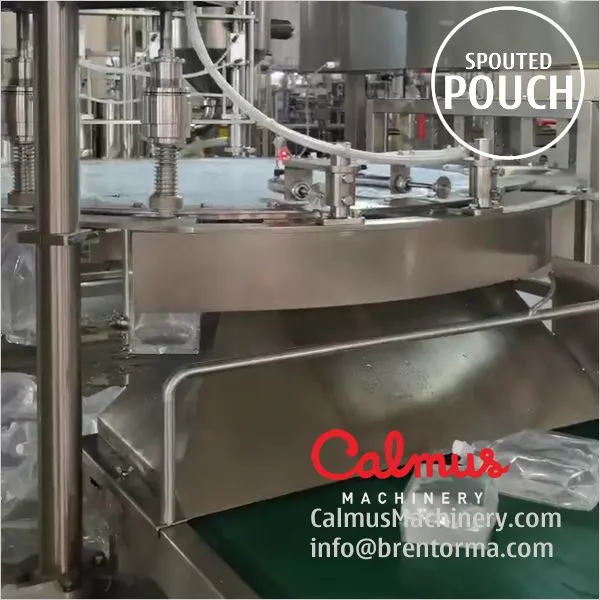

This is a rotary filling and capping machine for pre-made (stand-up) pouches with spouts and caps. It can process 3 pre-made pouches at once and the capacity is up to 45 x 1 liter pouches per minute . This filler and capper is ideal to package liquid or semi-liquid food products like dairy alternative, sauce, beverage, edible oil and more. Non-food applications include synthetic oil, liquid soap, paint, shampoo, lotion, liquid detergent and more. Both corner spouted pouches and center spouted pouches are applicable to this machine.
Our R&D is strong and we can customize pouch filler for pouches with not only double-layer but also single-layer sloted spouts.
Specifications:
Applicable pouches: premade, corner or center spouted pouches
Pouch width：max. 350mm
Pouch height：to be confirmed
Gusset size：to be confirmed
Pouch spout diameter：16mm or more
Filling range：1000-4000ml
Number of filling heads: 3
Number of capping heads: 3
Capacity：45 x 1L pouches/min
We also have a form-insert-seal monoblock case packer for stand-up pouches as the downstream packaging solution.
