Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Customized RK1500 Screw Optical Sorting Machine Glass Plate CCD Visual Inspection Machine for Nuts Fasteners Rubber Measuring
Customized RK1500 Screw Optical Sorting Machine Glass Plate CCD Visual Inspection Machine for Nuts Fasteners Rubber Measuring
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RK1500 Glass Plate Automatic Nut Optical Inspection Equipment Screw Optical Visual Sorting MachineNegotiableMOQ: 1 -
RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw WasherNegotiableMOQ: 1
-
RK-1360 360 Degree Rubber AOI Visual Sorter Automatic Optical Selective Machine for Plastics TestingNegotiableMOQ: 1
-
China RK-1360 Fastener AOI Image Sorting Machine Optical Visual Selection Machinery for Nut Hardware With 360-degree ViewingNegotiableMOQ: 1
-
RK-1300 Eddy Current Fastener Visual Sorting Equipment Rotary Disc Long Screws Optical Inspection MachineNegotiableMOQ: 1

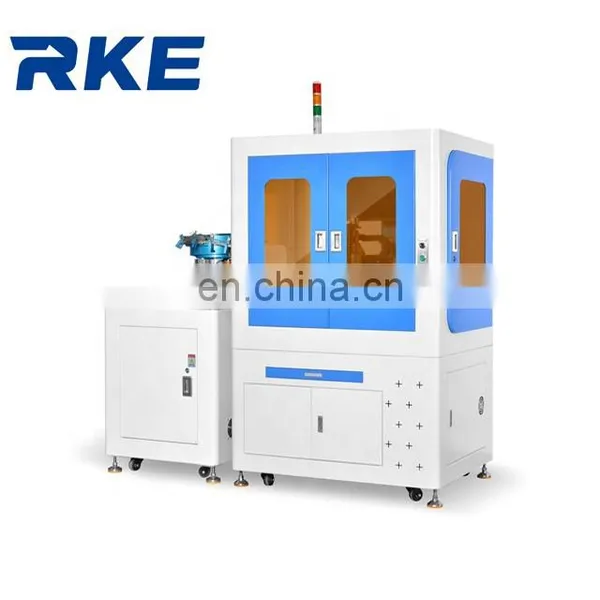

CCD Visual Inspection Machine for Nuts
Types: RK-1500 Glass plate optical sorting machine

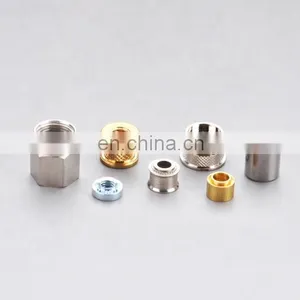

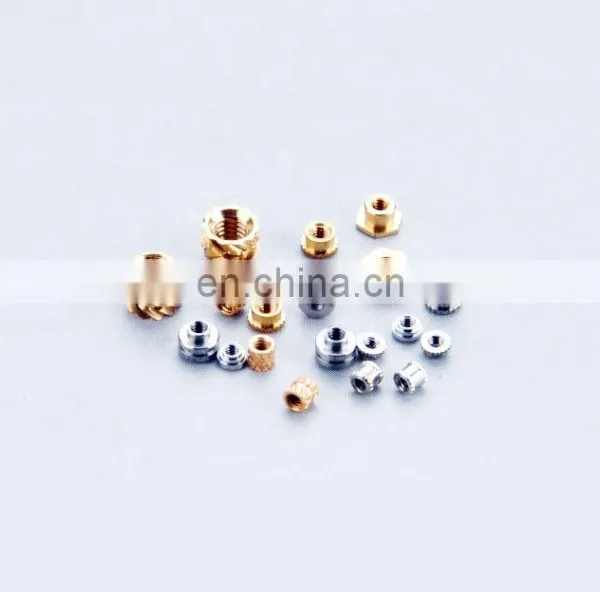

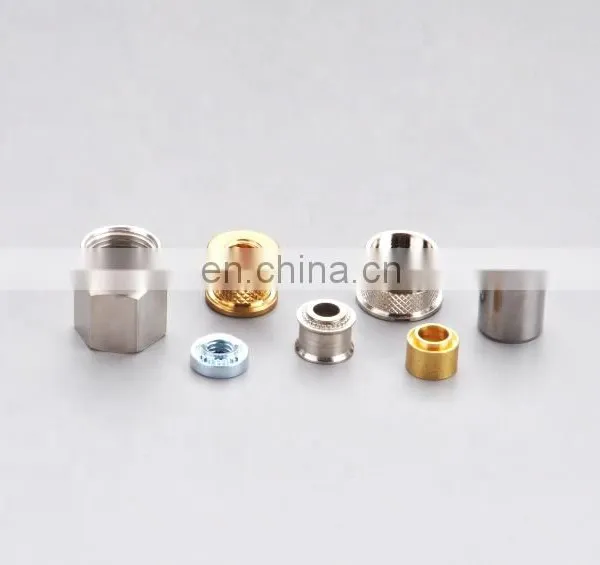

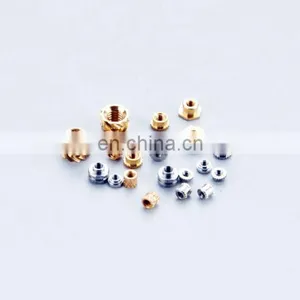

Suited for: Nuts, rivets, washers, bushing, elastic rings, sleeves, inserts, valve retainer, chain plate, shearing parts

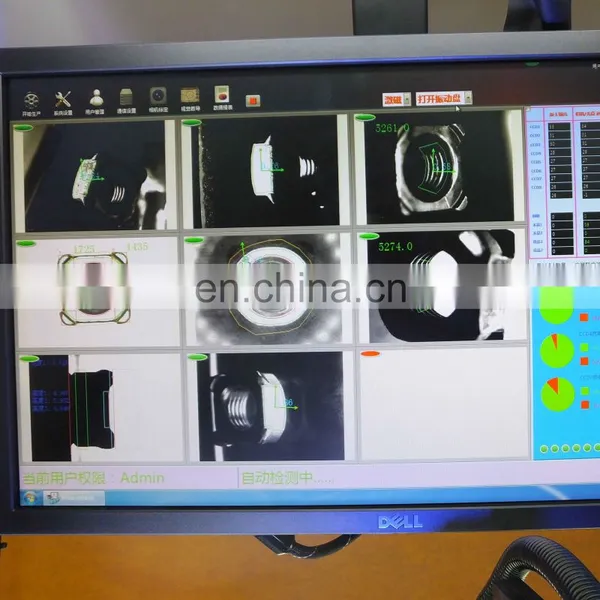

Inspection Screen
The machine equipment is outfitted with four industrial cameras.
Camera 1 is Horizontal camera , inspect multi-height and outer diameter .
Camera 2 is Vertical bottom view camera , inspect the aperture and the burr of the product.
Camera 3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used to detect for chamfering.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Camera 1 is Horizontal camera , inspect multi-height and outer diameter .
Camera 2 is Vertical bottom view camera , inspect the aperture and the burr of the product.
Camera 3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used to detect for chamfering.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:

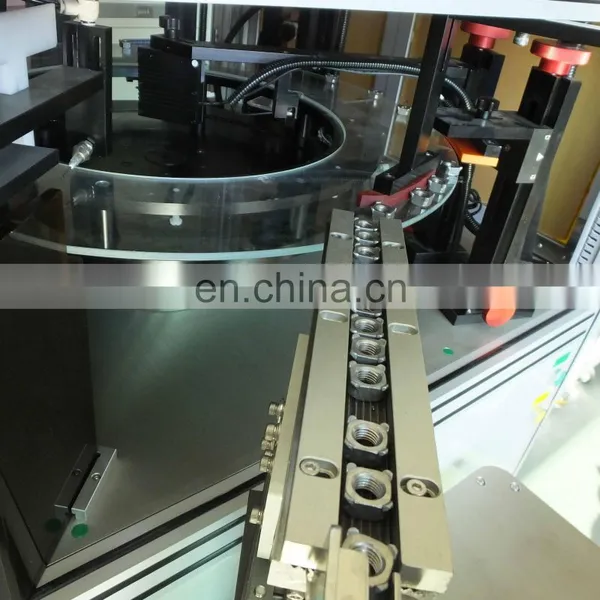

1.Highly-transparent glass plate.
2.Fit for grease-free parts which can be placed on the glass plate securely. 3.Wide detection range of fasteners,mobile phone parts,rubber products,electronic components ,special-shaped hardware,screw etc.
4.Detection camera:can add 2-6 cameras according to the inspect items.
5.Detection speed:300~1000 PCS /min Depend on individual case.
6.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Delivery and Package:
Shipping
1.Upon receipt of payment , delivery date will be in 25-30 working days,
2.By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or according to customer's requirement.
2.By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or according to customer's requirement.
After-sales Service:
1, Warranty: 12 months FREE overseas service.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, project plan will be send back to you after practical test by us. Then discuss the equipment specification and procurement plan.
We promise that most suitable machine with costing the least money.
