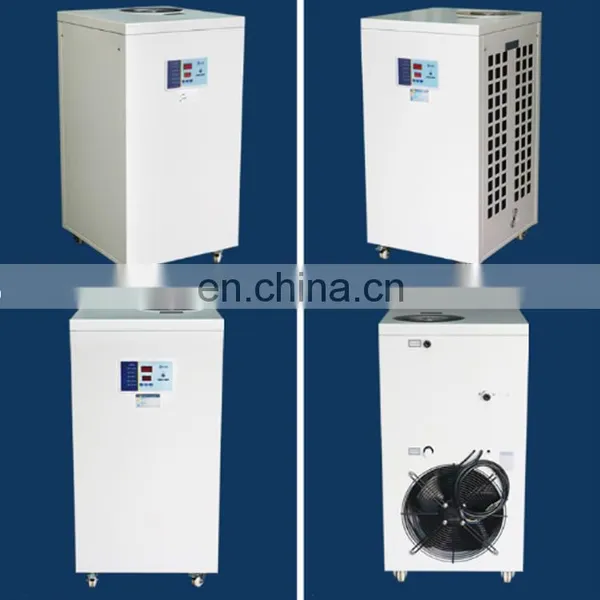

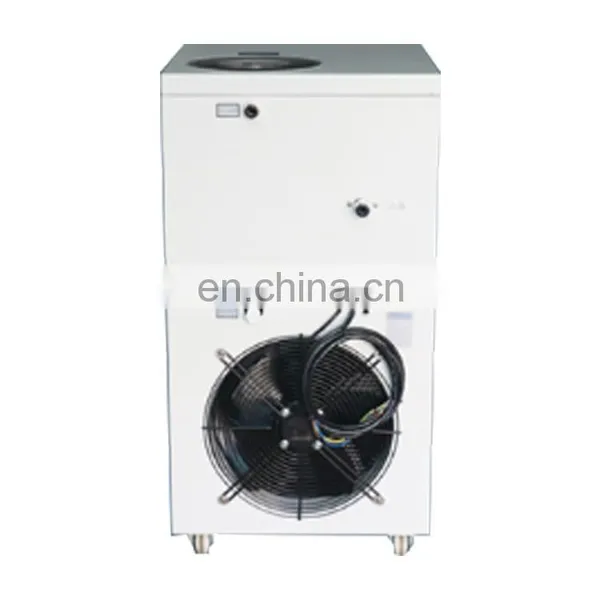

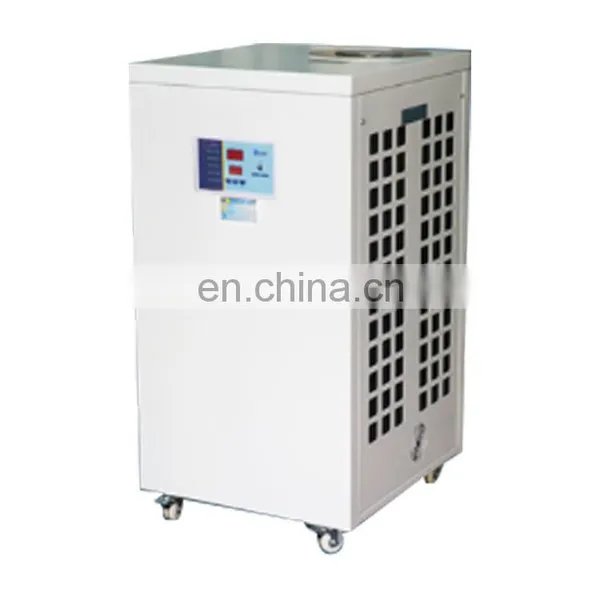

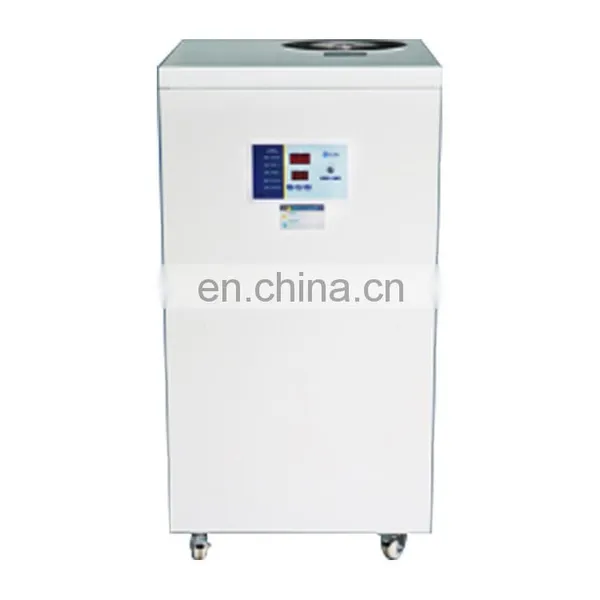

2000W Welding Water Cooler Cooling Water Tank Chiller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2006
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6 Axis Arc Industrial Welding Robot Positioner Welding MachineNegotiableMOQ: 1 -
Automatic CNC Industry Mig/tig Welding Machine/ Welding Robot SystemNegotiableMOQ: 1
-
6 Axis Industrial Robot Arm For Welding Sorting Spraying Labeling Stamping Cutting PunchingNegotiableMOQ: 1
-
Hot Selling Automatic Argon Arc Welding RobotNegotiableMOQ: 1
-
6 Axis Industrial Robotic Arm for Welding Cutting Painting and PalletizingNegotiableMOQ: 1
Product Description
Application range of chiller:
1. High / medium frequency induction heater
2. Resistance welding machine, welding machine
3. CNC machining center, PCB high-speed data rig
Chiller functions and features:
1. The control system uses a microcomputer controller, which is easy to operate and has stable performance. This controller has
the function of automatic fault diagnosis, and displays the corresponding fault point in the PV window, prompting the user to
quickly operate according to the fault code.
2. The inlet and outlet are made of SUS304 stainless steel, which is welded and formed in one piece.
3. The top scattered heat exchange water tank design is easy to replenish, observe, clean, and has a large water storage capacity,
which can store 16.5L of water.
4. Use Panasonic compressors with reliable performance, long service life and high energy efficiency.
5. The use of SUS304 stainless steel evaporation coil is suitable for a variety of liquid cooling, corrosion resistance, easy
cleaning, clean water quality, high efficiency and energy saving.
6. The bottom is equipped with brake casters for easy movement and installation.
1. High / medium frequency induction heater
2. Resistance welding machine, welding machine
3. CNC machining center, PCB high-speed data rig
Chiller functions and features:
1. The control system uses a microcomputer controller, which is easy to operate and has stable performance. This controller has
the function of automatic fault diagnosis, and displays the corresponding fault point in the PV window, prompting the user to
quickly operate according to the fault code.
2. The inlet and outlet are made of SUS304 stainless steel, which is welded and formed in one piece.
3. The top scattered heat exchange water tank design is easy to replenish, observe, clean, and has a large water storage capacity,
which can store 16.5L of water.
4. Use Panasonic compressors with reliable performance, long service life and high energy efficiency.
5. The use of SUS304 stainless steel evaporation coil is suitable for a variety of liquid cooling, corrosion resistance, easy
cleaning, clean water quality, high efficiency and energy saving.
6. The bottom is equipped with brake casters for easy movement and installation.
Specification
Model |
Unit |
LS-50 |
LS-100 |
LS-200 |
|||||
Cooling Capacity |
KW |
3 |
5 |
12 |
|||||
Kcal/h |
13760 |
16856 |
22790 |
||||||
Compressor |
Input Power |
KW |
3.75 |
4.5 |
6 |
||||
Rated Power |
HP |
5 |
6 |
8 |
|||||
Power |
3PH-380V/50HZ |
||||||||
Evaporator |
Type |
Shell and Tube |
|||||||
Pie Diameter |
inch |
1'' |
1'' |
2'' |
|||||
Refrigerant |
Type |
R22 |
|||||||
Quantity |
KG |
2 |
2.5 |
4 |
|||||
Condenser(water chiller) |
Type |
Finned Copper Tube + Low Noise Outer Rotor Fan |
|||||||
Pie Diameter |
inch |
1'' |
1'' |
1.5'' |
|||||
Cooling Water Flow |
m3/h |
2.22 |
2.6 |
3.95 |
|||||
Pump |
Power |
KW |
0.75 |
0.75 |
1.5 |
||||
HP |
1 |
1 |
2 |
||||||
Distance |
m |
35 |
35 |
15 |
|||||
Flow Rate |
L/min |
110 |
110 |
360 |
|||||
Safety Protection |
High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc. |
||||||||
Dimensions(L*W*H) |
mm |
1080*640*986 |
1080*640*986 |
1270*650*1413 |
|||||
