Product Description

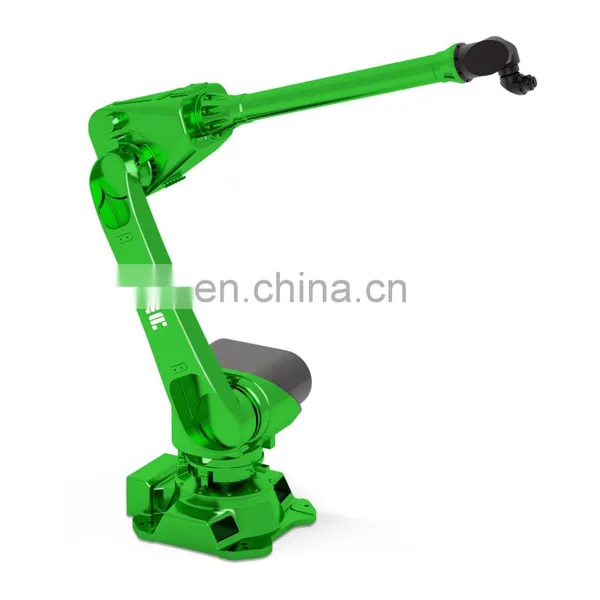

GR6100-3800Maxium Reach:3750 mm /
Lemma Wrist / Max Payload:10 kg

Highlights
Wider painting range, with lemma 3R wrist at the robot end, no singularity in the front; The electric control cabinet complies with EN ISO13849 PLd security level and supports aux axis; Standard painting application software, built-in I/Os, easy integration, simple programming; ATEX explosion-proof certification of China and Eu, can be used in zone 1 gas and zone 21 dust dangerous operation environment.
Applications
Specially designed for large flat workpiece painting: such as wooden door, window frame, pipe; Also can be used for multi-size irregular parts: such as large vehicles.

Industries
Suitable for furniture, automobile and other industries.
Specification
type
GR6100-3800
Axis
6
Payload
10KG
Net Weight
920kgs
arm reach
3750mm
Repeatability
+/-0.5mm
Mounting
Floor, Ceiling
Ambient temperature
0 - 40°C
Safety Level
EN ISO13849 PLd
axes
Working range
Maximum Speed
J1
±155°
138°/s
J2
+75°/-145°
152°/s
J3
+105°/-75°
157°/s
J4
±360°
600°/s
J5
±360°
600°/s
J6
±360°
720°/s
Packing & Delivery
Packing material: shockproof cotton, insulation paper pad, carton, wooden case
