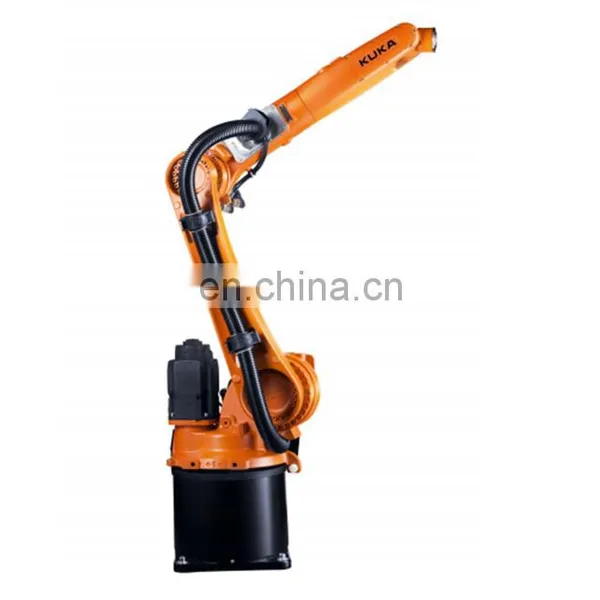

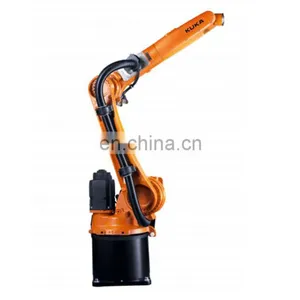

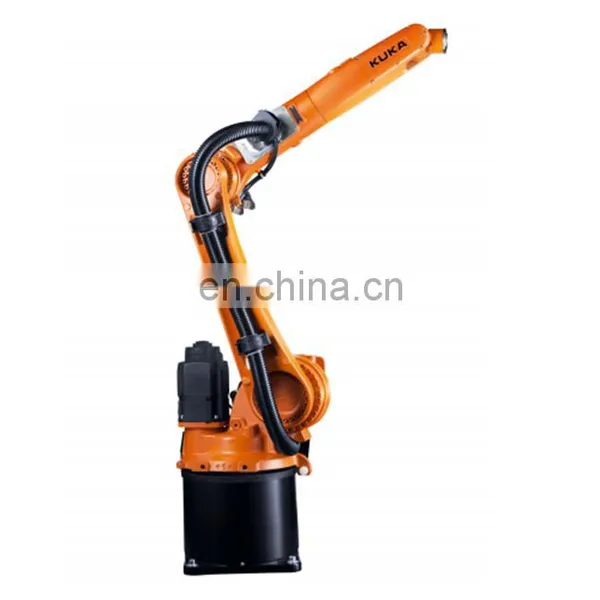

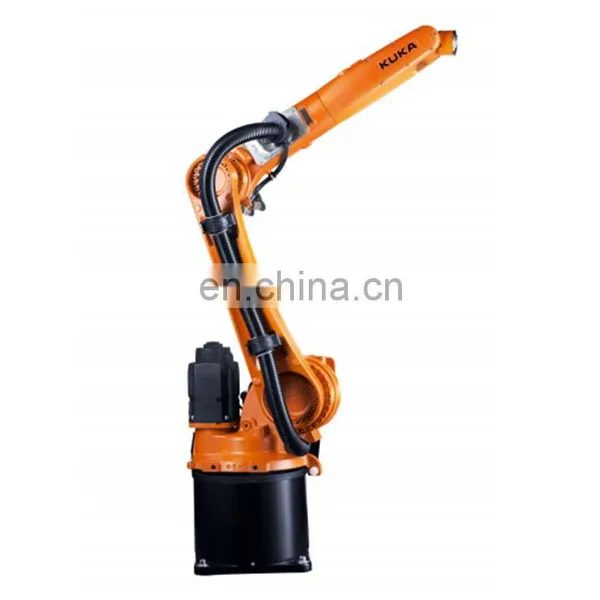

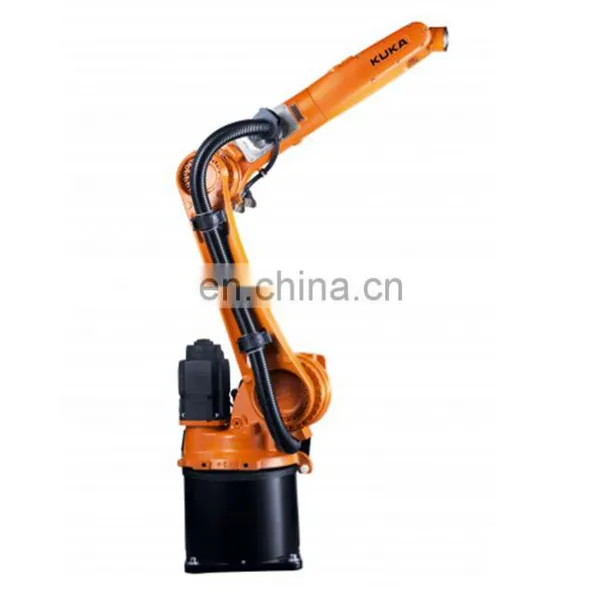

Dispensing Gantry Robot Kuka Kr10r1420 Sorting Robot and Kuka Industrial Robotic Arm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2001
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pick and Universal Robot Arm Kuka Kr20r1810 Pain Robot Arm and 6 Dof Robotic ArmNegotiableMOQ: 1 -
Robot Finger Kuka KR20R1810 Low Price Robot for Welding Automation Robotics WorkNegotiableMOQ: 1
-
Smart Collaborative Robot Co-packer Kuka Kr20r1810 Shenzhen Industrial Robot 20kg PayloadNegotiableMOQ: 1
-
Industrial Robot Arm AE1003A-098 Robot Arm Payload 3kg and Reach 980mm Robot Arm KitNegotiableMOQ: 1
-
Industrial Palletizing Robots AE1005A-085 6 Axis Robot Welding and Bender Robot Machine Payload 5kgNegotiableMOQ: 1
Products Description
Perfected for handing and assembly: Fast and incredibly agile with the utmost precision. Down to the very last detail,KR CBERTECH nano robots are designed as high-end handing robots.
Compact design.Reduced volume with greater payload capacity and longer reach. KR CYBERTECH nano robots work in confined spaces.
Minimized disruptive contour. A stareamlined arm/wrist design, a minimized disruptive contour of axis 2 and optimal integration of the welding equipment.
Maximum workspace. With their large working envelope to the rear and long downward reach ,KR CYBERTECH nano robots can work in areas inaccessible to cinventional robots.
Best-in-class repeatability. Besides many other innovative technical details, the KR CYBERTECH nano robots impress with a repeatability of 0.04 mm.
Flexibility in any position. Exceptional performance when installed on the floor,wall or ceiling ,or at any other angle.KR CYBERTECH nano robtos are suitable for every installation position in their standard versions-without requiring"extras"
KUKA KR10R1420 Technical data |
||
Maximum reach |
1420 mm |
|
Rated payload |
10 kg |
|
Pose repeatability(ISO 9283) |
±0.04 mm |
|
Number of axes |
6 |
|
Mounting position |
Floor, Ceiling, Wall, Desired angle |
|
Footprint |
333.5 *307 mm |
|
Weight |
approx.160 kg |
|
Ambient temperature during operation |
0°to 55℃（273K to 328K） |
|
Protection (IEC 60529) |
IP65 |
|
Protection,robot Wrist(IEC 60529) |
IP67 |
|
Controller |
KR C4 smallsize-2; KR C4 compact |
|
Teach pendant |
KUKA smartPAD |
|
Axis data |
Motion range |
Speed with rated payload |
A1 |
±170° |
220°/s |
A2 |
-185°/-65° |
210°/s |
A3 |
-137°/163° |
270°/s |
A4 |
±185° |
381°/s |
A5 |
±120° |
311°/s |
A6 |
±350° |
492°/s |
Specification
Product packaging
Application
KUKA ROBOT FOR MACHINE TENDING
KUKA ROBOT FOR WELDING
KUKA ROBOT FOR PICK&PLACE
