Product Overview

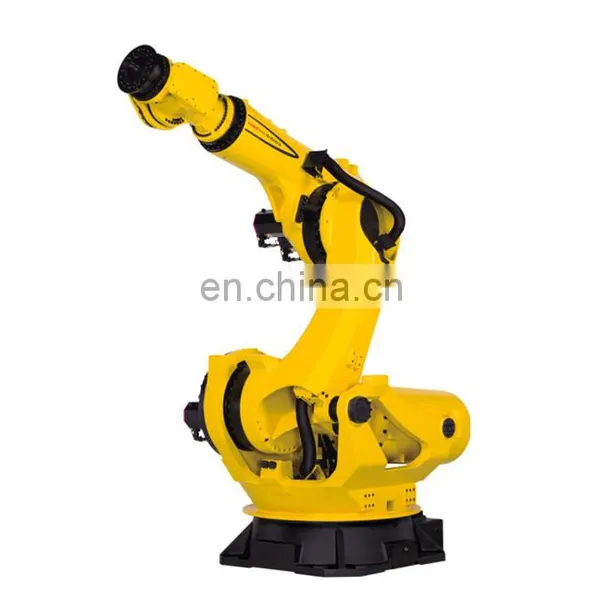

Fanuc M-1000iA 1000kg 6 axis industrial robot

Features FANUC Robot M- 1000iA is a large and heavy payload robot with wide motion range and 1 000kg payload capacity. 1) M-1000iA has a J3 arm which can stand upright above and rotate backwards of the robot. The wide motion range realizes a large operation area includ- ing above and behind the robot, therefore M-1000iA can adapt various layout environments. 2) M-1000iA has 1000kg payload capacity and a strong wrist. M-1000iA can handle large and heavy workpieces such as battery units of EVs, long build- ing structures, etc. The wrist has IP6 7-equivalent resistance to environmental conditions (dust and dips) and can be used in harsh environments with confidence. 3) Due to a high rigidity design, M-1000iA is available for machining such as drilling. 4)Tablet TP, which has a large touch panel and an user- friendly intuitive interface, and traditional iPendant are available as a teaching device. 5)iRVision and various intelligent features are avail- able. These enable to build robot systems flexibly.
FEATURES AT A GLANCE
INDUSTRIAL FEATURE


HIGH EFFICIENCY
HEAVY LOAD
PRODUCT SPECIFICATIONS
No
Item
Data
1
Type
Fanuc M-1000iA
2
Payload
1000 kg
3
Max. arm reach
3253*4297 mm
4
Reapetibility
+/- 0.1 mm
5
Weight
5300 kg
6
Installation
Floor
7
Enviroment
0-45℃ / Normally 75% RH or less
8
Matching controller
R-30iB Plus(A-,B-cabinet)/30kVA
9
Program Lauguage
English
10
Application
Handing
PRODUCT CONFIGURATION
