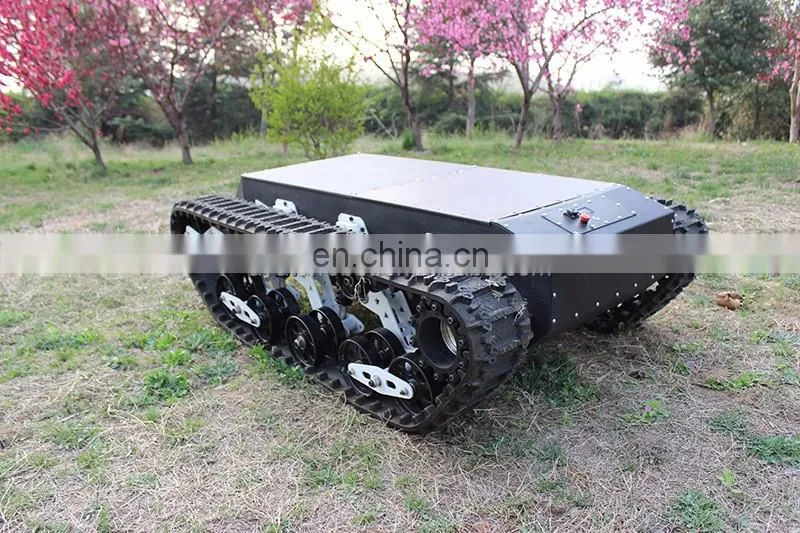

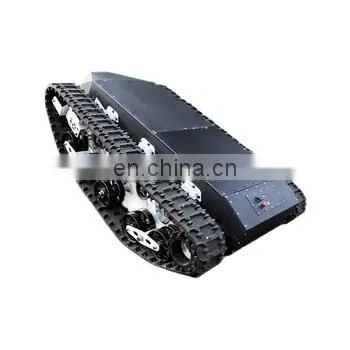

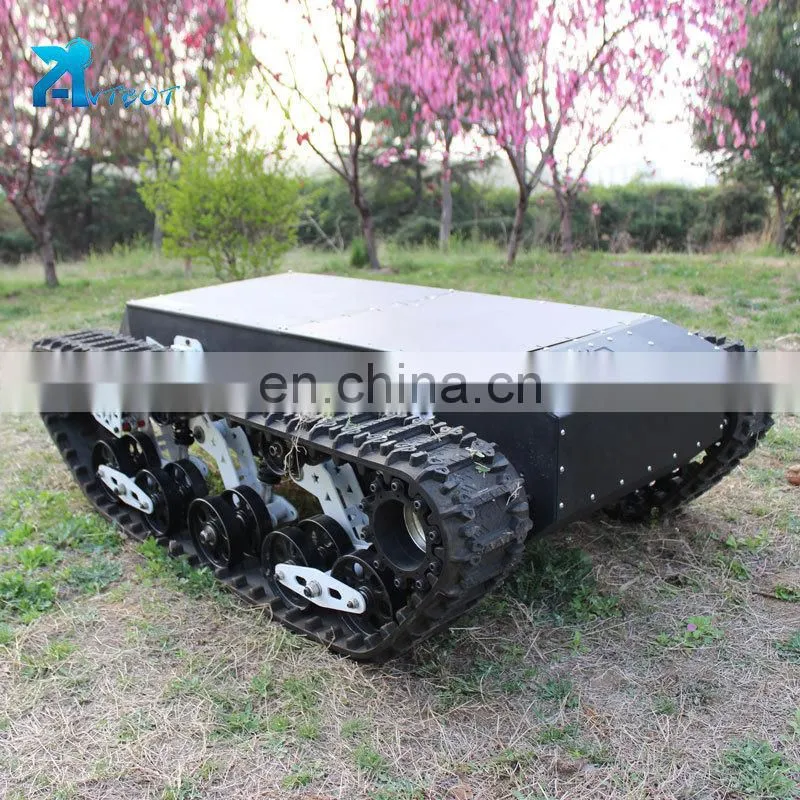

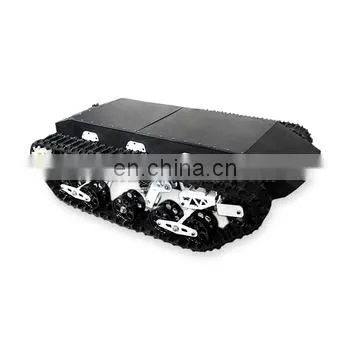

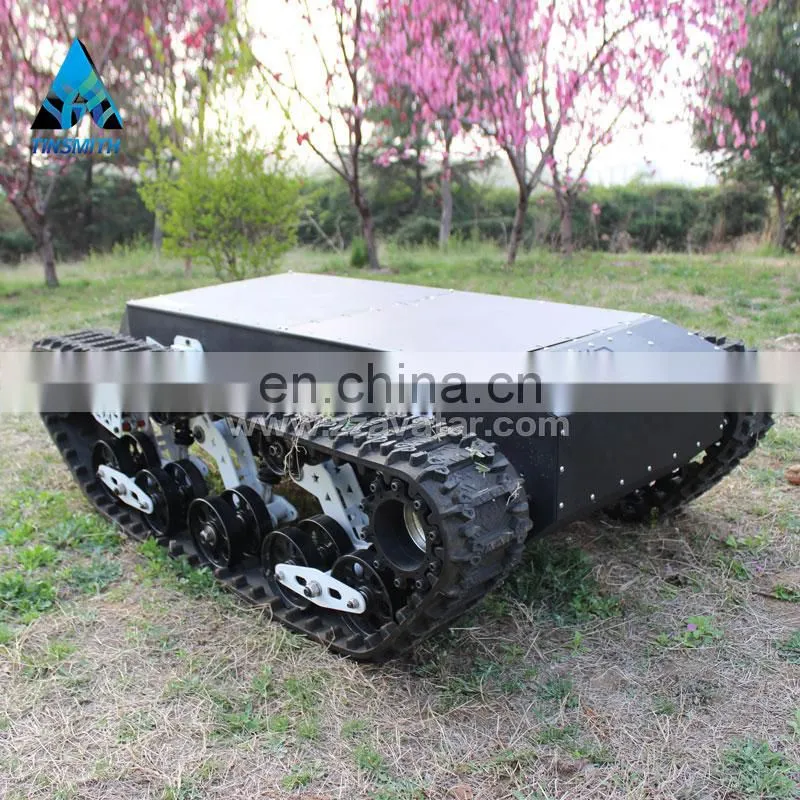

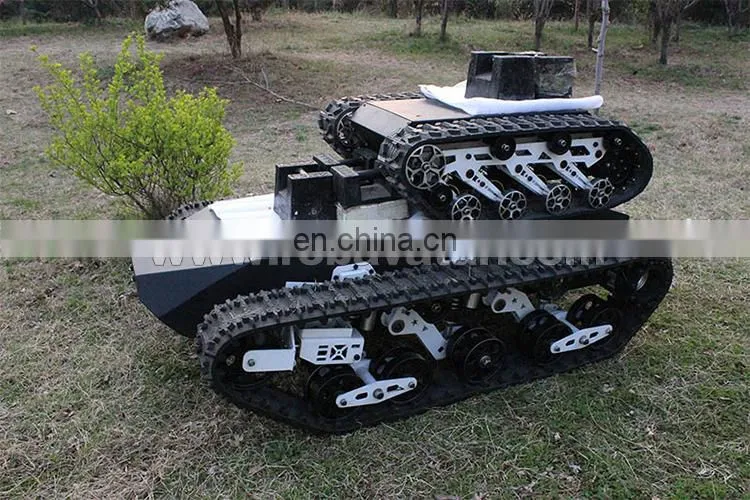

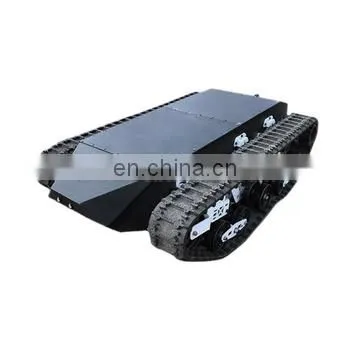

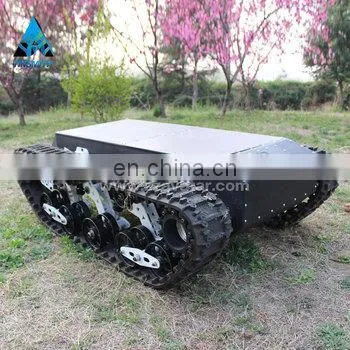

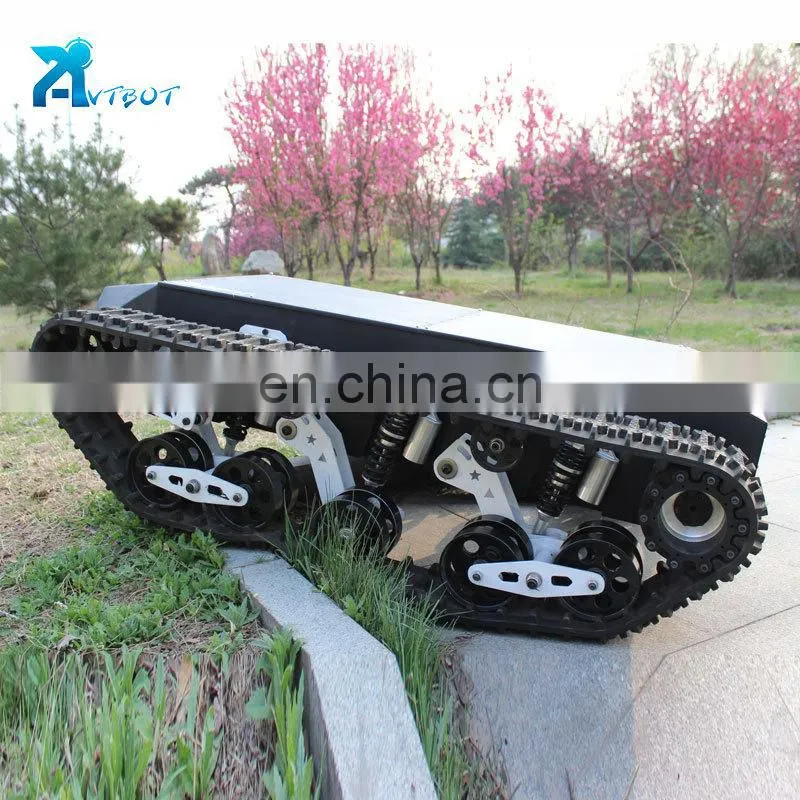

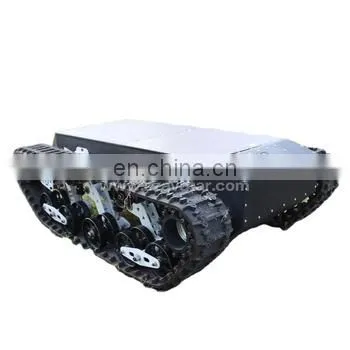

electric track chassis robot platform
Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
Features:

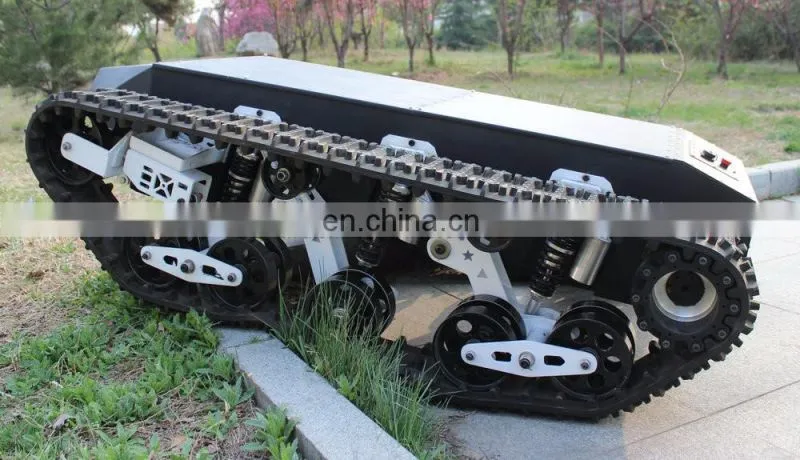

1. 6 hydraulic shock absorption, independent suspension, high stability.
2. Independent track tension self-adjusting device.
3. 190mm ground clearance, with high traffic capacity.
4. Strong loading capacity, small pressure to the ground.
5. Modular design, easy to disassemble and maintain.
Specification:
|
Item |
Data |
Item |
Data |
|
Dimension |
1650*1016*491mm |
Inner Space |
1300*500*256mm |
|
Chassis Self Weight |
220kg |
Rated Speed |
0-6.km/h |
|
Rated Load |
200kg |
Rated Torque |
93.8NM |
|
Body Material |
304 Stainless Steel/ Alloy Steel Plate/Aluminum |
Ground Clearance |
190mm |
|
Track Width |
180mm |
Maximum Climbing |
200mm |
|
Track Material |
Quality Rubber Embedded with Kovlar Fiber |
Max.Spanning |
500mm |
|
Shock Absorption |
Left and Right Independent *6 |
Climbing Ability |
30° (can climb stairs) |
|
Reduction Gears |
Double Reduction Planetary |
Ground Pressure |
24.48KPa |
|
Reduction Ratio |
1:16 |
Turning Diameter |
1830mm |
|
Motor |
48V Brushless DC Motor |
IP Grade |
IP64 |
|
Rated Power |
1760W*2 |
Surface Treatment |
Black coating (dull polish) |
1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
