High torque brushless motor AVT-9T rubber crawler robot chassis commercial robot rescue robot good for inspection, exploration
1. Product Introduction:
AVT-9T is one general tracked robot chassis, which consists of Christie suspension system, high torque brushless DC motors. Reasonable structure and durable track make it with good pass-capacity, lower center of gravity, stable working and efficient transmission ratio. It is suitable for mobile solutions for all fields, especially good for inspection robot, exploration robot, fire-fighting robot, etc.
2. Product Application:
1. Exploration of inspection
2. The rescue vehicle
3. Scientific research and education
4. Fire control security guard
5. Special photography
6. Special transport
3. Product Features:
1. Independent suspension.
2. Huge development space.
3. Powerful motor and long work time.
4. Product Specification:
|
Item |
Data |
Item |
Data |
|
Dimension |
960 * 700 * 320mm |
Internal Size |
465*240*44mm |
|
Loading Capacity |
80kg |
Weight |
105kg |
|
Rated Power |
650w*2 |
Track width |
150mm |
|
Motor |
48V DC Brushless Motor |
Reduction Ratio |
1:15 |
|
Running Speed |
0-6.5km/h |
Ground Clearance |
75mm |
|
Climbing Ability |
30° (Can Climb Stairs) |
Rated Torque |
37.5Nm |
|
Ditch Passing Ability |
>250mm |
Vertical Spanning |
150mm |
|
Body Material |
Stainless Steel 304 / Alloy Steel / Galvanized Pipe / |

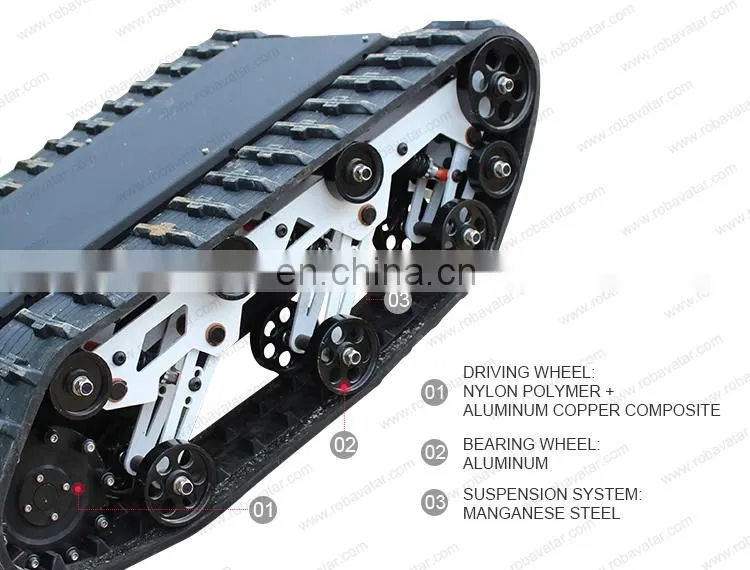

Suspension System |
Independent * 6 Shock Absorption |
|
|
Aluminum |
|
|
|
Surface Treatment |
Black Spray (Matte) |
Protection Grade |
IP54 |
Electrical Part
|
Voltage |
DC48V |
Motor |
DC Brushless Motor |
|
Total Power |
1500w |
Standby Power Consumption |
≤ 50w |
|
Brake Type (Optional) |
Electric Brake Type |
Braking Voltage |
DC48V |
|
Encoder (Optional) |
1000-2500TVL |
Driver Model |
6050 |
|
Remote Control Distance |
800m (Visual) |
Remote Control Channels |
9T (3T Used) |

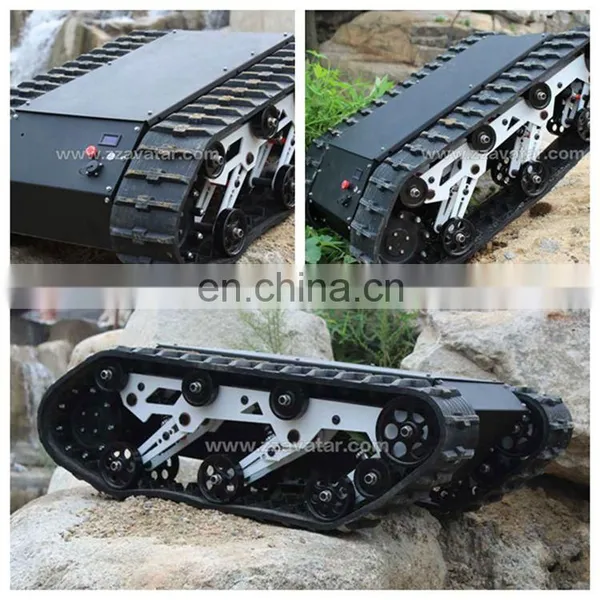

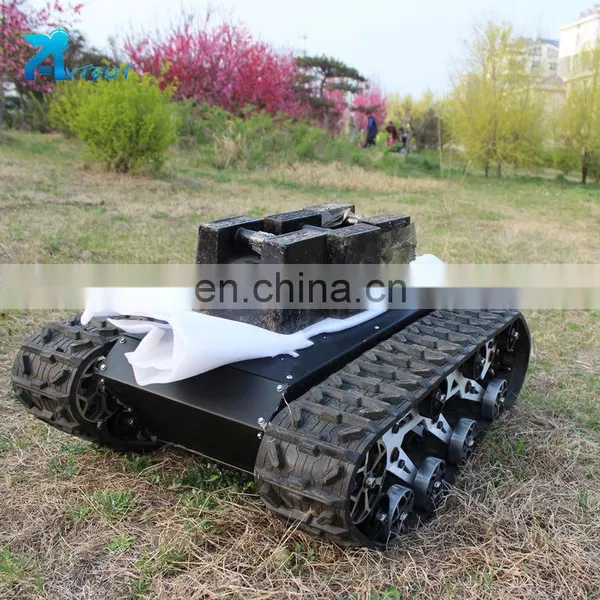

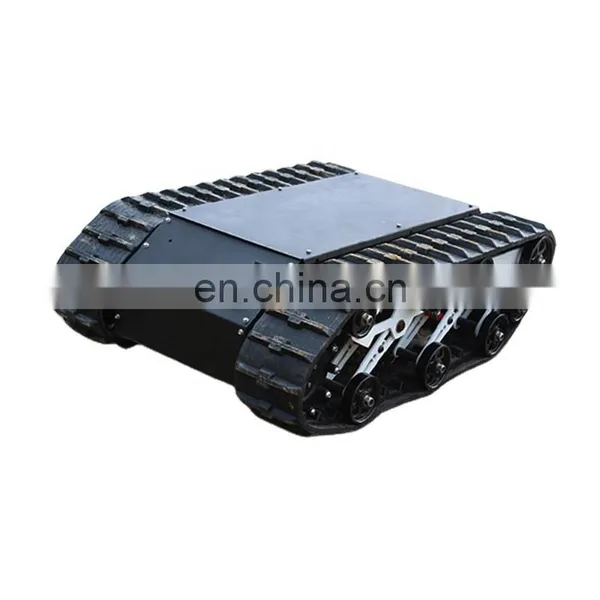

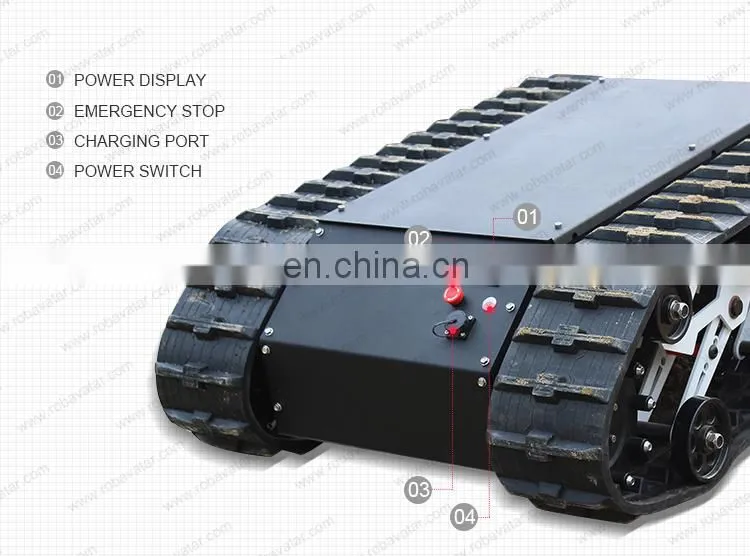

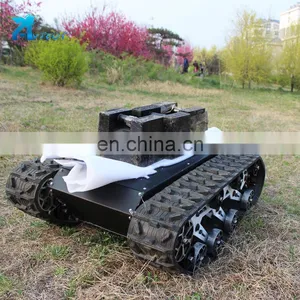

5. Product Picture show:
Packing: Wooden case .
Delivery way: By express, by air or by ship.
