Defy 300kg loading 2.5km/h-12km/h rubber crawler tracked chassis robot stair climber rubber track chassis TINS-13
1.Application of robot platform
As a multi-functional platform, TinS-13 can be equipped with a variety of equipment, such as camera, water gun, etc. which is widely used in patrol inspection, collaborative transportation, municipal administration, fire protection and other industries.
We also produce customized product applications: Fully automatic lawn mower, intelligent agricultural machinery, ect.
I——Pure Electric Robot Lawn Mower
II——Fruit Picking Transport Robot
III——Rescue Drag Robot Chassis
2. Parameter information of robot platform
|
Item |
Data |
Item |
Data |
|
Dimension |
1300*830*540mm |
Speed |
2.5-12KM/h (<60km/h high speed can be customize) |
|
Self Weight |
120kg |
Designed Load |
100-300kg |
|
Waterproof |
IP65 |
Rated Torque |
100-500 NM |
|
Track Width |
130mm |
Reducer Efficiency |
65-85% |
|
Gear Ratio |
1:10-1:40 |
Suspension System |
Matila |
|
Motor |
(0.75-1.5KW)*2 |
Climbing Ability |
≤30°(can climb stairs) |
|
Motor Rated Speed |
1500r/min |
Maximum Span |
750mm |
|
Remote Control Distance |
Open area 800m-3000m |
Over-Obstacle Capacity |
130mm |
3.Features of robot platform
1. Standard frame body design, light weight and high strength. The profiled steel and sheet metal skin structure ensures the rigidity and strength of the machine and the airtightness of the machine body.
2. The expansion platform on the machine adopts T-slot and nut sliders, which can carry a variety of equipment.
3. Electronic stepless speed change, large axle torque and high speed.
4. Externally expand the power output and can also be used as a mobile power station.
5. Front high-power LED lights and back turn lights, convenient for night driving and operation.
6. Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
7. Speed closed-loop and displacement closed-loop control can realize precise autonomous navigation.
8. Power conversion module with multiple protections for overvoltage, overcurrent, and undervoltage.
9. 3 control modes: Handheld remote controller mode (standard), Visual control box mode (optional), Network control mode (optional).

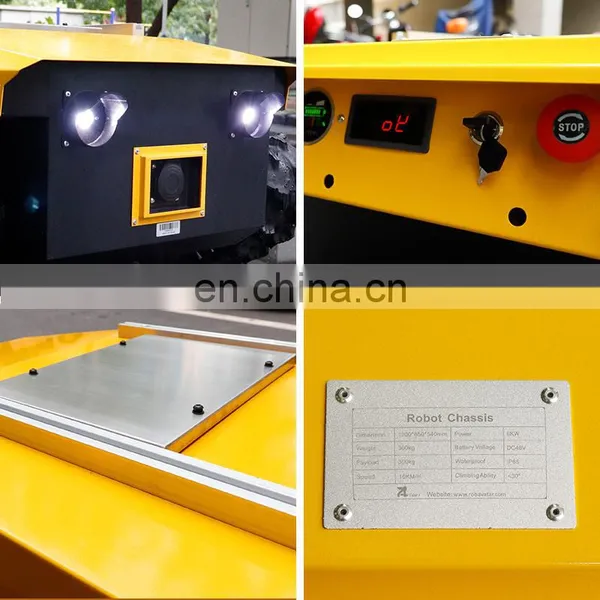

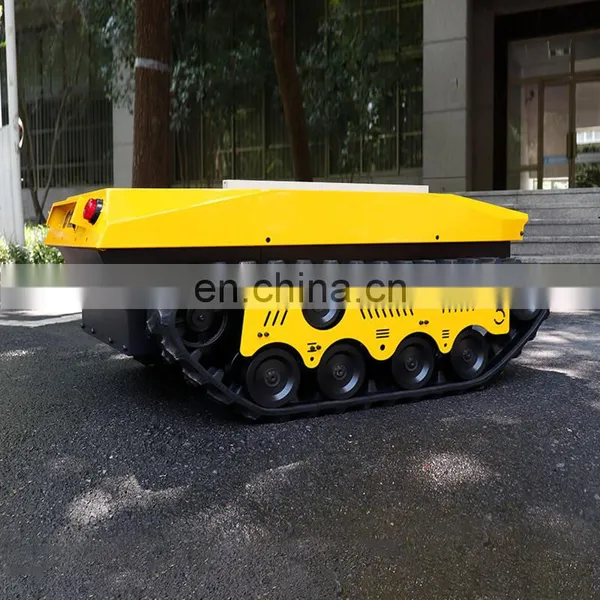

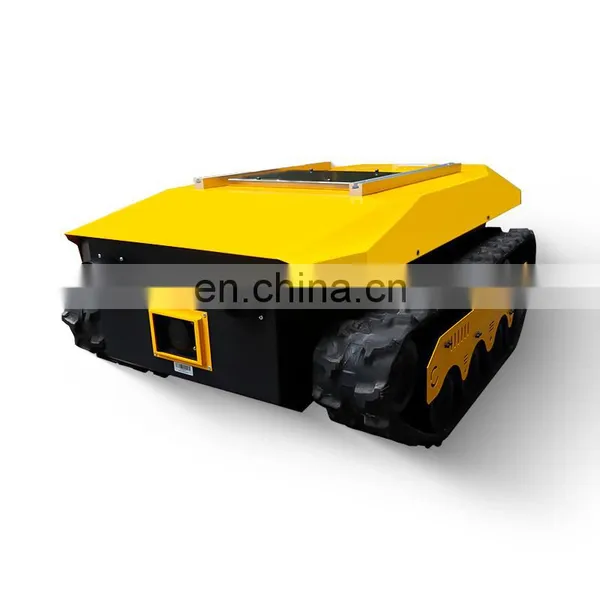

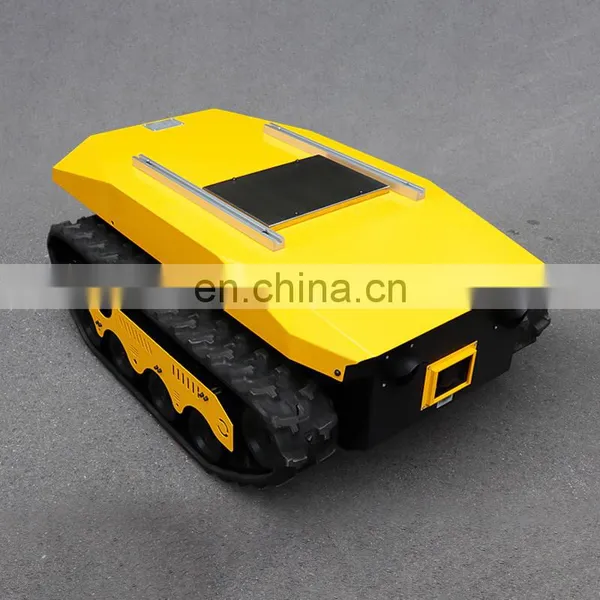

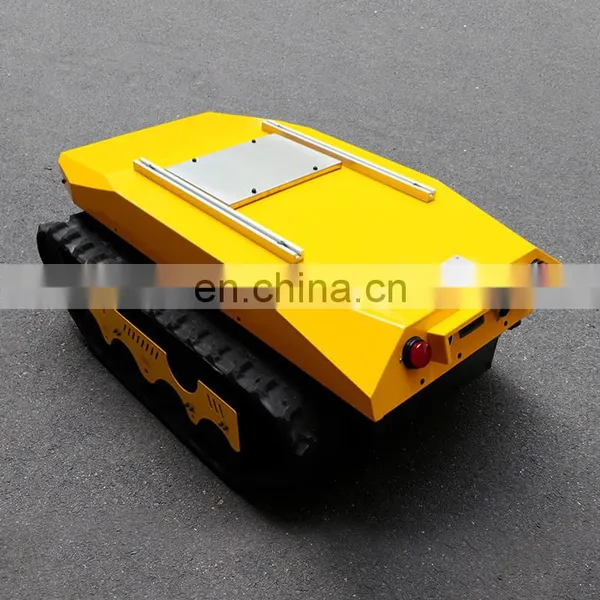

4. Detailed pictures of robot platform
5.Robot platform manufacturer information

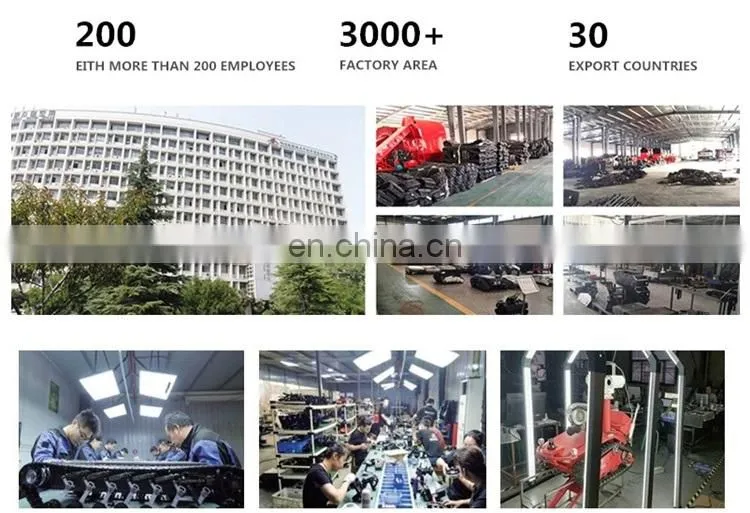

Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
