Industrial-grade lidar scanner 2D sensor redar system 360 degree lidar
Product Description

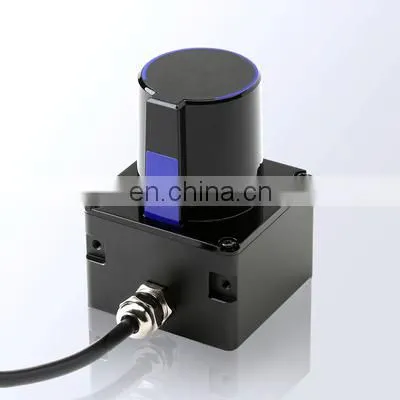

1. Industrial-grade lidar scanner
Anti-sunlight interference 30000 times/second TOF laser ranging technology IP65 protection.
2. TOF time-of-flight ranging technology
Using TOF (Time of Flight) time-of-flight ranging technology to ensure that the radar measurement accuracy will not change with distance changes. When measuring long-distance objects, the measurement accuracy is still accurate and stable.
3. Anti-sunlight, can be used indoors and outdoors
LiDAR can effectively avoid the interference of ambient light and sunlight, realize stable ranging and efficient mapping of indoor and outdoor scenes, and meet the application requirements of larger outdoor scenes.

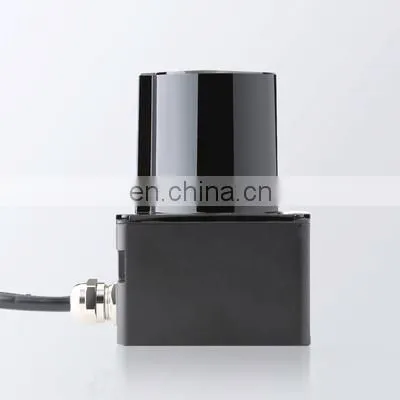

4. Fully enclosed housing

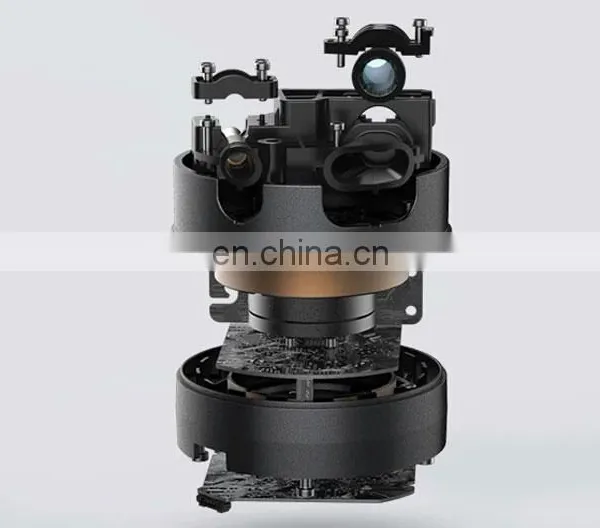

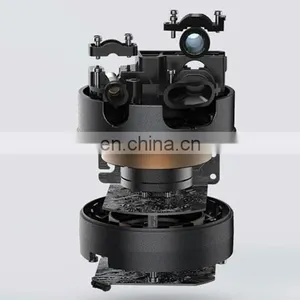

The fully enclosed outer cover can effectively protect the internal rotating mechanism, avoid external interference to the greatest extent, ensure a stable working environment, and meet diversified industrial scene applications.
5. High efficiency ranging engine
LiDAR L4 can achieve a 270° scan within a 20m radius of a 2D plane, with a sampling frequency of up to 30KHz, and accurately output the plane point cloud map information of the space where it is located, which can ensure the composition quality of the robot when moving at high speed.
6. Comply with FDA Class 1 laser safety standards
In order to fully ensure the safety of the product to the human body and pets, a low-power infrared laser transmitter is used as the emitting light source and driven by modulated pulse mode. The laser only completes the emitting action in a short time, which meets the FDA Class 1 human body protection level
7. Network port connection, breaking the distance limit
LIDAR L4 is connected through the network port. After the power is turned on and the interface box is connected to the computer/switch through the network cable, it can communicate with the laser radar. The data transmission is not limited by the distance, which expands the field of use of the product.
Product parameters
|
Measurement |
Power consumption |
<5 W / peak |
|
|
|
≥10 m (10% reflectivity) |
|
|
|
Angle resolution |
0.12°/0.18°/0.23° /0.35°/0.35° |
Scanning frequency |
10Hz/15Hz/20Hz/ 25 Hz/30 Hz |
|
Data sampling rate |
Ranging principle |
Pulse ToF |
|
|
Horizontal field of view |
270° |
Laser wavelength |
905 nm |
|
Distance resolution |
Ranging accuracy |
±2 cm 3 |
|
|
Operating temperature |
-20° to 60° |
Storage temperature |
-25° to 75° |
|
Communication Interface |
Ethernet / RJ45 |
Weight approx |
250 g |
|
Power supply |
12 V DC |
Protection grade |
IP65 |
