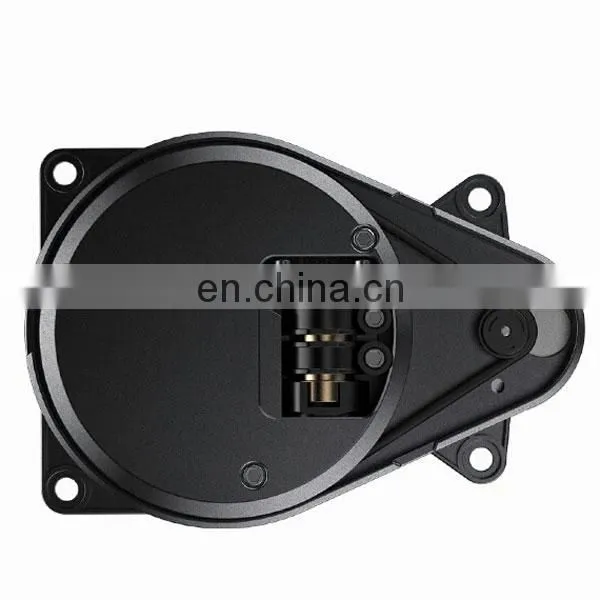

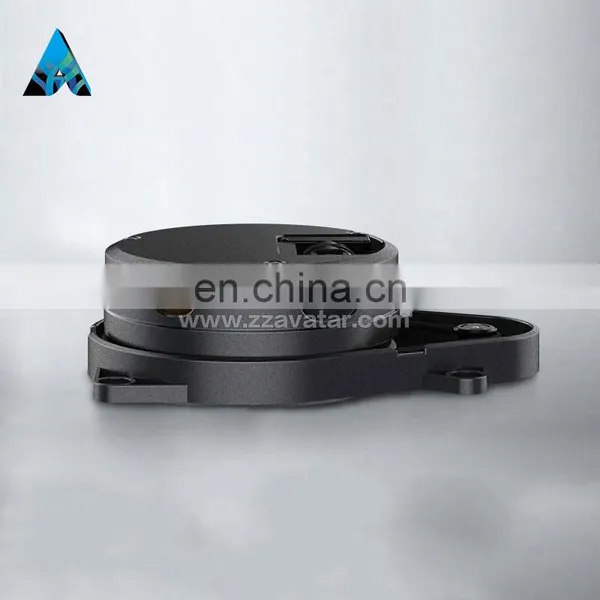

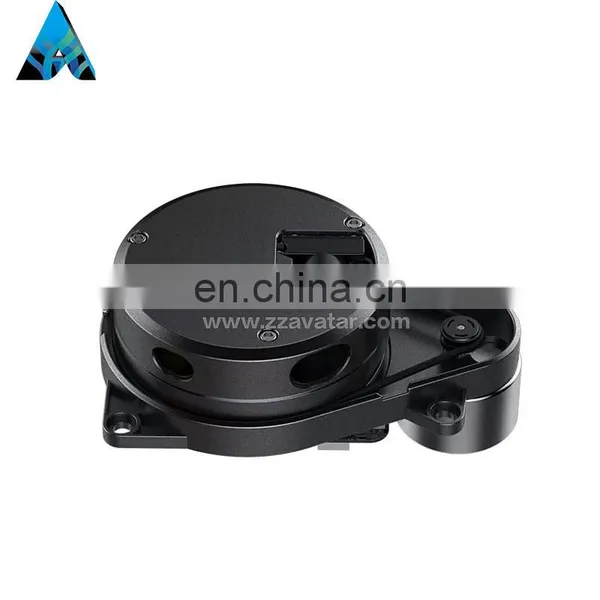

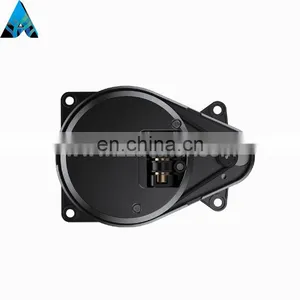

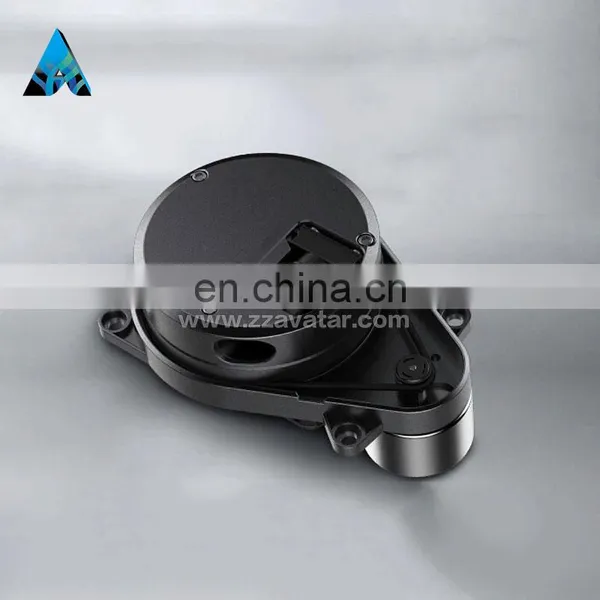

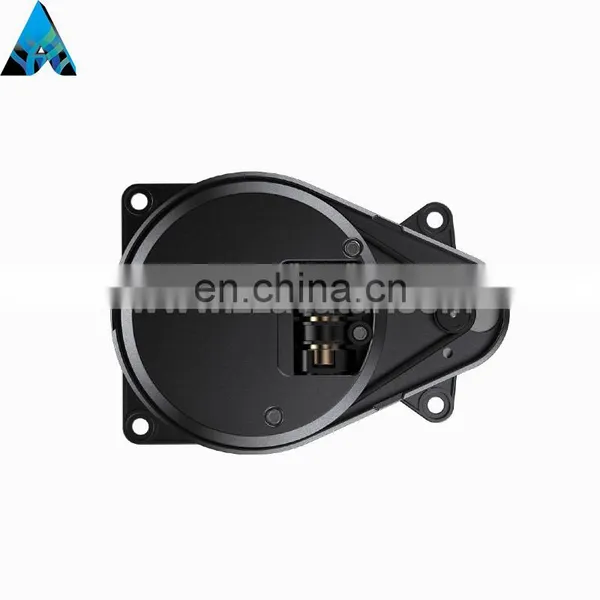

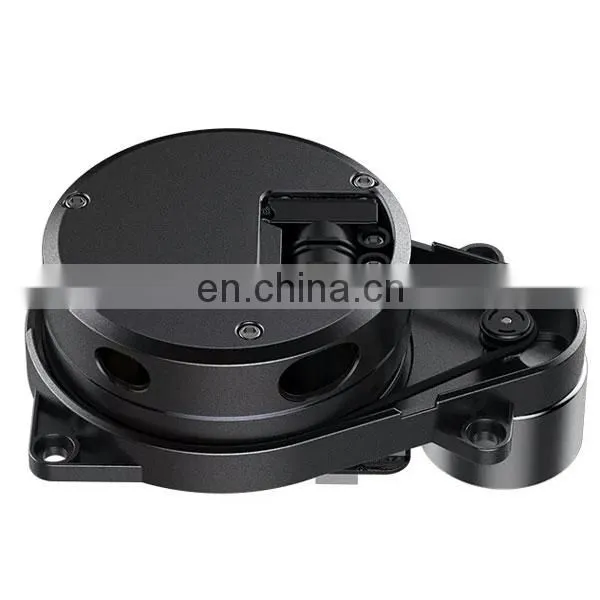

Lidar Mapping 3D Scanner Ultrasonic Sensor
Features of L2 ultrasonic sensor:
1. 360-degree omnidirectional laser scanning. The Lidar L2A range finder core will rotate clockwise to achieve a 360-degree omnidirectional scan rangefinder detection of the surrounding environment, so as to obtain the contour map of the surrounding environment.
2. Adopting laser triangulation ranging technology, it has high speed laser ranging sampling ability up to5000 times per second.
3. Industrial grade brushless motor: Long service life, low loss and low noise.
4. Easy use: After connecting to your computer via USB module, it can be used directly without any coding. Equipped with serial port and USB port, open-source SDK and tools, it can be easily integrated with ROS.
5. Commercial Use: Smart household products, cleaning robots, moving air cleaner, etc..
Parameter of L2 ultrasonic sensor:
Measurement |
0.13-8m(80% reflectance) |
Voltage |
5v |
Sampling |
2-5k/s |
Starting Current |
600mA |
Scanning Frequency |
6.2Hz |
Working Current |
400mA |
Angular Resolution |
1 |
Dimension(mm) |
|
Laser Wavelength |
780nm |
Weight |
173g |
Laser Power |
3mw |
Laser Class |
0-1 |
Accuracy |
1% |
Working Temperature |
0-45 |
Communication Interface |
UART(TTL) |
Storage Temperature |
(-20.60) |
Baud Rate |
115200bps |
Power Consumption |
1.5w |

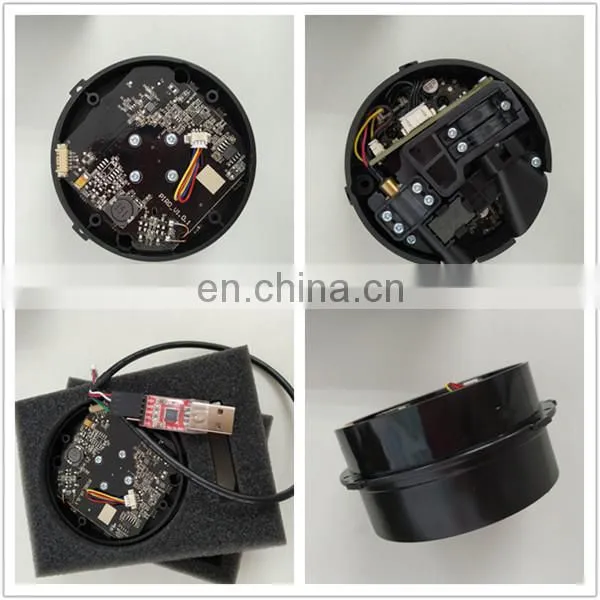

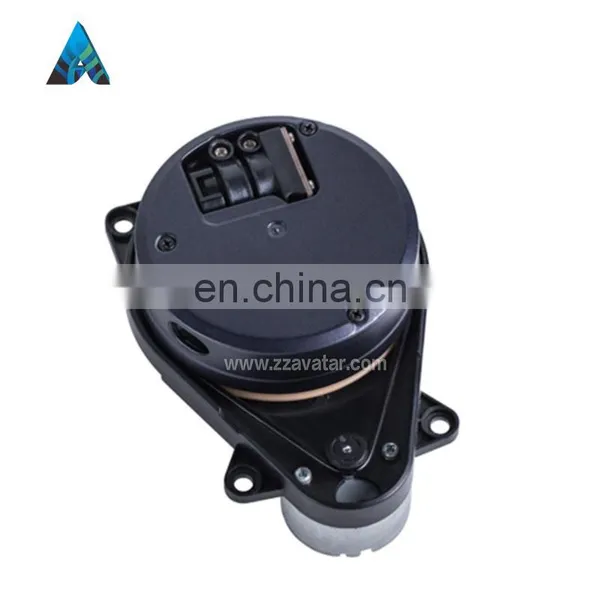

Parts of L2 ultrasonic sensor:
Our Company:
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd. is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products.
With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
After-Sales Service:
1. Warranty: one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Overseas Installation & Training: we offer overseas service if necessary. The buyer should bear traveling, housing, eating and salary cost during our technician stays there.
5. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
