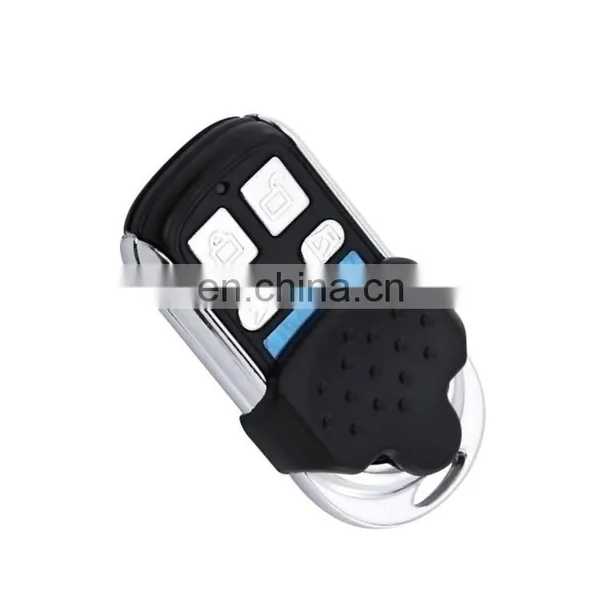

Help Center433.92MHz Copy Code Garage Door Remote Control Facing Copy Programming Wireless Remote Control
Related Products
-
433MHZ Metal 4 Button Universal Super Copy Clone Face to Face Copy Remote ControlNegotiableMOQ: 1 -
Universal Garage Door Remote Control Door Opener Electric Door Remote Control Key Remote Programmable Learning Code 433MHZNegotiableMOQ: 1
-
433.92M Learning Code New Garage Door Remote Control for Automatic Door Rolling Door and Window Remote Wireless Program ControlNegotiableMOQ: 1
-
433MHZ Metal 4 Button Wireless Copy Code Remote Control Universal Remote Control Compatible With Fixed Code ClonesNegotiableMOQ: 1
-
4 Button 433MHz Universal Garage Door Opener Security Alarm Clone Key Lock Remote ControlNegotiableMOQ: 1
433MHz Learning Code Universal Garage Door Automatic Rolling Door Doors and Windows Remote Control Wireless Copy Code Clone Pair Copy Key
|
1 |
Working voltage |
DC12V(27A) |
|
2 |
Working curren |
<=12mA |
|
3 |
working frenquency |
315MHz/433MHz/868MHz and other for optional |
|
4 |
Transmit powe |
>=10mW |
|
5 |
Transmission Speed |
50-60KHZ |
|
6 |
Frenquency Windage |
±0.2MHz |
|
7 |
Transmission distance |
100 meters(Open space) |
|
8 |
Oscillation resistance |
As customer’s request |
|
9 |
OEM & ODM |
YES |
|
10
|
Chip and Operating mode
|
Learning code(1527,2240,HT6P20B,HT6P20D etc) |
|
Fixed code (2260,2262 etc) |
||
|
Hopping code(HCS301,300,200 etc.) |
||
|
Copy code(Face to face) |
Instructions for use:

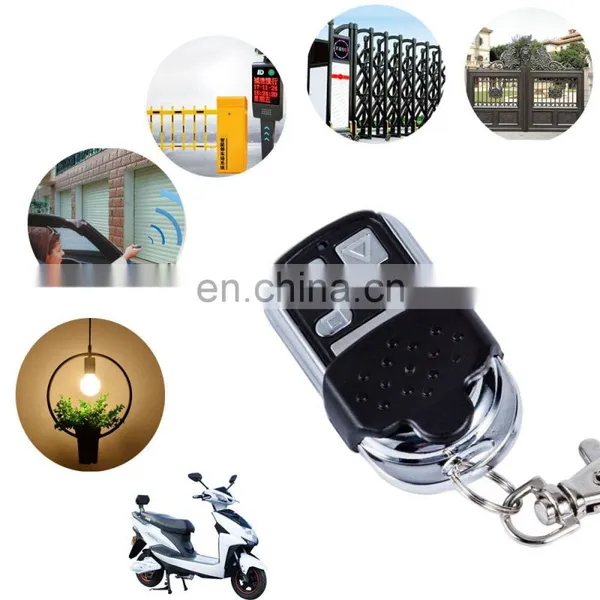

1. This remote control is not a universal remote control. It can copy remote controllers with chips such as 2264, 2262, 2260, FP527, SMC918, PT2240 EV1527, etc. Commonly used electric door remote controls, garage door remote controls, and retractable door remote controls are common copy objects , Sliding door remote control, barrier remote control 315 433 330 430 418 frequency, rolling door remote control 315 433 390 frequency, remote control used in alarm, various fixed codes, welding code pull code and learning code remote control can be copied.
2. Before matching the remote control, please confirm whether your original remote control can be used normally. In addition, it is necessary to know the transmission frequency of the remote control (that is, the value of the crystal oscillator) as shown in the figure below:
Specific operation method:
1. Clear code

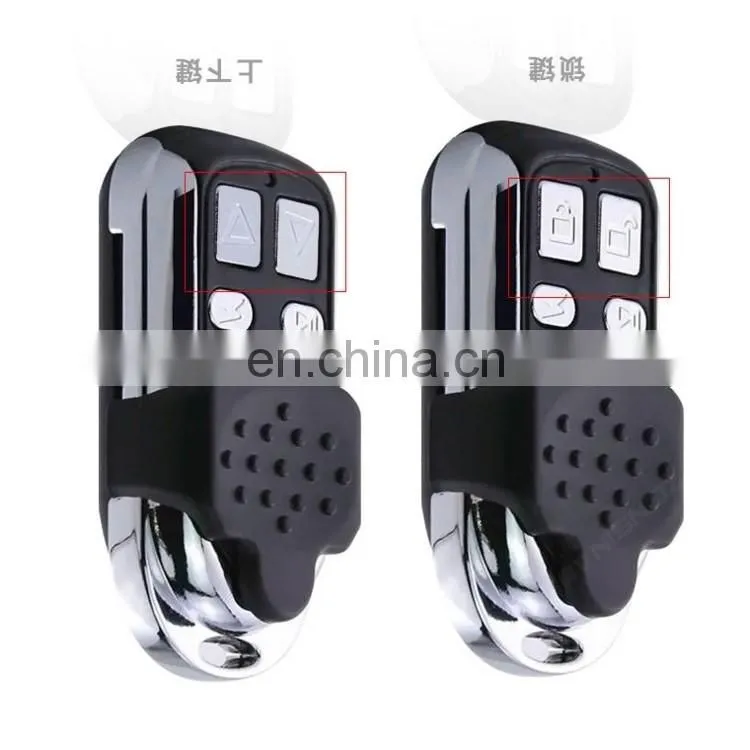

Press the two button indicators on the upper row of the remote control at the same time, and then flash quickly for about 2 seconds after flashing, which means that the clearing is successful. The way to distinguish the successful removal is to press the four buttons on the remote control at will, and the indicator light only flashes once and then goes out.
2. Copy
The original remote control and the copy remote control are placed side by side), press the two remote control door open keys at the same time, the copy remote control indicator flashes quickly to indicate that the copy is successful. Follow the same method in turn to copy the other three keys.
3. Recovery
If the useful code is cleared by mistake, you can press the two buttons on the bottom row of the remote control at the same time before copying the other remote control again. After 2 seconds, the indicator light flashes quickly and the recovery is successful.
HCS encryption chip and other encryption chip can not be copied.
2;If done correctly, can use directly. If not, or individual button not useful, please turn to clean and copy again, notice the change of light during operation. If problems still exist after attempting several times, check the chip and frequency of original remote control again, and contact us.
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder
1. Your inquiry can be replied in 12 hours.
2. All your questions can be answered by our well-trained and experienced staff in English.
3. Any your customized products we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Delivery by DHL, UPS, EMS or by sea as your requirements.
1. Could I order one piece for sample to test the quality?
A: Yes, You could order the sample before your order. We recommend to check the sample before order, to make sure you will get the indeed product that you need.
2. What time can you deliver my order?
Samples in 5-7 working days, bulk order in 7-15 working days after payment.
3. What's your best price?
We make different models and different chip, please advise detailed parameters for goods that you need.
4. Do you have gurantee for my order?
Remote control and receiver gurantee for 1 year
