Simple Structure Magnetic Flap Liquid Meter Working Stably

Name: Simple Structure Magnetic Flap Liquid Meter Working Stably
Brand: NUOYINGJIAYE
SKU: 171451817

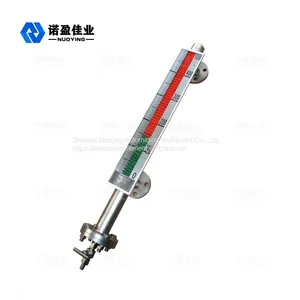

Simple Structure Magnetic Flap Liquid Meter Working Stably thumbnail-1

Simple Structure Magnetic Flap Liquid Meter Working Stably thumbnail-2

Simple Structure Magnetic Flap Liquid Meter Working Stably photo-1

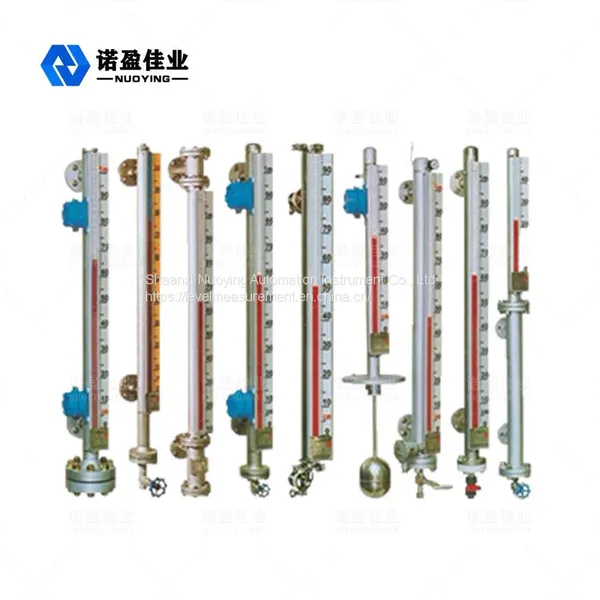

Simple Structure Magnetic Flap Liquid Meter Working Stably photo-2

US$ 500 - 800 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

NUOYINGJIAYE

Place of Origin:

China

Model Number:

NYUHZ

Contact Supplier Request Quote Chat Now

Shaanxi Nuoying Automation Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an or Tianjin

Delivery Detail:

8 days

Product Details
Company Profile
Contact Us

Brand Name NUOYINGJIAYE

Place of Origin China

Model Number NYUHZ

Magnetic Flap Liquid Level Meter Simple Structure Easy To Read Working Stably

Simple And Firm Structure Working Stably Magnetic Flap Liquid Level Meter Operating Principle

Magnetic Flap Liquid Level Meter can be applied in liquid level measurement of tower, tank, slot, spherical vessel, boiler and other containers. It’s designed to be high sealing performance and anti-leaking. It is suitable for the occasions of high temperature, high pressure and strong corrosion resistance.

Magnetic Flap Liquid Level Meter has two main parts, a cavity with a floating ball called measuring tube or main tube, and a indicating panel. The cavity is connected with medium tank through flanges or other suitable connection types. So the floating ball indicating medium level in the measuring tube will go up and down along with the level in the tank. The floating ball has a permanent magnet which will attract the corresponding magnetic colored flaps to turn over. Then the actual value of medium level will be shown clearly in the indicating panel, people can read easily .

Magnetic Flap Liquid Meter Product Feature

Simple and firm structure, Working Stably
Clear display, easy to read
Measurement application for corrosion, explosion, poison, high temperature, stir and pollution liquid level condition
Multiple installation and connection types optional
Disigned pressure range from vacuum to 10 Mpa
Disigned teperature range from -160°C ~ +450°C
Customized upon special requirement

Typical Application	Liquid
Product Model	NYUHZ
Installation Method	Side-Mounted, Top-Mounted
Measuring Range	0~6m(Single Set)
Process Pressure	-0.1~16Mpa
Measuring Accuracy	-/+3mm, -/+5mm, -/+10mm(optional)
Process Temperature	-40°C~+450°C
Connection	Flange
Supply Power	24VDC
Signal Output	4-20 mA /HART/RS485/Modbus...
Protection Grade	IP65, IP67, IP68 (optional)
Explosion-proof Grade	Exia II CT6 Ga, Exd II CT6 Gb (details in certificate)
