Product introduction

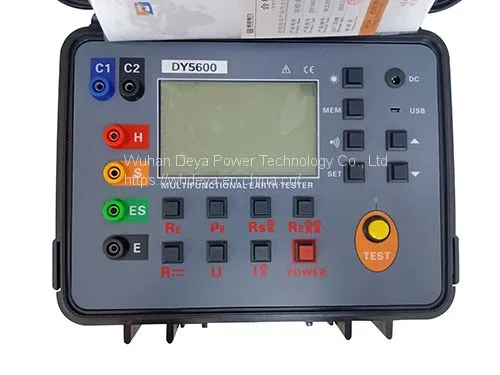

DY5600 double clamp multi-functional grounding resistance tester is also called double clamp grounding resistance tester. It is an advanced grounding resistance tester integrating multiple measurement methods. In addition to the function of traditional auxiliary grounding electrode to measure the grounding resistance, the instrument also has the unique function of non auxiliary grounding electrode measurement. It adopts the super large LCD gray white screen backlight display and microprocessor technology, and measures the grounding resistance through the microprocessor controlled precision 4-wire method, 3-wire method and simple 2-wire method, selection method and double clamp method. Large diameter current clamp design and double jaw measurement technology are adopted to realize online measurement without setting auxiliary grounding electrode and isolating grounding body from equipment. It is widely used in telecommunications, electricity, meteorology, machine rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods, etc. The instrument is characterized by accurate, fast, simple, stable and reliable testing.
DY5600 double clamp multi-function grounding resistance tester is controlled by a microprocessor, which can accurately detect grounding resistance, soil resistivity, grounding voltage, DC resistance and AC current. It uses fast filtering technology to minimize interference. The resistance value of the auxiliary electrode is displayed on the same screen, which is convenient for judging the measurement error caused by environmental factors and more accurate measurement of the real grounding resistance. At the same time, 500 groups of data can be stored, which can be monitored online through monitoring software. USB data can be uploaded to PC, and has unique functions such as value maintenance and intelligent alarm prompt.

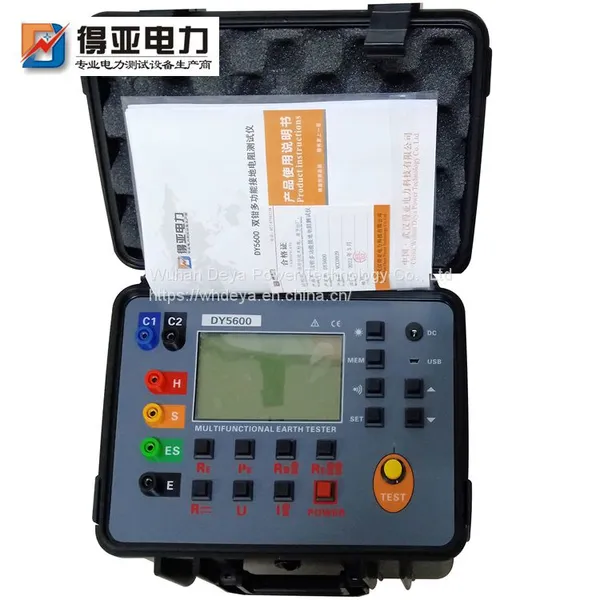

The dual clamp multi-function grounding resistance tester is composed of host, monitoring software, test line, USB line and grounding pin, and has the functions of reading, viewing, saving, reporting, printing historical data.
