ABB GBU72 3BHE055094R0002 Grid Breaker Unit

ABB GBU72 3BHE055094R0002 Grid Breaker Unit thumbnail-1
ABB GBU72 3BHE055094R0002 Grid Breaker Unit thumbnail-2
ABB GBU72 3BHE055094R0002 Grid Breaker Unit thumbnail-3

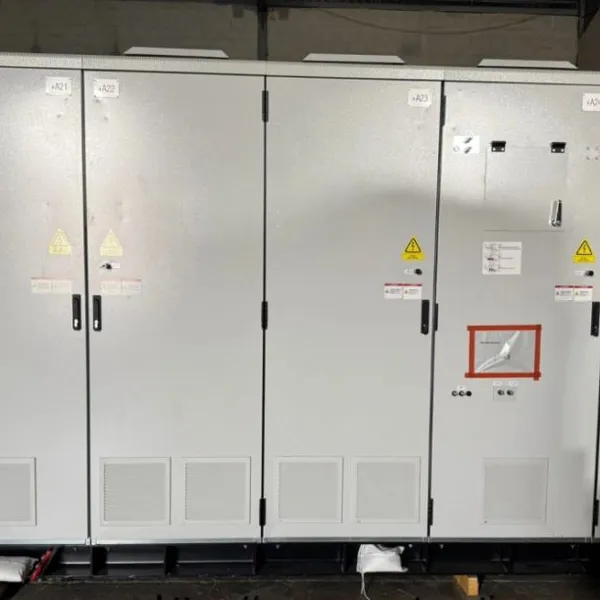

ABB GBU72 3BHE055094R0002 Grid Breaker Unit photo-1

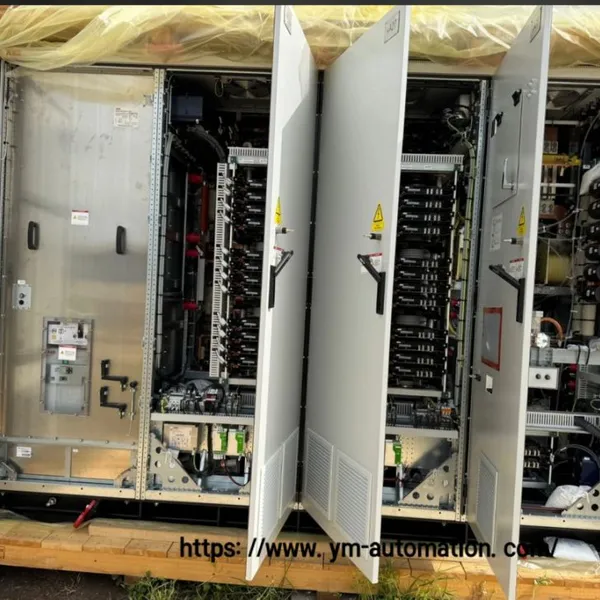

ABB GBU72 3BHE055094R0002 Grid Breaker Unit photo-2

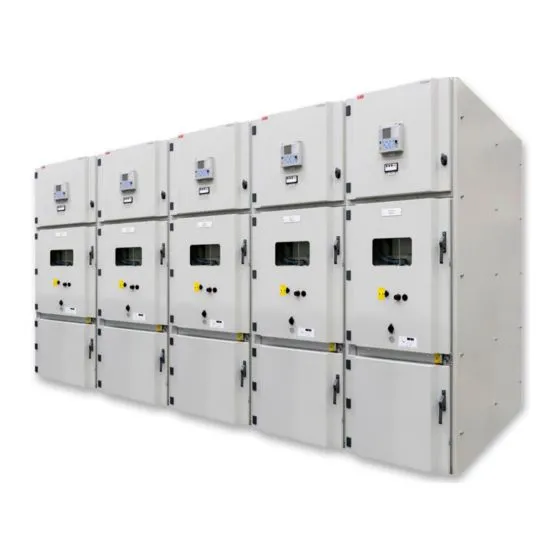

ABB GBU72 3BHE055094R0002 Grid Breaker Unit photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
General Purpose
Structure:
Other
Electrolyte:
Other
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application General Purpose
Structure Other
Electrolyte Other
Manufacturing Material Other
Tuning Other
Filter Other
Packaging Type Other
Capacitance Other

Exclusive parameters for ABB GBU72 3BHE055094R0002 cabinet:

  1. Rated insulation voltage: 1000VAC

  2. Rated operating voltage: 690VAC

  3. Rated impulse withstand voltage: 12KV

  4. Overvoltage category: IV

  5. Pollution degree: 3

  6. Rated operating frequency: 50/60HZ

  7. Maximum rated current of main busbar: Up to 6300A

  8. Rated peak withstand current: Approximately 220KA

  9. Rated short-time withstand current (KA effective value/1S): Approximately 100KA

  10. Maximum rated current of distribution busbar: Approximately 2000A for drawer cabinets, approximately 3200A for fixed partition cabinets

  11. Rated peak withstand current of distribution busbar: Approximately 176KA for drawer cabinets

  12. Rated short-time withstand current of distribution busbar (KA effective value/1S): Approximately 80KA for drawer cabinets

  13. Distribution busbar form: Special-shaped/rectangular copper bars

  14. Grounding system: TT, IT, TNS, TNC

  15. Standard total height: Recommended 2200mm

  16. Recommended width: 400mm, 600mm, 800mm, 1000mm, 1200mm

  17. Recommended depth: 600mm, 800mm, 1000mm, 1200mm

  18. Internal separation type (in accordance with IEC60439): Up to FORM4

    Frequently asked questions

    1. Question: Is your item new or original?
      Answer: Yes, we sell brand new original products.

    2. Question: Is there any inventory available?
      Answer: We have a large warehouse with sufficient inventory of goods to ensure fast delivery.

    3. Can you offer a discount?
      Answer: Yes, if your order quantity is large, we can offer a discounted price.

    4. Question: What is your delivery time?
      Answer: Due to our sufficient inventory, you can usually receive your order within 3-5 working days.

    5. Question: Do you test the product before shipping?
      Answer: Yes, we have a professional technical team that will conduct strict testing on all products before shipment to ensure product quality.

    6. Question: If I order a large quantity of goods, can I pay a deposit first?
      Answer: Yes, you can pay the deposit first, and we will arrange the warehouse to stock up for you immediately after receiving your deposit.

    7. Question: Can I get a discount?
      Answer: The price of the product is negotiable, and we can provide you with the most favorable price based on the quantity of your order.

    8. Question: How much should I pay for the shipping fee?
      Answer: The shipping cost depends on the weight of the goods, the courier company you choose, and the delivery destination.

    9. Question: How to contact customer service?
      Answer: You can contact our customer service team through email, phone, or online chat.


Product Tags: ABB GBU72 , 3BHE055094R0002 , Grid Breaker Unit
