Help CenterAutomotive Li-battery Thermal Runaway Sensor Laser Scattering Technology
Related Products
-
NDIR Automotive Li-battery Thermal Runaway Sensor PM CO2 CO HC H2NegotiableMOQ: 1 Piece -
Automotive Li-battery Thermal Runaway Sensor Warning for EV Battery LeakageNegotiableMOQ: 1 Piece
-
Li-battery Thermal Runaway Detection Integrated Sensor ATRS-1012NegotiableMOQ: 1 Piece
-
Gas Leakage Detection MEMS Thermal Conductivity Hydrogen Sensor ATRS-1016-CNegotiableMOQ: 1 Piece
-
Li-Battery Electrolyte Leakage Monitoring Sensor ATRS-1050NegotiableMOQ: 1 Piece
Introduction

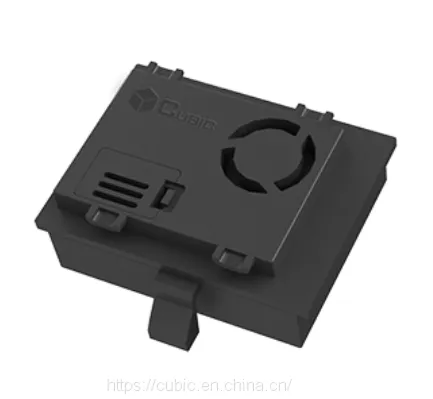

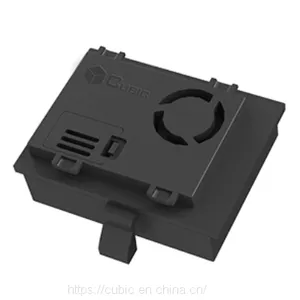

APMS-3002 is a laser particle sensor module for automobiles. It is suitable for the internal environment of automobiles. The sensor can accurately measure the concentration of particulate matter through mathematical algorithms and scientific calibration, and transmit the measurement signal to the master node through CAN communication. APMS-3002 sensor has remarkable characteristics such as accurate measurement, fast response time, less cross-interference, low power consumption and long life.
Features
1.Laser scattering (LSD) technology to achieve wide range measurement
2.Reliable warning for li-ion battery thermal runaway
3.Mature car-level circuit design no cross interference, stable perfomance
4.High temperature laser module, constant power output
5.CAN real-time communication
6.Key components are self-made to ensure quality and long life span
7.Low power consumption mode available
Specifications
Operating principle: LSD(Laser Scattering) technology
Measurement target: PM2.5 (particulate matters)
Measurement range: 0~10000μg/m³
Measurement particle size: ＞0.3μm
Resolution: 1μg/m³
Accuracy: ≤35μg/m³ : ±5μg/m³; ＞35μg/m³ : ±15% of reading
Working temperature: -40~+85℃,0-95%RH (non-condensing)
Response time: T90≤10s
Storage temperature: -40~+95℃,0-95%RH (non-condensing)
Working current: Normal working mode(continuous measurement)≤100mA @12V
Low power consumption mode(intermittent measurement)≤50mA @12V
Power supply: 9~16 VDC, standard voltage: 12 VDC
Standby current: ≤100μA (Sleep Mode)
Communication: CAN
Dimension: 60*57*31 (mm)
IP rating: IP52
