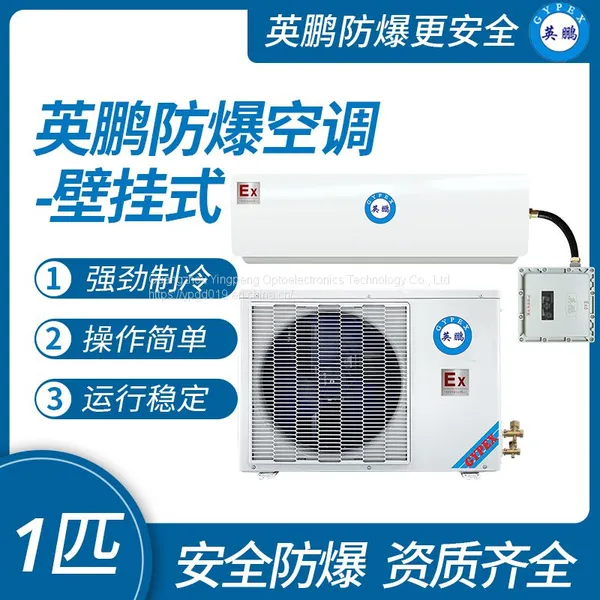

Help CenterGuangzhou Yingpeng Explosion-proof Air Conditioning Wall Mounted 1 Piece
Related Products
-
Guangzhou Yingpeng Explosion-proof Air Conditioning Wall Mounted 2 PieceNegotiableMOQ: 1 Case -
Guangzhou Yingpeng Explosion-proof Air Conditioning Wall Mounted 3 PieceNegotiableMOQ: 1 Case
-
Yingpeng Explosion-proof Explosion-proof Air Energy Water Heater 7 PiecesNegotiableMOQ: 1 Case
-
Guangzhou Yingpeng Explosion-proof Air Energy Water Unit 7 PiecesNegotiableMOQ: 1 Case
-
Guangzhou Yingpeng Explosion-proof Air Energy Water Unit 10 PiecesNegotiableMOQ: 1 Case
Technical parameters:
Brand: Yingpeng GYPEX
Model: BKFR-2.6
Number of horses: 1
Function: Hanging cooling and heating
Rated voltage: 220V
Rated frequency: 50Hz
Rated power for refrigeration/heating: 789w
Maximum input power: 1080
Refrigeration (heating) capacity: 2.6/2.88kw
Circulating air volume: 560m3/h
Waterproof grade: IP54
Noise (indoor/outdoor): 38.5/49dB
Net weight (indoor/outdoor): 25/31kg
Indoor unit size (width, height, depth, mm): 776 * 268 * 186
Outdoor unit size (width, height, depth, mm): 776 * 540 * 320
Explosion proof sign: ExdbibmbIIBT4Gb/ExdibmbIICT4Gb
Yingpeng explosion-proof air conditioning series brand Yingpeng Yingpeng Yingpeng Yingpeng
Model BKFR-2.6 BFKT-3.5 BFKT-5.0 BKFR-7.5
Specification: 1 piece, 1.5 pieces, 2 pieces, 3 pieces
Functional hanging type heating and cooling/single cooling hanging type heating and cooling/single cooling hanging type heating and cooling/single cooling hanging type heating and cooling/single cooling
Voltage 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Refrigeration/heating current 3.6A 5.9A 9.6/9.8A 10.4A
Refrigeration/heating power 789W 1.48KW 2/2.1Kw 2.2KW
Refrigeration/heating capacity 2.6/2.88kw 3.5kw 5kw 7.5 (8.3) kw
Circulating air volume 560m3/h 550ml/h 650m3/h 1200m3/h
Waterproof grade IPX4 IPX4 IPX4 IPX4
Noise (indoor/outdoor) 38.5/49dB 38/51dB 41/56dB ≤ 49/≤ 56dB
Net weight (indoor/outdoor) 25/31kg 31/59kg 38/65kg 40/70kg
Indoor unit size (width, height, depth, mm) 776 * 268 * 186 780 * 270 * 200 890 * 290 * 200 1020 * 320 * 220
Outdoor unit size (width, height, depth, mm) 776 * 540 * 320 870 * 340 * 580 800 * 300 * 570 970 * 380 * 660
Explosion proof grade ExdibmbIIBT4Gb/ExdibmbIICT4Gb
Additional features:
Yingpeng explosion-proof air conditioners can be customized with the following additional functions according to customer requirements.
1. Power off memory and automatic start upon incoming call.
2. Remote control.
3. Anticorrosive function.
4. Explosion proof level: ExdibmbIICT4Gb
5. Dust explosion-proof: ExtDibDmbA21IP65T130 ℃
The execution standards for this series of products are as follows:
GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment
GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"
GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"
JB/10538-2005 "Explosion proof dehumidifiers and air conditioners"
Applicable scope:
a. The altitude does not exceed 2000m;
b. Applicable environment: temperature between 5 ℃ and 38 ℃, without corrosive gases;
c. There are explosive hazardous areas with Class IIA and IIB, T1 to T4 combustible gases, vapors, and air mixed together.
Explosion-proof air conditioners [1 horsepower, 1.5 horsepower, 2 horsepower, 3 horsepower, 5 horsepower] Factory direct sales [cabinet mounted machines, wall mounted machines] Welcome new and old customers to consult and negotiate
