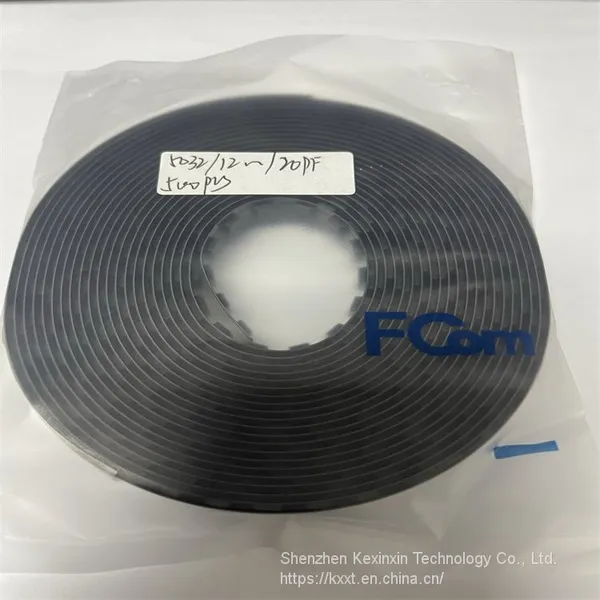

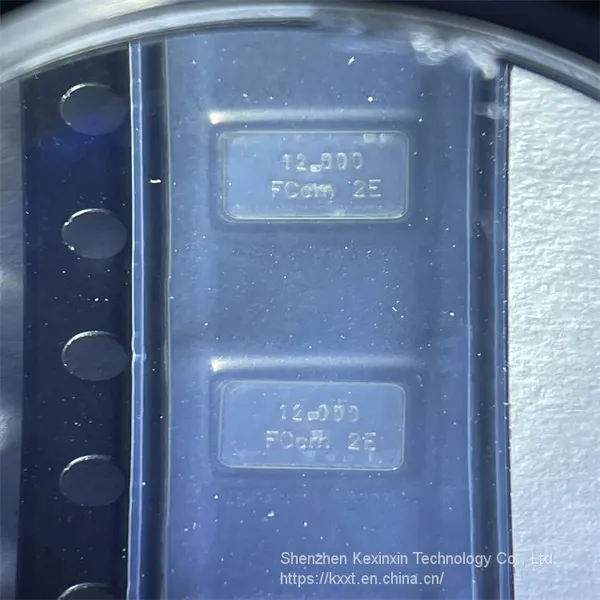

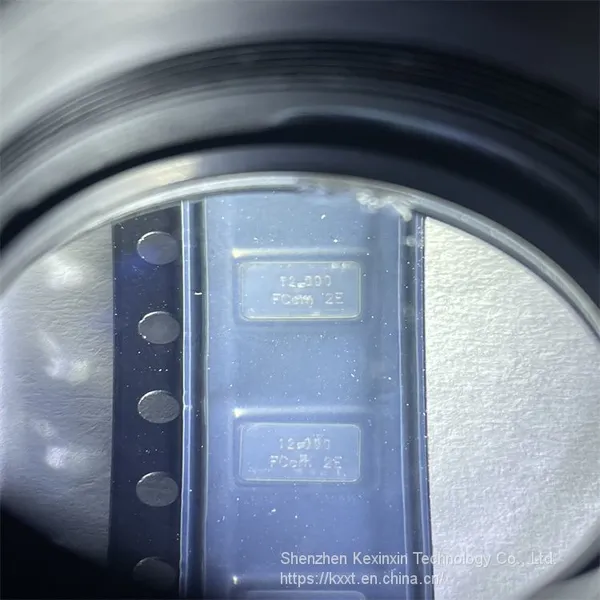

FSX-5M
small size smd crystal units
High-density mounting possible and suitable for the various such as mobile communications, computers and multimedia etc.
main applications:
telecommunication equipment
gps/ portable phone, gsm, phs, pcs, dect, tetra, gps
PCMCIA
Features:
Small and low profile
Seam welding ceramic package lead less type.
Reflow available
Pb free, Rohs compliant
Specification :
Item: fsx-5m
Frequency 12-50mhz
Oscillation mode: AT cut, Fundamental
Frequency tolerance: ±30ppm-±50ppm at 25℃
Temperature tolerance： ±30ppm-±50ppm(-10℃~+70 Ref. To 25℃)
Equivalent series resistance: Fundamental: 60Ω max.
Shunt capacitance: 7pf max.
Load capacitance: 18pf*standard)
Drive level: 10-100μw
Aging f/f: 5ppm max. (25℃± 3℃) (First year)
Specifications which are different from those above may be acceptable.
Dimensions(mm)
Width: 5.0±0.15 ; Height 3.2±0.15
Thickness: 0.7 max. ± 0.1
"FSX-5M 18.432MHZ 20PF20PPM -40+125"
PRICE: 0.2
