1、 Product parameters
Specification 1
Brand: Yingpeng GYPEX
Model: EXBZ-900-300/32ML
Power supply voltage (V/Hz): 220/50
Power (w): 180
Solid ink wheel size (mm): 35 × thirty-two
Printing speed (pcs/min): ≤ 300
Applicable print size (mm): L: 50-500 W: 30-190
Number of printing lines: T-type (10.5PT): 11 lines (10 words per line) R-type (10.5PT): 8 lines (8 words per line)
Imprinting position (mm): adjustable from 60 to 250 on one side
Font size: (mm2 × 1.5(8PT) 2 × 2.5(9PT) 3 × 3(10.5PT) 4 × 2.5(18PT))
External dimensions (L × W × H)(mm):440 × three hundred and forty-five × three hundred
Explosion proof sign: Ex d e ib mb II B T4 Gb
Specification 2
Brand: Yingpeng GYPEX
Model: EXBZ-900-300/16ML
Power supply voltage (V/Hz): 220/50
Power (w): 180
Solid ink wheel size (mm): 35 × sixteen
Printing speed (pcs/min): ≤ 300
Applicable print size (mm): L: 50-500 W: 30-300
Number of printing lines: T-type (10.5PT): 11 lines (10 words per line) R-type (10.5PT): 8 lines (8 words per line)
Imprinting position (mm): adjustable from 60 to 250 on one side
Font size: (mm2 × 1.5(8PT) 2 × 2.5(9PT) 3 × 3(10.5PT) 4 × 2.5(18PT))
External dimensions (L × W × H)(mm):440 × four hundred and sixty-five × three hundred
Explosion proof sign: Ex d e ib mb II B T4 Gb
2、 Product Overview

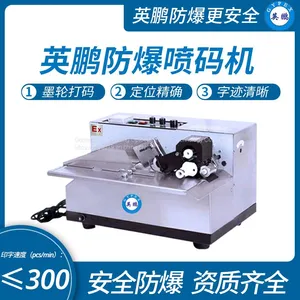

The explosion-proof fast solid ink wheel printing machine adopts a cantilever shaft type, photoelectric control system, and ink wheel oil system, ensuring accurate printing positioning, clear handwriting, fast drying, less exploration, and no ink pollution. It should be suitable for automatic sorting and printing of stacked labels, paper boxes, plastic bags, paper, label paper, aluminum foil, and other sheet materials in pharmaceutical, food and cosmetics, chemical, salt, and other industries. The production date, expiration date, weight, quantity, price, and other labeling content should be marked.
1. The printing quantity can be set as needed.
2. The printing speed varies depending on the length of the printed object, with a maximum speed of up to 300 times per minute.
3. Printing is accurate, reliable, and the location can be determined at will.
4. R type and T type printing heads can be freely selected from the right.
3、 Manufacturing standards for this series of equipment:
Explosion proof packaging machine products are only allowed to enter the market if they meet relevant national explosion-proof standards. The national standards for explosion-proof products are as follows:;
GB 3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment
GB 3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
GB 3836.3-2010 Explosive Atmospheres - Part 3: Equipment Protected by Increased Safety "e"
GB 3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"
GB 3836.9-2014 Explosive Atmospheres - Part 9: Equipment Protected by Encapsulated "m"
