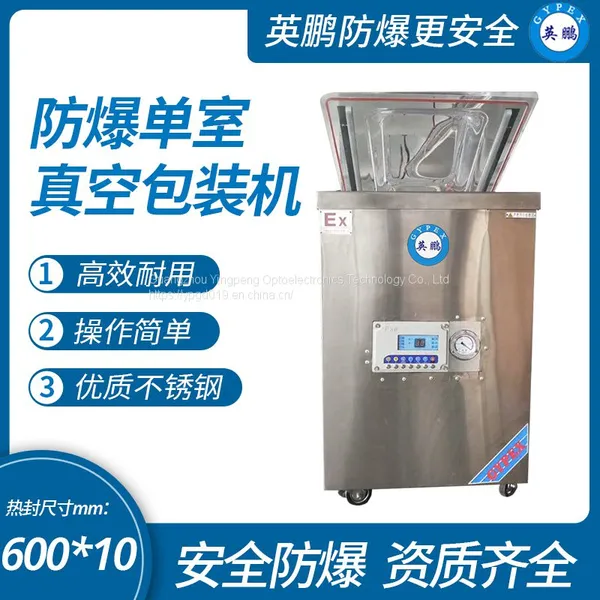

Help CenterGuangzhou Yingpeng Explosion-proof Vacuum Sealing Machine, Industrial Explosion-proof Inclined Packaging Machine
Related Products
-
Guangzhou Yingpeng Explosion-proof Table Scale, Yunnan Pharmaceutical Factory Explosion-proof Electronic ScaleNegotiableMOQ: 1 Box -
Guangzhou Yingpeng High-precision Explosion-proof Electronic Balance, YPEX-30/100 (M)NegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Chemical Factory Large Explosion Proof Sealing Machine, Yingpeng Explosion Proof Packaging Machine SeriesNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Special Gas Explosion Proof Floor Scale, YPEX-600/15 (YD) 3TNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Beverage Factory Fully Automatic Capping Machine, Food Processing Assembly Line Packaging MachineNegotiableMOQ: 1 Box
1、 Technical parameters
Brand: Yingpeng GYPEX
Category: Explosion proof inclined vacuum packaging machine
Model: EXBZ-800-500KXL
Power supply (V/HZ): 380/50
Vacuum pump motor power (W): 750 * 2
Heat sealing power (W): 600
Vacuum pump displacement (m ³/ h）：40
Sealing length (mm): ≤ 500
Sealing width (mm): 10
Tilt angle of heat sealing head (°): 0-90 °
Packaging speed (time/min): 1-3
Vacuum chamber size (mm): 620 × six hundred × one hundred
Overall dimensions (L * W * H) (mm): 1200 × seven hundred × nine hundred and sixty
Explosion proof sign: Ex d e ib mb II B T4 Gb
Brand: Yingpeng GYPEX
Category: Explosion proof inclined vacuum packaging machine
Model: EXBZ-800-600KXL
Power supply (V/HZ): 380/50
Vacuum pump motor power (W): 750 * 3
Heat sealing power (W): 600
Vacuum pump displacement (m ³/ h）：60
Sealing length (mm): ≤ 600
Sealing width (mm): 10
Tilt angle of heat sealing head (°): 0-90 °
Packaging speed (time/min): 1-2
Vacuum chamber size (mm): 710 × six hundred and fifty × one hundred
Overall dimensions (L * W * H) (mm): 1400 × six hundred and sixty × nine hundred and seventy
Explosion proof sign: Ex d e ib mb II B T4 Gb
2、 Product Overview
The Yingpeng explosion-proof packaging machine can be widely used for packaging, sealing, and storage of flammable and explosive materials in fields such as chemical, pharmaceutical, pharmaceutical, civil explosives, laboratory aerospace, and aviation. It can be used in environments with strong gas mixtures of Class IIA to IIB and with temperature control requirements.
Environmental conditions for product use:
1. Environmental temperature: -20 ℃~+40 ℃
2. Relative humidity: 90% (25 ℃)
3. Altitude: 1500m
4. There are slight corrosive places
5. Places with strong combustible gas mixtures in IIA and IIB temperature groups T1 to T2
3、 Product execution standards:
Explosion proof packaging machine products are only allowed to enter the market if they meet relevant national explosion-proof standards. The national standards for explosion-proof products are as follows:;
GB 3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment
GB 3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
GB 3836.3-2010 Explosive Atmospheres - Part 3: Equipment Protected by Increased Safety "e"
GB 3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"
GB 3836.9-2014 Explosive Atmospheres - Part 9: Equipment Protected by Encapsulated "m"
