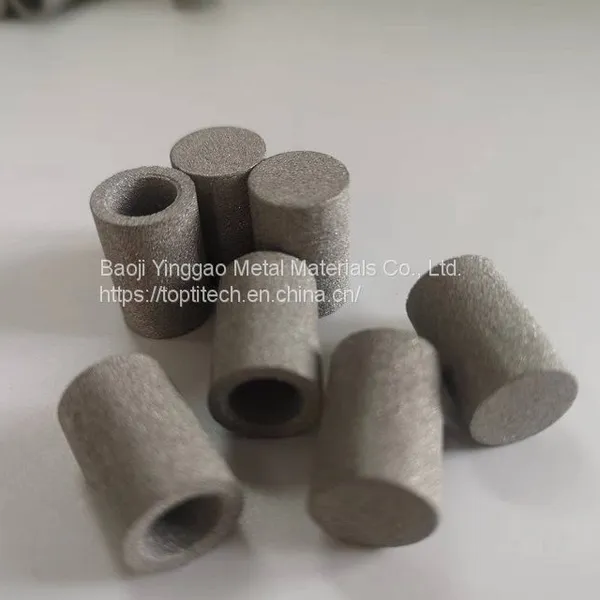

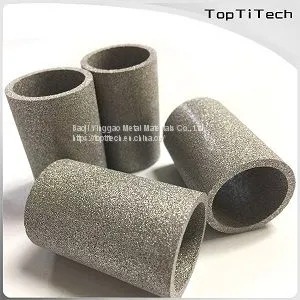

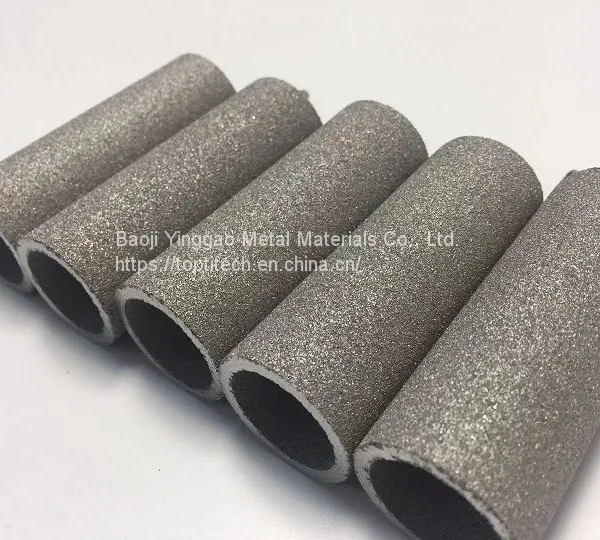

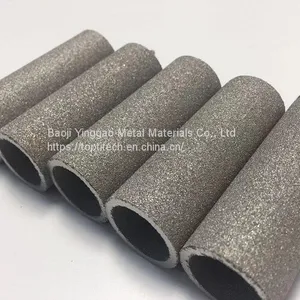

Sintered 5 Microns Porous Stainless Steel Filter
Sintered porous stainless steel filter is a type of filter made from stainless steel powder that has been sintered, or fused together, to form a porous structure. The process of sintering involves heating the stainless steel powder to a high temperature, just below its melting point, to fuse the particles together without completely melting them.
The pore size and distribution of sintered porous stainless steel filters can be controlled during the manufacturing process. This enables filters to be tailored for specific applications, such as filtering out large particles or removing smaller contaminants.
Sintered porous stainless steel filters are made from high-quality stainless steel powder that is sintered together to create a strong and durable material. They can withstand high pressures, high temperatures, and harsh chemical environments.
Parameters
Place of origin：Baoji, China
Brand：TOPTITECH
Filtration precision:0.2um-100um
Material：SS 316L, SS304
Working temperature：≤ 600℃
Length: 50-1000mm(More than 1000mm can be welded)
Diameter: 4-500mm
Wall Thickness: 1-5mm
Connector：
1. DOE (Double open)
2. 220
3. 222
4. 226
5. Threaded connector
6. Flange connector
7. Tie rod connector
8. Customized Connector
Features
1. High corrosion resistance,
2. Good permeability.
3. High rigidity.
4. Easy to wash and backwash.
5. High precision.
6. Clean filter material
7. Fast wire net without migration.
Applications for porous stainless steel tube
1. Catalyst filtration;
2. Filtration liquids and gases;
4. Filtration in food and beverage;
5. Boiling vaporized bed;
6. Fire retardant;
7. Balance and dampen airflow;
8. Sensor protection;
10. Fly ash treatment;
