Li-MAX Lithium Iron Battery Pack for Lead-Acid Battery Replacement Solar Cell
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Quance
Place of Origin:
China
Application:
Home
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Lithium Iron Battery 51.2V LiFe PO4 Wall MountedUS$ 1 - 100MOQ: 1 Piece -
DUAL OUTPUT MAX 7.2KW 8.2KW 10.2KW SOLAR INVERTER WITH TOUCHABLE LCDUS$ 1 - 1000MOQ: 1 Piece
-
NM II PLUS SERIES 3.5KW 24V 5.5KW 48V OFF GRID PV SOLAR INVERTER CHINA MANUFACTURE PURE SINE WAVEUS$ 1 - 100MOQ: 1 Piece
-
New Energy Vehicle Power Bank NEV Power Box Solar NEV Charger SupplyNegotiableMOQ: 1 Piece
-
Leixin New-Energy Powder Coating Line Insulation Anti-Aging Equipment For Energy-Storage Cabinet Metal Shell PartsNegotiableMOQ: 1 Unit
Brand Name
Quance
Place of Origin
China
Application
Home
Specification
Normal
Work Time (h)
1.28-2.56

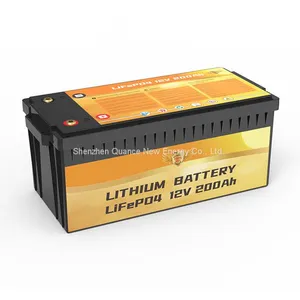

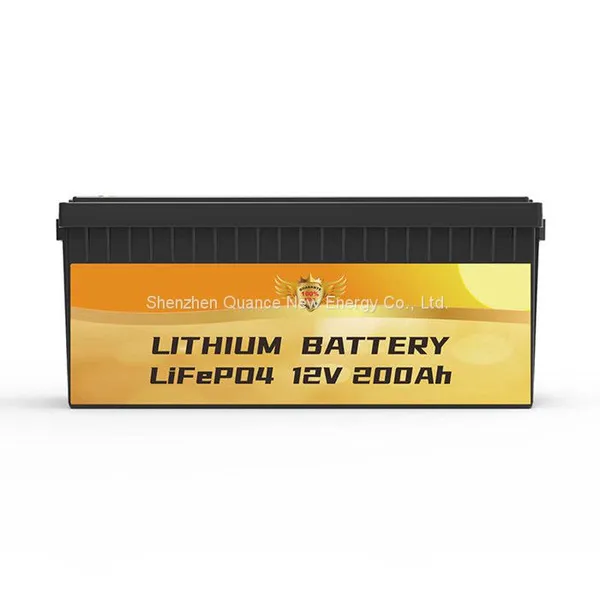

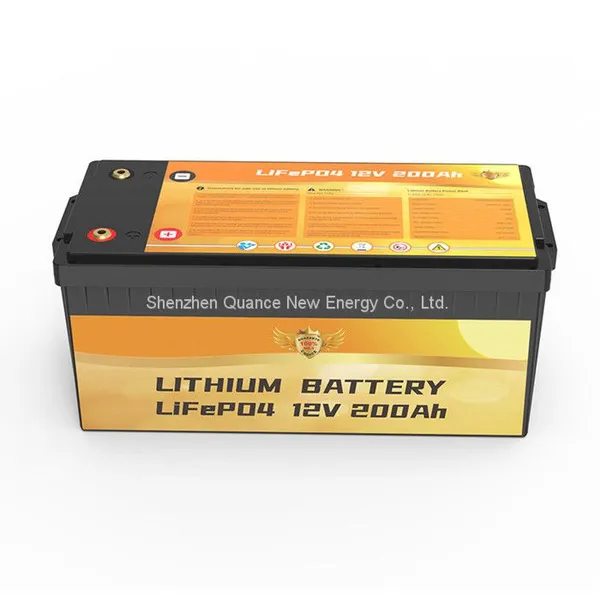

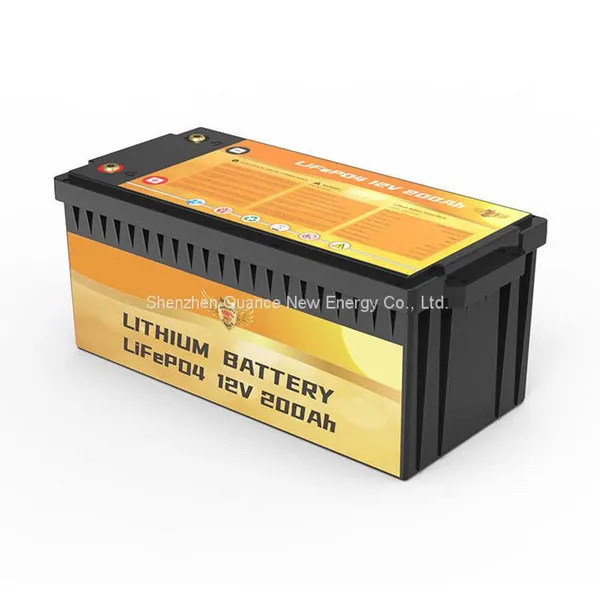

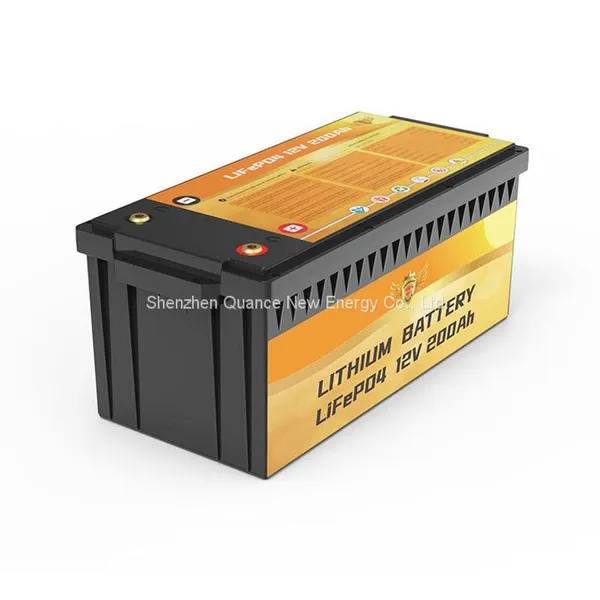

Li-MAX Lithium iron Battery Pack for Lead-Acid Battery Replacement
Main features:
1.With 12V/24V/48V LiFePO4 pack, superior safety and reliability.
2.Top brand cell such as CATL,BYD.
3.Cells cycles times≥3000.
4.Long lifespan: 3 years warranty, 5+ years life design.
5.With intelligent BMS system to optimize the performance.
6.Built in 1.2A cell equalizer, can balance all cells in short time.
7.Max discharge current 6A-200A depends on different model,
compatible with solar system with big storage power.
8.Excellent standby self-consumption as low as 4mA.
9.High density, small size and weight.
10.With ABS case to replace lead acid battery.
11.All around protection and unattended operation.
12.Optional for LCD display or communication (CAN/RS485/RS232).
| TECHNICA L PARAMETER | ||||||||
| SPECIFICATION | Li-MAX- 12V100AH | Li-MAX- 12V200AH |
Li-MAX- 12V300AH |
Li-MAX- 12V400AH |
Li-MAX- 24V100AH | Li-MAX- 24V150AH | Li-MAX- 24V200AH | Li-MAX- 48V100AH |
| Battery Type | LiFePO4 | |||||||
| Normal Battery Voltage(Vdc) | 12.8V | 12.8V | 12.8V | 12.8V | 25.6V | 25.6V | 25.6V | 51.2V |
| Normal Capacity(25℃, 0.2C)(WH) | 1280WH | 2560WH | 3840WH | 5120WH | 2560WH | 3840WH | 5120WH | 5120WH |
| Voltage window(Vdc) | 11.2～14.6V | 11.2～14.6V | 11.2～14.6V | 11.2～14.6V | 22.4～29.2V | 22.4～29.2V | 22.4～29.2V | 44.8～58.4V |
| Folat Charge Voltage(Vdc) | 13.8V | 13.8V | 13.8V | 13.8V | 27.6V | 27.6V | 27.6V | 55.2V |
| ntinue discharge current (A) | 100 | 200 | 200 | 200 | 100 | 150 | 200 | 100 |
| Max,pulse discharge current (A) | 200A 1Sec. | 400A 1Sec | 400A1Sec. | 400A 1Sec. | 200A 1Sec. | 300A 1Sec. | 400A 1Sec. | 200A 1Sec. |
| ntinue charge current (A) | 50 | 100 | 150 | 200 | 50 | 75 | 100 | 50 |
| Cycle life(+25℃ 0.2C 80%DOD) | >3000 Cycles | |||||||
| Cell Equalizer Current(A) | 1~5A Max | |||||||
| erminal | M8 | |||||||
| Storage temperature | 0℃~30℃ | |||||||
| Storage duration | 6 months at 25℃ | |||||||
| Safety standard | UN38.3,EC62619,MSDS,CE | |||||||
| IP degree | IP20 | |||||||
| PROTECTION | ||||||||
| Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、 Overtemperature protection |
|||||||
| AMBIENT | ||||||||
| Noise(dB) | ||||||||
| working Temperature | -10℃~+50℃ | |||||||
| Humidity | 0~95%(no condensation) | |||||||
| Sea Level(m) | =1500 | |||||||
| DIMENSION | ||||||||
| LxW×H(products size)mm | L256xW165x H210 | L532xW207x H215 | L521xW238x H218 | L520xW267x H220 | L532xW207x H215 | L521xW238x H218 | 520xW267x H220 | L520xW267x H220 |
| ×W×H(package size) mm | 1276xW185xH230 | 1552×W227xH235 | L541xW258x H238 | L540xW287x H240 | L552xW227x H235 | L541xW258x H238 | L540xW287x H240 | L540xW287x H240 |
| Neight(NW Kg) | 42.5Kg | 30.0Kg | 34.0Kg | 42.0Kc | 30.0Kg | 34.0Kg | 42.0Kc | 42.0Kg |
| Neight(GW Kg) | 13.0Kg | 31.0Kg | 35.0Kg | 43.0Kg | 31.0Kg | |||
