Home > Electrical & Electronics > Oscillator > NX3225SA-27.000MHZ-STD-CSR-1 NDK Crystals Tolerance：15 PPM

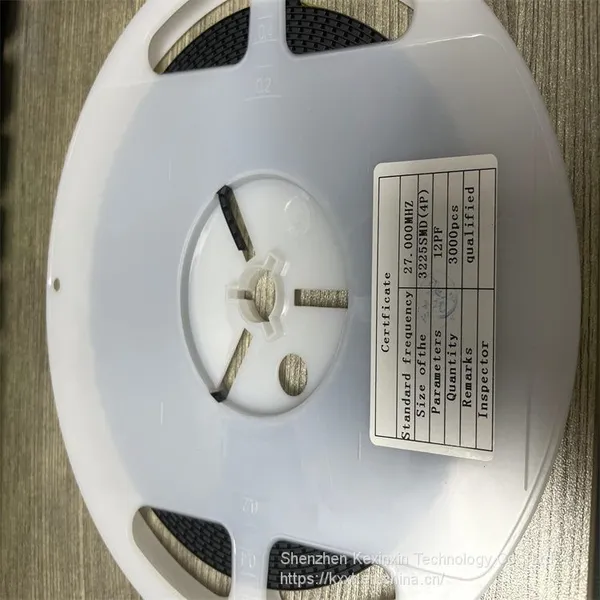

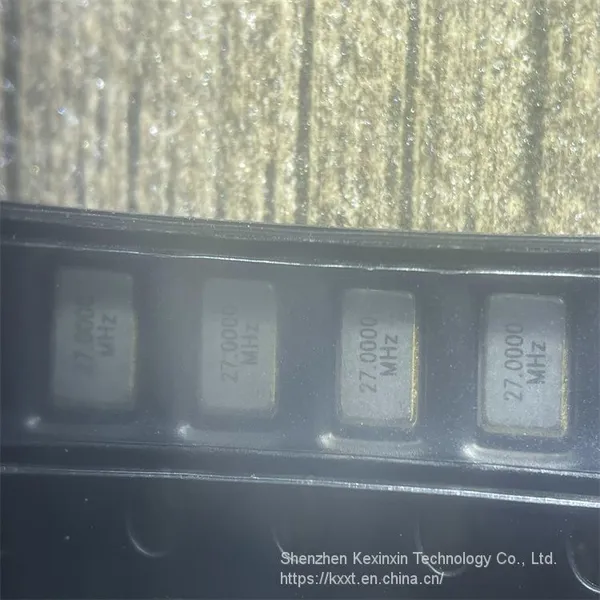

NX3225SA-27.000MHZ-STD-CSR-1 NDK Crystals Tolerance：15 PPM
US$ 0.55 - 0.8
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
NDK
Place of Origin:
China
Model Number:
NX3225SA-27.000MHZ-STD-CSR-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New and Original ic Chips NX3225SA-24.000MHZ-STD-CSR-1 Crystals 3225 4P 24.000MHZUS$ 0.37 - 0.7MOQ: 10 Pieces -
Electronic Components 5032 2P 8.000MHZ Crystals ABM3-8.000MHZ-D2Y-TUS$ 0.3 - 0.5MOQ: 10 Pieces
-
ABM3-8.000MHZ-D2Y-T ABRACON Crystals 8.0 MHZ 18PFUS$ 0.3 - 0.4MOQ: 10 Pieces
-
406C35D11M05920 CTS Electronic Components Crystals 11.0592MHz 18pF 30ppm -20C +70CUS$ 0.4 - 0.72MOQ: 10 Pieces
-
ABLS-13.52127MHZ-10-J-4Q-T Abracon CRYSTAL 13.52127MHZ 10PF SMD 13.52127 MHz ±30ppm Crystal 10pF 50 Ohms HC-49/USUS$ 0.3 - 0.5MOQ: 10 Pieces
Brand Name
NDK
Place of Origin
China
Model Number
NX3225SA-27.000MHZ-STD-CSR-1
Operating Temperature
Minimum Operating Temperature: - 10 C Maximum Operating Temperature: + 75 C
Package Type
Surface Mount
Dimensions
3.2 mm x 2.5 mm
Load Capacitance
8 pF
Frequency Tolerance
15 PPM
Nominal Frequency
27 MHz
Mfr. #:
NX3225SA-27.000MHZ-STD-CSR-1
Manufacturer: NDK
Product Category: Crystals
RoHS: Details
Termination Style: SMD/SMT
Package / Case: 3.2 mm x 2.5 mm
Load Capacitance: 8 pF
Frequency: 27 MHz
Tolerance: 15 PPM
Frequency Stability: 15 PPM
ESR: 50 Ohms
Drive Level: 10 uW
Minimum Operating Temperature: - 10 C
Maximum Operating Temperature: + 75 C
Length: 3.2 mm
Width: 2.5 mm
Height: 0.55 mm
Diameter: -
Series: NX
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Brand: NDK
Mounting Style: SMD/SMT
Product: Crystals
Product Type: Crystals
Factory Pack Quantity: 3000
Subcategory: Crystals
Type: Quartz Crystal
Unit Weight: 0.001446 oz
