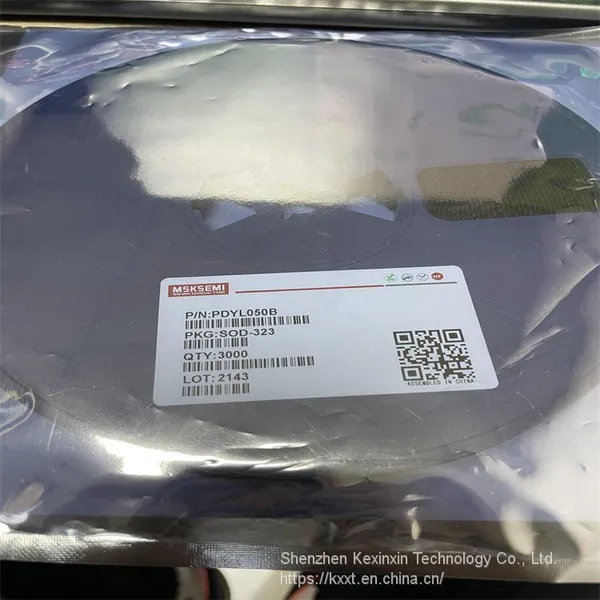

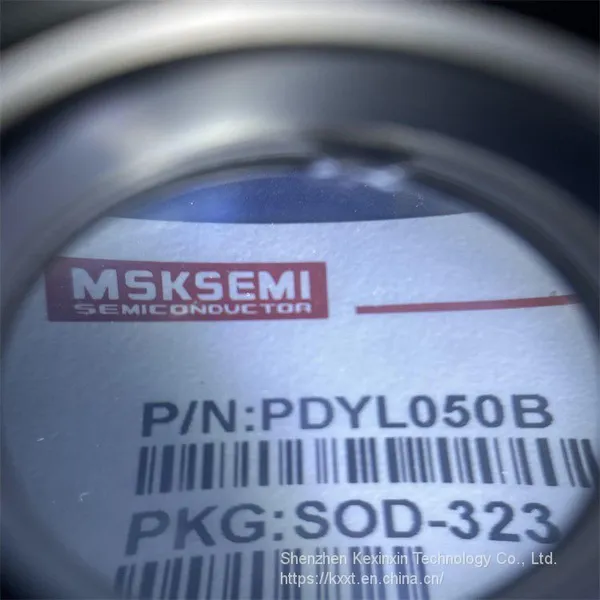

PDYL050B SOD-323 MSKSEMI NICHTEK
1-Line Low Capacitance Bi-directional TVS Diode
Features
450W peak pulse power (8/20μs)
Ultra low capacitance: 0.6pF typical
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Protects one power line or data line
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
– IEC61000-4-4 (EFT) 80A (5/50ns)
– IEC61000-4-5 (Lightning) 18A (8/20 μs)
RoHS Compliant
Applications
USB Ports
Smart Phones
Wireless Systems
Ethernet 10/100/1000 Base T
Package: SOD-323
Lead Finish: Matte Tin
Case Material: “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 3 per J-STD-020
Terminal Connections: See Diagram Below
Marking Information: See Below
Set-top box and digital TV
Digital video interface (DVI)
