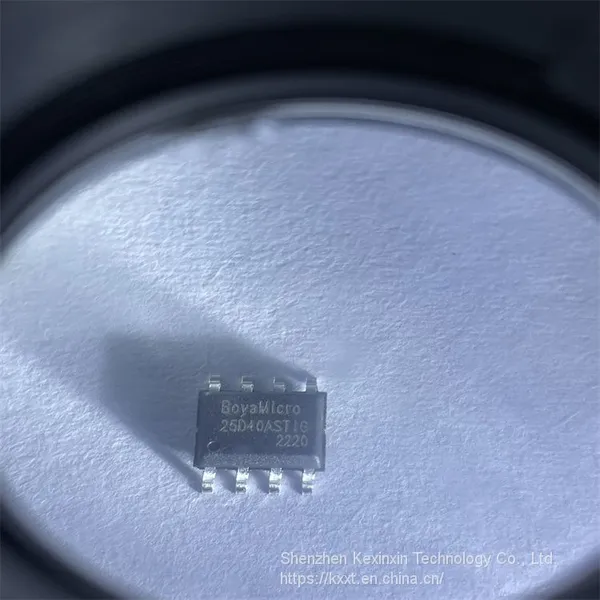

SOP-8 BY25D40ASTIG SOP-8 Memory Series Chip Electronic Components ICs

SOP-8 BY25D40ASTIG SOP-8 Memory Series Chip Electronic Components ICs thumbnail-1
SOP-8 BY25D40ASTIG SOP-8 Memory Series Chip Electronic Components ICs thumbnail-2
SOP-8 BY25D40ASTIG SOP-8 Memory Series Chip Electronic Components ICs photo-1
SOP-8 BY25D40ASTIG SOP-8 Memory Series Chip Electronic Components ICs photo-2
US$ 0.09 - 0.16 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
other
Place of Origin:
China
Model Number:
BY25D40ASTIG
Contact Supplier Request Quote Chat Now
Shenzhen Kexinxin Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name other
Place of Origin China
Model Number BY25D40ASTIG
Type Other, Boya Microelectronics

BY25D40ASTIG

Boya Microelectronics

Memory Series

SOP-8



4/2M BIT SPI NOR FLASH



Features

● Serial Peripheral Interface (SPI)

 - Standard SPI: SCLK, /CS, SI, SO, /WP

 - Dual SPI: SCLK, /CS, IO0, IO1, /WP

● Read  SOP8 150-mil

 - Normal Read (Serial): 55MHz clock rate

 - Fast Read (Serial): 108MHz clock rate

 - Dual Read: 108MHz clock rate

● Program

 - Serial-input Page Program up to 256bytes

● Erase

 - Block erase (64/32 KB)

 - Sector erase (4 KB)

 - Chip erase

● Program/Erase Speed SOP8 208-mil

 - Page Program time: 0.7ms typical

 - Sector Erase time: 100ms typical

 - Block Erase time: 0.3/0.5s typical

 - Chip Erase time: 3/2s typical

● Flexible Architecture

 - Sector of 4K-byte

 - Block of 32/64K-byte

● Low Power Consumption

 - 20mA maximum active current

 - 5uA maximum power down current

● Software/Hardware Write Protection  USON8 3*2 mm

 - Enable/Disable protection with WP Pin

 - Write protect all/portion of memory via software

 - Top or Bottom, Sector or Block selection

● Single Supply Voltage

 - Full voltage range: 2.7~3.6V

● Temperature Range

 - Commercial (0℃ to +70℃)

 - Industrial (-40℃ to +85℃)

● Cycling Endurance/Data Retention

 - Typical 100k Program-Erase cycles on any sector

 - Typical 20-year data retention at +55℃



Product Tags: Boya Microelectronics , Integrateds Circuit , Electronic Components , Digital Potentiometer ICs
