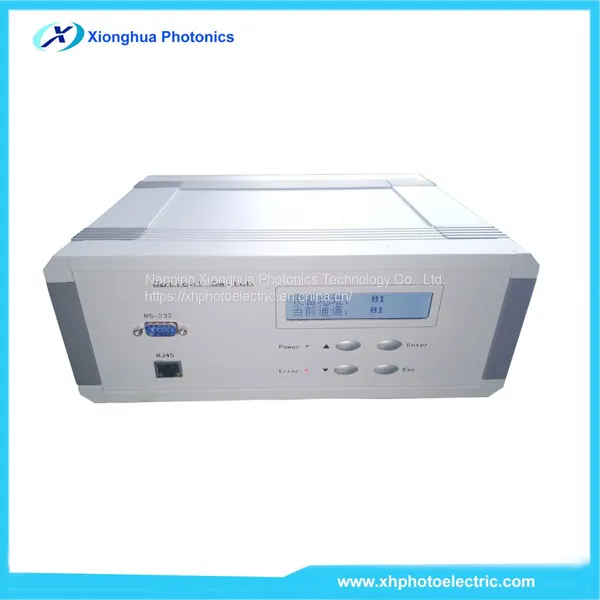

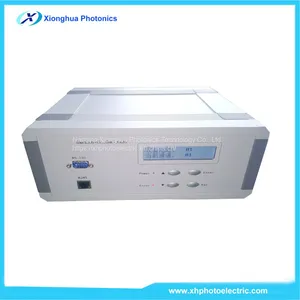

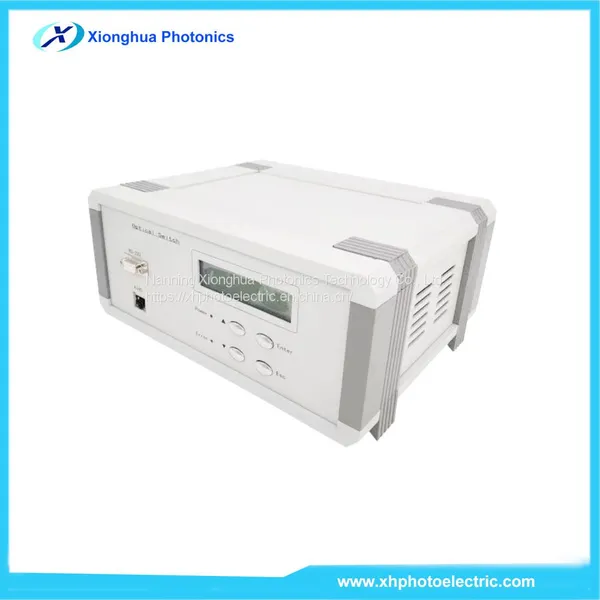

XH-1x18-T optical switch is the use of optical switch to realize optical path conversion products.Equipment each light path design a control button, can be quickly switch button simple optical path and ultimately achieve 1 (input) * N (output) core optical fiber routing strictly non-blocking two-way cross connection, plays an important role in the optical communication applications.. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensorsmonitoring system.
Features
(1)with small insertion loss, fast switching speed and other characteristics.
(2)the internal circuit of the optical switch is self-detecting, and the fault alarm informs.
(3) the chassis is instrumentation aluminum profile shell, ideal for laboratory.
(4) serial port RS-232 communication, control switching through the command set.
(5) each road independent key control switching, LED key light display light road status.
Performance
Parameter |
Parameter Values |
Model |
XH-FSW-1X8-T |
Wavelength Range |
1260~1650nm |
wavelength |
1310/1550nm |
Insertion Loss |
≤ 1.2 dB |
Repeatability |
≤ 0.02 dB |
Return Loss |
≥ 50 dB |
Crosstalk |
≥ 70 dB |
WDL |
≤ 0.25 dB |
PDL |
≤ 0.05 dB |
Fiber Type |
SM(9/125um) |
Connector |
FC\PC or FC/APC |
Monitoring port |
Pushbuttons,RS-232 |
Operating power |
AC:100~240V |
Operating Temperature |
-10 ~ +60ºC |
Operating Temperature |
-40 ºC ~ +85 ºC |
Enclosure Type |
267(W)x220(L)x105(H) |
