Features:1. With auto & manual water supply system, auto water supplement when with low water level, ensure the testing continuously.
2. Temperature controller with digital control, P.I.D. Control with accuracy of 0.1℃.
3. Double over-temperature protection, alarm when with low water level, ensures operating safety.
4. High precise glass nozzle control the salt mist, mist spray out uniformity through conical diffuser and free falling on the
specimen, ensure with no crystallization salt blocking.If you need more models about our test equipment, please reference our chamber-testing（.）com
Technical Parameters:
| Test Space W x H x D(mm) |
600x400x450 | 900x600x500 | 1200x1000x500 | 1600x1000x500 | 2000x1200x500 |
| External Dimension W x H x D(mm) |
1070x600x1180 | 1310x880x1280 | 1900x1300x1400 | 2300x1300x1400 | 2700x1500x1500 |
| Lab Volume | 108L | 270L | 600L | 800L | 1440L |
| Brine Tank Capacity | 15L | 25L | 40L | 40L | 40L |
| Power Supply | AC220V,15A | AC220V,15A | AC220V,20A | AC220V,20A | AC220V,30A |
| Test Equipment Temp. Range | RT~55℃ | ||||
| Pressure Tank Temp. Range |
RT~70℃ | ||||
| Temperature Fluctuations | ≤±0.5℃ | ||||
| Temperature Uniformity | ≤±2℃ | ||||
| Temperature Precision | ±1℃ | ||||
| Spray Pressure | 1.00±0.1kgf/c㎡ | ||||
| Lab Relative Humidity | Above 85%H.R | ||||
| Spray Way | Continuous or intermittent type spray(optional) | ||||
| Spray Quantity | 1.0~2.0ml/80c㎡/hour | ||||
| Safety Protection Device | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection. | ||||
Applications:

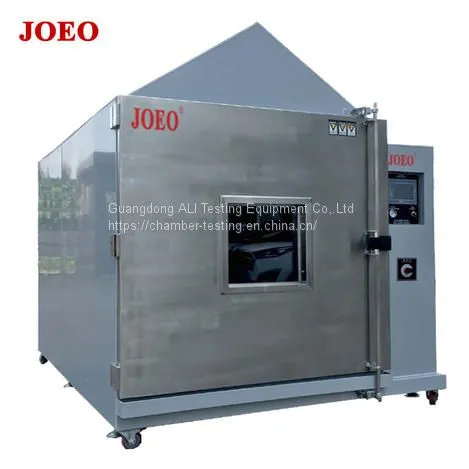

The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
