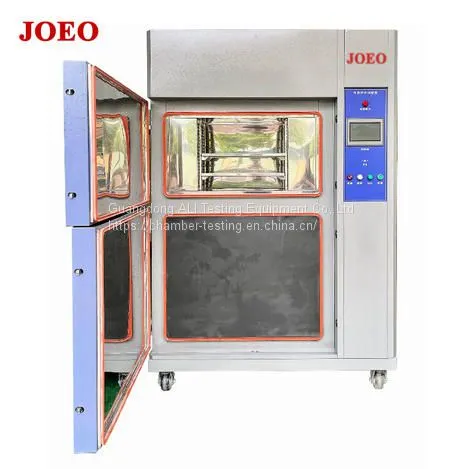

Humidity Automated Temperature Controlled Test Chamber OEM Thermal
Negotiable
MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong,China
Delivery Detail:
15 days
Related Products
-
Stainless Artificial Climate Control Chamber , OEM Incubator ChamberNegotiableMOQ: 1 Bag -
High Low Temperature Test Chambers With Touchscreen Controller OEMNegotiableMOQ: 1 Bag
-
LED Liquid Crystal Display Temperature Test Equipment AC380VNegotiableMOQ: 1 Bag
-
High Pressure Test Chamber Test Chamber With 7" Tft ScreenNegotiableMOQ: 1 Bag
-
ROHS Constant Humidity Temperature Test Chambers PLC Control 50HzNegotiableMOQ: 1 Bag
Customized size:
Inner door with operation hole (optional)
Entrance hole for test wire, Dia.50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication Interface.If you need more models about our test equipment, please reference our chamber-testing（.）com
Application:
high low temperature alternating test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
technical parameters:
| Model | GS-80 (A~F) |
GS-150 (A~F) |
GS-225 (A~F) |
GS-408 (A~F) |
GS-800 (A~F) |
GS-1000 (A~F) |
|||||
| Internal Dimensions WxHxD (mm) |
400x500 x400 |
500x60 0x500 |
600x750 x500 |
600x850 x800 |
1000x1000 x800 |
1000x1000 x1000 |
|||||
| External Dimensions WxHxD (mm) |
950x1650 x950 |
1050x1750 x1050 |
1200x1900 x1150 |
1200x1950 x1350 |
1600x2000 x1450 |
1600x2100 x1450 |
|||||
| Temperature Range | Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC) High Temperature 150ºC |
||||||||||
| Analytic Accuracy/Distribution Uniformity of Temperature | 0.1ºC /±2.0ºC | ||||||||||
| Control Accuracy of Temperature |
±0.5ºC | ||||||||||
| Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1~3.0ºC/min ; temperature falling approx. 0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºC per minute is a special optional condition) |
||||||||||
| Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. | ||||||||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||||||
| Cooling System | Wind cooled or water cooled,single segment compressor for -40ºC, double segment compressor for -70ºC | ||||||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system | ||||||||||
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Dehumidifier | ||||||||||
| Compressor | French Tecumseh Brand,Germany Bizer Brand | ||||||||||
| Power | AC 220V, 1∮ 3 Lines,50/60HZ ; AC 380V ,3∮ 5 Lines,50/60HZ | ||||||||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 | |||||
