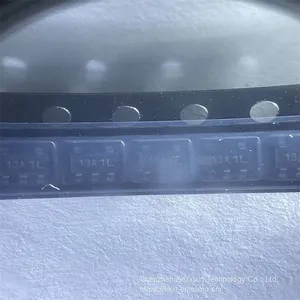

Help CenterMM3513A01NRH MITSUMI Voltage Monitor IC for Li-ion Cell Balance
Related Products
-
MMBD914 Rectron Diodes - General Purpose, Power, Switching SOT23,1N914US$ 0.02 - 0.055MOQ: 100 Pieces -
MMBT5551 Rectron Bipolar Transistors - BJT SOT23,NPN,0.6A,160V,HighVoltUS$ 0.02 - 0.4MOQ: 10 Pieces
-
MMSZ5232B Diotec Semiconductor Zener Diodes Zener, SOD-123F, 5.6V, 0.5W, 5%US$ 0.03 - 0.175MOQ: 10 Pieces
-
MUR1560G Onsemi Rectifiers 600V 15A UltraFastUS$ 0.4 - 1.5MOQ: 1 Piece
-
MX25L25645GM2I-08G-TR MXIC 3V, 256M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORYUS$ 1.2 - 3MOQ: 1 Piece
Voltage Monitor IC for Li-ion Cell Balance
MM3513 Series
MITSUMI
Outline
The MM3513 series are voltage monitor ICs for rechargeable Lithium-ion or Lithium-polymer batteries, using
a high voltage CMOS process. Each Lithium-ion or Lithium-polymer battery can be balanced. Each of these
ICs is composed of voltage detectors, reference voltage sources, an oscillator, a counter circuit and logical
circuits.
Features (Unless otherwise specifi ed, Topr=+25°C
(1) High-accuracy detection voltage
Detection voltage 3.5V to 4.5V, 5mV steps Accuracy±20mV
Accuracy±25mV (Topr=−5 to +60°C)
Hysteresis voltage 0V to 0.4V, 50mV steps
However,"Detection voltage-Hysteresis voltage
(2) Range of Detection delay time
Detection delay time Selectable from 0.25s , 1.0s , 1.2s , 4.5s
(3) Low current consumption
Normal mode Typ. 1.5µA, Max. 3.0µA
Stand-by mode Max. 0.5µA
(4) Absolute maximum ratings
VDD pin VSS−0.3V to 12V
OUT pin VDD−0.3V to VDD+0.3V
DS pin VSS−0.3V to VDD+0.3V
Storage temperature −55 to +125°C
Operation temperature −40 to +85°C
· Resistors R1 to R5 and capacitors C1 to C5 stabilize a supply voltage ripple. However, if the resistors R1 to
R5 are increased, the detection voltage raises due to through-current in the IC. Therefore, adjust the value to
1k or less. Moreover, the capacitors C1 to C5 should be 0.01µF or more to ensure stable operation.
· For resistors RDC1 to RDC5, the value of bypass current is determined
