Drying All Kinds of Charcoal and Coal Briquettes
Drying All Kinds of Charcoal and Coal Briquettes Introduction:
Drying All Kinds of Charcoal and Coal Briquettes is mainly used to briquette charcoal leftover, small pieces of charcoal, charcoal waste, etc. and make them be fully used to increase its economic value. The final briquette shape and size both can be customized from 25-60mm with oval, pillow and square shape as well as other favorite shapes in market. according to special requirement. In addition, the raw material range is very widely, like coal powder, fertilizer, salt, iron powder, and gypsum, chrome, copper, etc.
Drying All Kinds of Charcoal and Coal Briquettes Structure:
(1) We offer three types of pressure: spring disc, wedge block and hydraulic
Hydraulic type has larger pressure, even some uneasy shaping materials, such as dry powder, fertilizer, salt, etc, can also press in good shape, the pressure can be adjusted according to different raw material.
(2) Because charcoal powder is just a little light, easy to be molded. The roller material adopts 65Mn is enough. Normally, this kind of roller can use 8-10 month.
(3) We also produce 1-2t/h Drying All Kinds of Charcoal and Coal Briquettes, four-rollers charcoal briquette machine: in order to reduce density between charcoal powder and make best quality charcoal briquettes, we design four rollers charcoal briquette machine, which can press charcoal powder two times.
(2) It is mainly used for better breathability slice, strip and briquettes and bulk material, like coal bar, coal tablet, etc. drying process.
(3) Heating source is power, steam and hot air, etc. The Drying All Kinds of Charcoal and Coal Briquettes is conceptually very simple. Product is carried through the dryer on conveyors and hot air is forced through the bed of product.
(4) It is often described as simply a conveyor in a box with hot air. The reality, however, is that the belt dryer is one of the most versatile dryers available.
(5) Few drying technologies can match the belt dryer’s ability to handle such a wide range of products.
Drying All Kinds of Charcoal and Coal Briquettes Working Principle:

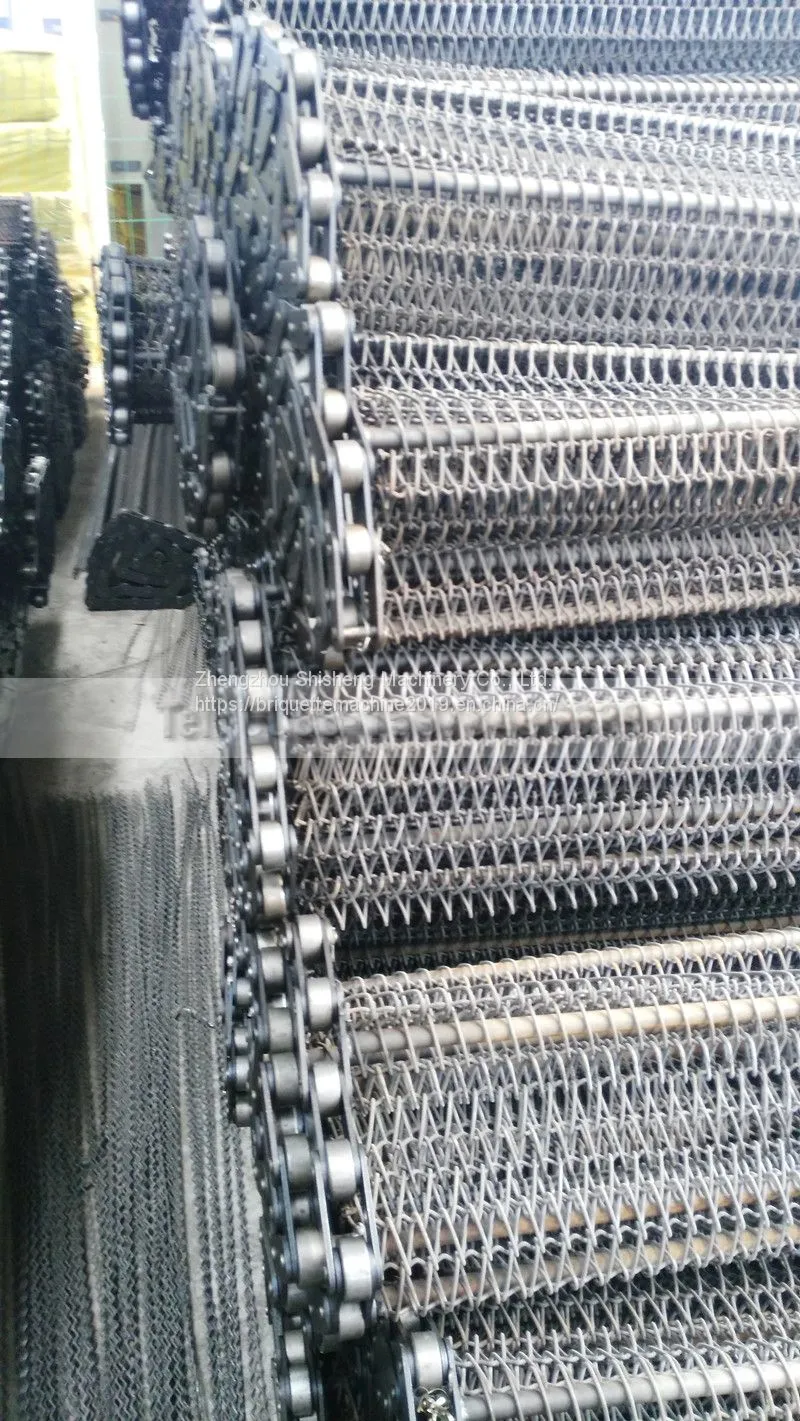

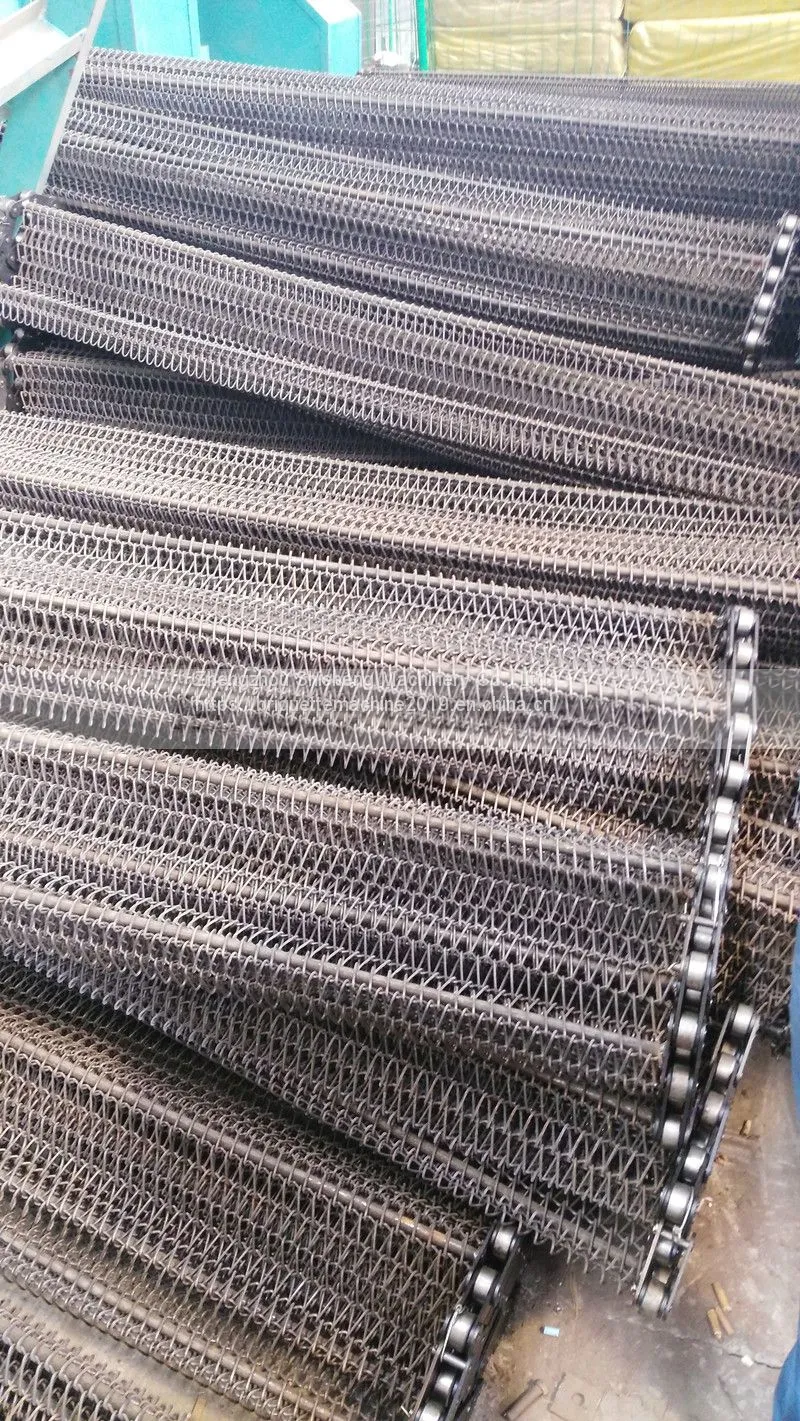

(1) Drying All Kinds of Charcoal and Coal Briquettes feeding part has feeding device, which laid material evenly on the mesh belt through distributor. When first layer move to driving chain wheel, material fall down to second layer by self-weight.
(2) Use blower delivery hot air to bottom from upper both wall side inter-layers, make hot air flows up from bottom, so that wet material fully absorb heating, and reach to perfect drying effect.
(3) The wet air from dried material is transported by weep hole on the upper middle part of dryer. Not dried briquettes, the strength is a little bad at the beginning. When fall down from layer to layer, the impacting and rubbing of each briquette will bring powder.
(4) Traditional drying machine get manual clean, but it takes big labor intensity, and need open door to clean, which cause drying machine inside temperature lose.
(5) Now, our factory adds a scraper slag removal machine on the dryer bottom can get rid of powder quickly and conveniently.
Drying All Kinds of Charcoal and Coal Briquettes Advantages:
(1) Materials are uniformly put on the mesh-belt by the feeder.
(2) The drier is composed of several units.
(3) For each unit, the hot air is circulated separately.
(4) Some exhausted gas is discharged with a special moisture elimination blower.
(5) The waste gas is controlled through an adjustment valve.
(6) The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process.
(7) This process will bring the material water away.
(8) The mesh-belt moves slowly, Running speed can be freely adjusted according to the material temperature. The final products after the drying will fall into the material collector continuously.
(9) The top and low circulation units can be freely equipped according to the users' demand.The unit number can be selected according to the demand.
Drying All Kinds of Charcoal and Coal Briquettes Technical Parameter:
Model |
WD6 |
WD8 |
WD12 |
WD16 |
WD18 |
WD20 |
WD24 |
Mesh Belt Width(mm) |
600 |
800 |
1200 |
1600 |
1800 |
2000 |
2400 |
Drying Section Length(m) |
7-13 |
7-13 |
9-17 |
13-25 |
13-35 |
15-37 |
17-41 |
Transmission Power(kw) |
1.1-2.2 |
2.2-3 |
2.3-3 |
3-4 |
4-5.5 |
5.5-7.5 |
7.5-11 |
Layer |
1/3/5 |
||||||
Loading Capacity(kg/m2) |
90-200 |
||||||
Input Moisture(%) |
12-18 |
||||||
Output Moisture(%) |
1-5 |
||||||
Temperature(℃) |
Carbon Steel≤200, Stainless Steel≤280 |
||||||
Heating Source |
Hot Air(Coal, Oil, Gas, Power) |
||||||
Moving Speed(m/min) |
0.04-4 |
||||||
Matched Equipment |
Conveyor, Heating Furnace, Dust Collector, Draft Fan |
||||||
Remarks |
Special Customized Is Available |
||||||
