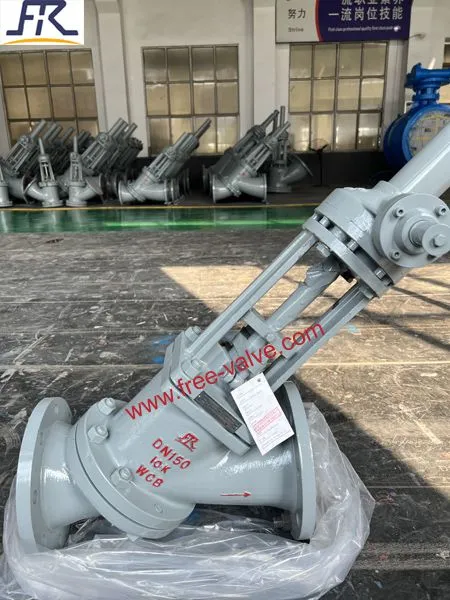

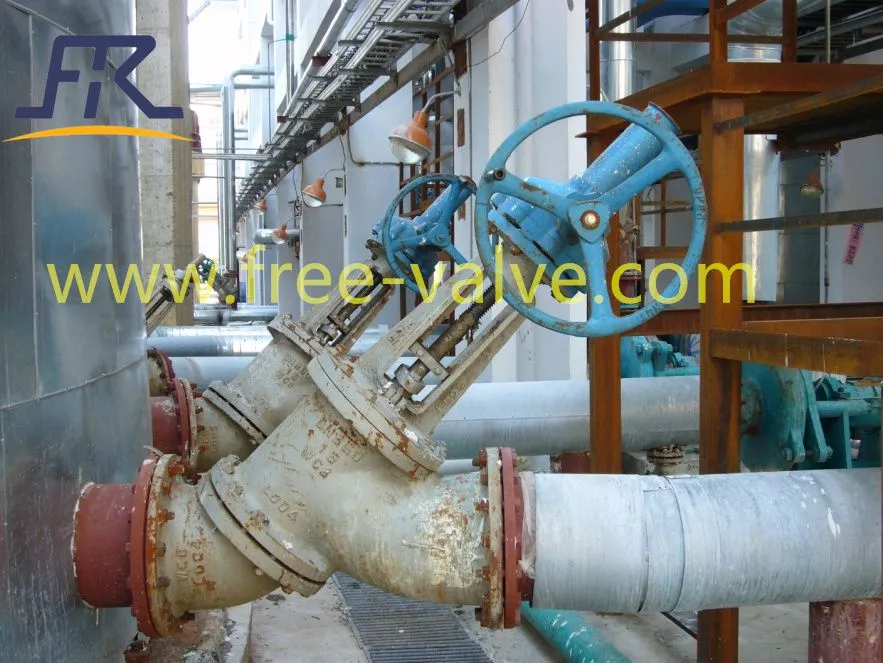

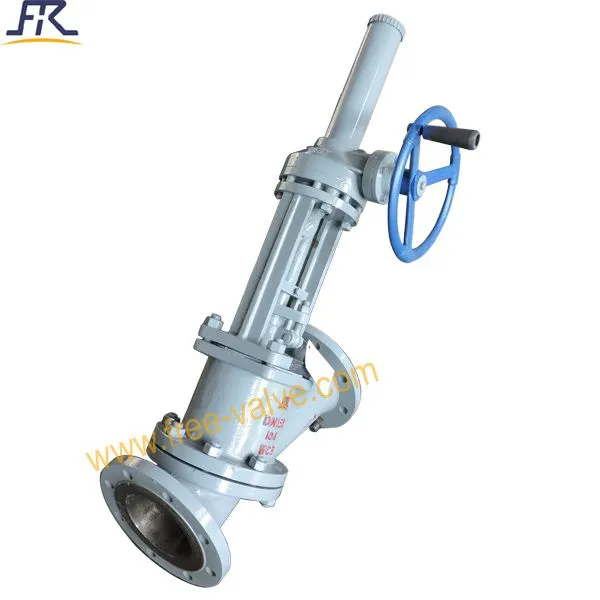

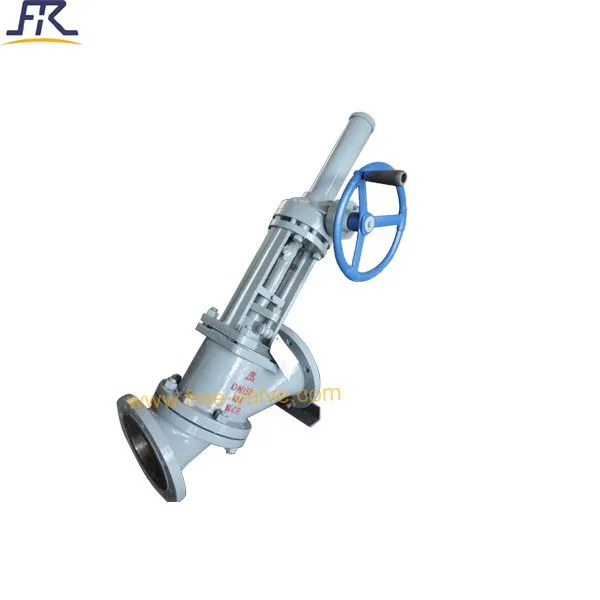

FREE-VALVE DN150 10K Y Type Slurry Valve is ideal for many applications because the valves are designed for use on abrasion materials. Y Type Slurry Valve is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replace the valve seat.The valve with abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance.The Y type slurry valve is specially offered for controlling or stopping the slurry, the slurry valves are used primarily in the alumina,metallurgy , chemical fertilizer and mining industry.
Features
1.Y Type Slurry Valve is divided into left and right parts with a seat between them. The seat is installed between the two valve body ,so the seat can be replaced easily .The left and right valve bodies are provided in geometric design,the finite element analysis and 3D design software are used for flow analysis in the cavity of the valve body.
2. An anti-washing and anti-corrosion protection stem is set in the cavity of the valve body.
3. Y Type Slurry Valve has a good abrasion resistance with higher hardness because Full Stellite or Tungsten carbide overlaying seat sealing surface.
4. Anti-washing and anti corrosion protection plate is set in the cavity of the valve body .
5. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.
Technical Specification:
Flange connection |
GB/T9113 |
Design standard |
ASME B16.34 |
Pressure Range |
JIS 10K |
Size Range |
DN150 |
Material |
Carbon steel, stainless steel |
Connection type |
Flange |
Working Temperature |
≤425℃ |
Operating Type |
Pneumatic, manual, electric |
Sealing surface material |
Alloy |
Pressure test |
GB/T13927, API598 |
Face to Face |
GB/T12221 |
Application
Alumina,Metallurgy , Chemical fertilizer , Mining industry, Paper-making
Model:FRJ45Y-10K DN150
Price:100-2000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:Free_Valve
Email:marketing@free-valve.com
Skype:marketing@free-valve.com
What’s App:+8613460250295
Mobile:+13460250295
