Product Advantages

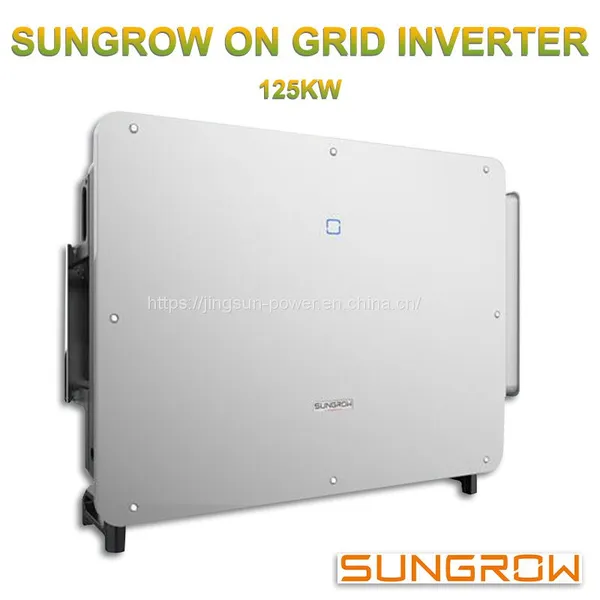

SUNGROW SG125CX-P2 grid-tied inverter is a highly efficient and reliable product that comes with several advantages. Here are five of its benefits:
1. 12 MPPTs:
The SG125CX-P2 inverter comes equipped with 12 maximum power point trackers (MPPTs), ensuring it can handle a wide range of PV module configurations. This feature maximizes energy production and efficiency, making it ideal for large-scale commercial solar installations.
2. Comprehensive surge protection:
The inverter is equipped with DC Type I+II and AC Type II surge protection devices (SPDs), ensuring comprehensive protection against voltage surges. This feature enhances the safety and reliability of the solar installation and provides peace of mind to system owners.
3. Compatible with large AC cables:
The SG125CX-P2 inverter can work with AC cables with a maximum cross-sectional area of 240mm². This compatibility makes it an excellent choice for large solar projects with demanding connectivity requirements.
4. Grid fault record function:
The inverter's grid fault record function facilitates easy remote operation and monitoring. The system allows for comprehensive data recording of the grid faults, which is essential for effective remote operation and maintenance.
5. High reliability and ease of operation:
The SG125CX-P2 inverter boasts a robust design, high reliability, and ease of operation. It is straightforward to install and maintain, reducing the overall cost of running a solar installation. These features make it an attractive option for anyone looking for a stable and low-risk solar inverter solution.
Overall, the SG125CX-P2 inverter is a top-of-the-line product that offers impressive energy conversion efficiency, excellent surge protection, compatibility with large AC cables, easy remote operation and monitoring, and high reliability.
Technical Data
Type Designation |
SG125CX-P2 |
Input (DC) | |
Recommended max. PV input power |
175 kW |
Max. PV Input Voltage |
1100 V |
Min. PV Input Voltage |
180V |
Start-up Input Voltage |
200V |
Nominal PV input voltage |
600V |
MPP Voltage Range |
180 V – 1000 V |
No. of Independent MPP Inputs |
12 |
No. of PV Strings Per MPPT |
2 |
Max. PV Input Current |
360 A ( 30 A * 12 ) |
Max. DC Short-circuit Current |
480 A ( 40 A * 12 ) |
Max. current for DC connector |
30A |
Output (AC) | |
Rated AC output power |
125 kVA ( 415 V @ 50 ℃ ) |
Max. AC output apparent power |
125 kVA ( 415 V @ 50 ℃ ) |
Max. AC Output Current |
181.1 A |
Rated AC output current(at 230V) |
181.1 A |
Rated AC voltage |
3 / N / PE, 230 / 400 V ; 3 / N / PE, 240 / 415 V |
AC Voltage Range |
320V – 480 V |
Nominal Grid Frequency |
50 Hz / 60 Hz |
Grid Frequency Range |
45 Hz – 55 Hz / 55 Hz – 65 Hz |
Harmonic (THD) |
|
Power Factor At Rated Power |
>0.99 |
Adjustable Power Factor |
0.8 leading – 0.8 lagging |
Feed-in Phases |
3 |
Connection Phases |
3-N-PE |
Efficiency | |
Max. Efficiency |
98.50% |
European Efficiency |
98.30% |
