Home > Electrical & Electronics > Inverter > Power Inverter > Deye Inverter 8KW EU Single Phase Hybrid Inverter

Deye Inverter 8KW EU Single Phase Hybrid Inverter

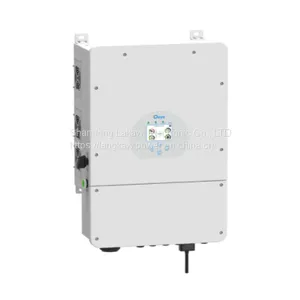

Deye Inverter 8KW EU Single Phase Hybrid Inverter thumbnail-1
Deye Inverter 8KW EU Single Phase Hybrid Inverter photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Deye
Place of Origin:
China
Type:
Other, Hybrid Inverter
Contact Supplier Request Quote Chat Now
Shandong Lakawi Electronic Co., LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Deye
Place of Origin China
Type Other, Hybrid Inverter
Output Type Single
Product Description

deye inverter

SUN-8K-SG01LP1-EU | 8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage BatteryHigher yields / Safe & Reliable / Smart / User-friendly

Deye Hybrid inverter SUN-8K-SG01LP1-EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.




Remotely shutdown function


Smart Monitoring Platform


Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.




Features：


  • 100% unbalanced output；each phase

  • AC couple to retrofifit existing solar system

  • *Max. 10 pcs parallel for on-grid and off-grid

  • operation; Support multiple batteries parallel

  • Max. charging/discharging current of 50A

  • High voltage battery, higher efficiency

  • 6 time periods for battery charging/discharging

  • Support storing energy from diesel generator


deye hybrid inverter


dimensions


Technical Specifications：


Model

SUN-8K-SG01LP1-EU

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

40-60

Max. Charging Current (A)

190

Max. Discharging Current (A)

190

External Temperature Sensor

Yes

Charging Curve

3 Stages / Equalization

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W)

10400

Rated PV Input Voltage (V)

370 (125-500)

Start-up Voltage (V)

125

MPPT Voltage Range (V)

150-425

Full Load DC Voltage Range (V)

200-425

PV Input Current (A)

26+26

Max. PV I (A)

44+44

No.of MPP Trackers

2

No.of Strings per MPP Tracker

2+2

AC Output Data

Rated AC Output Active Power (W)

8000

Max AC Output Active Power (W)

8800

AC Output Rated Current (A)

36.4/34.8

Max. AC Output Current (A)

40/38.3

Max. Continuous AC Pass through (A)

50

Peak Power (off grid)

2 time of rated power, 10 S

Power Factor Adjustment Range

0.8 leading to 0.8 lagging

Power Factor

1

Output Frequency and Voltage

50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase),  L/N/PE 220/230Vac (single phase)

Grid Type

Split Phase; 2/3 phase; Single Phase

Total Harmonics Current Distortion (THDi)

DC Current Injection

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Integrated

Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection

Over Voltage Category

DC Type II/AC Type III

Certifications and Standards

Grid Regulation

EN 50549, UNE 217002, NRS 097, IEEE 1547.1, SRD V2.0

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, UL 1741

General Data

Operating Temperature Range (℃)

-40-60℃, >45℃ Derating

Cooling

Smart Cooling

Noise (dB)

≤30 dB

Communication with BMS

RS485; CAN

Weight (kg)

32

Cabinet Size (W*H*D mm)

420×670×233 (Excluding Connectors and Brackets)

Protection Degree

IP65

Installation Style

Wall-mounted

Warranty

5 Years (10 Years Optional)


Product Tags: deye inverter , hybrid inverter
