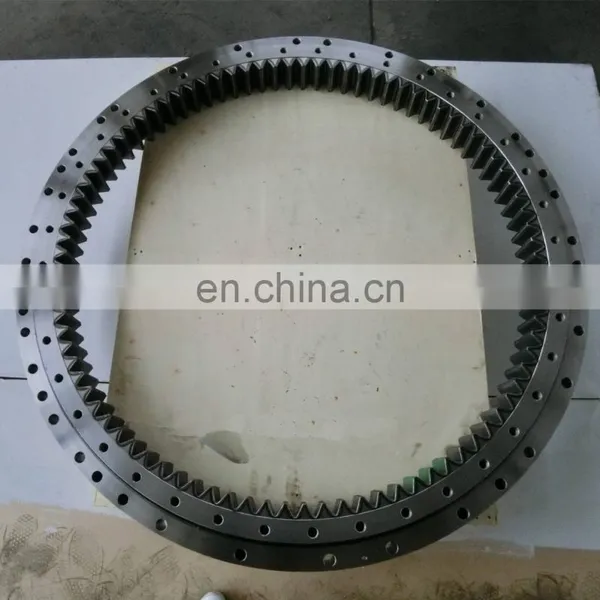

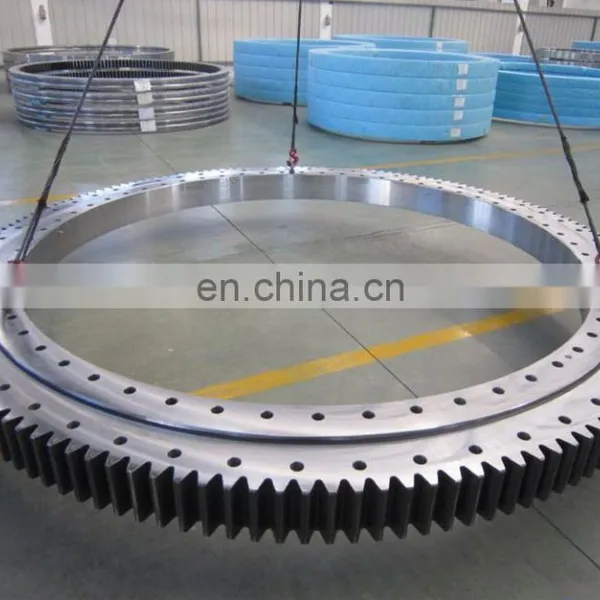

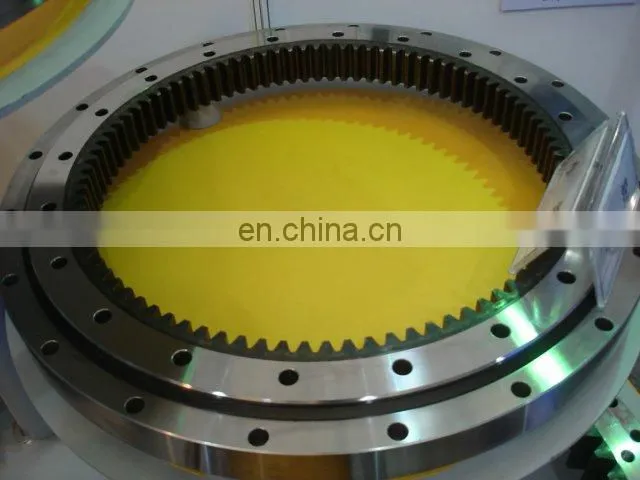

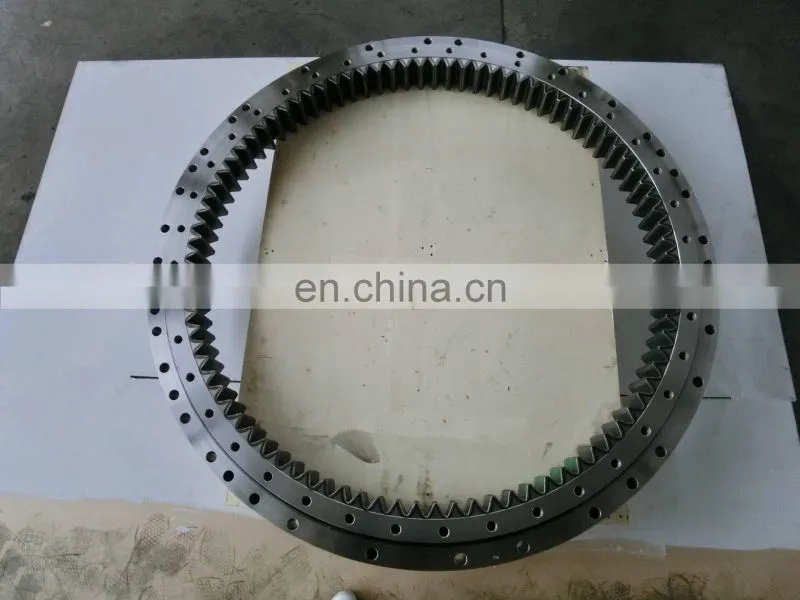

Excavator R335-7 Swing Circle , Swing Bearing R320LC-7A 81N9-01023BG
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Excavator 9169646 ZX200 Swing Circle ZX200-3 Swing BearingNegotiableMOQ: 1 -
High Rebuild Quality EX200-1 Excavator CabinNegotiableMOQ: 1
-
Rexroth Hydraulic Motor A6VE55 A6VE107 A6VE160 Travel MotorNegotiableMOQ: 1
-
For Volvo Excavator EC210B EC240B Bottom Roller EC240B Track RollerNegotiableMOQ: 1
-
Mini Excavator PC20 Rubber Track 300x52.5x80 300x52.5Nx80 300x52.5Wx80 300x52.5x84NegotiableMOQ: 1
Excavator R335-7 Swing Circle , Swing Bearing R320LC-7A 81N9-01023BG
Excavator R335-7 Swing Circle , Swing Bearing R320LC-7A 81N9-01023BG
Excavator R335-7 Swing Circle , Swing Bearing R320LC-7A 81N9-01023BG
| No | Part no. | Description | Model no. | L x W x H (mm) | weight | teeth | outer ring mounting hole | inner ring mounting hole | outer diameter | inner diameter | total height | outer ring height | inner ring height |
| 1 | 81EN-00053GG | Swing Bearing | R250LC9 | 1300 x 1300 x 250 | 354kg | 82 | 34-Φ23 | 36-M24*3 | 1410 | 1131.2 | 121 | 88 | 109 |
| 2 | 81N6-00023BG | Swing Bearing | R210LC7 | 1350 x 1350 x 100 | 274kg | 92 | 30-Φ22 | 36-M20 | 1327 | 1083 | 110 | 89 | 94 |
| 3 | 81N8-00024GG | Swing Bearing | R290LC9 | 1550 x 1550 x 250 | 426kg | 90 | 38-Φ26 | 40-M24*3 | 1526 | 1235 | 122 | 97 | 110 |
| 4 | 81N9-01023BG | Swing Bearing | R320LC7A | 1550 x 1550 x 250 | 426kg | 90 | 38-Φ26 | 40-M24*3 | 1526 | 1235 | 122 | 97 | 110 |
| 5 | 81NA-01022GG | Swing Bearing | R380LC | 1600 x 1600 x 250 | 550kg | 90 | 35-Φ26 | 40-M24 | 1550 | 1236 | 147 | 108 | 135 |
| 7 | 81Q9-01021 | Swing Bearing | R320LC9 - R330LC9 | 1525 x 1525 x 120 | 458kg | 90 | 38-Φ26 | 40-M24*3 | 1526 | 1235 | 122 | 97 | 110 |
| 10 | 81NB-01022 | Swing Bearing | R450LC7 | 1700 x 1700 x 250 | 594kg | 114 | 46-Φ25 | 44-M24*3 | 1675 | 1346 | 132 | 108 | 120 |
Packed in Wooden Pallet
Shipping within 3-8 days after received the payment , will by Sea .
Pls feel free to contact me as follow ways :
Whatsapp : +8613188823210
Wechat : haidelucy
Skype : sdhaide02
Email : lucy(@)
