General Features

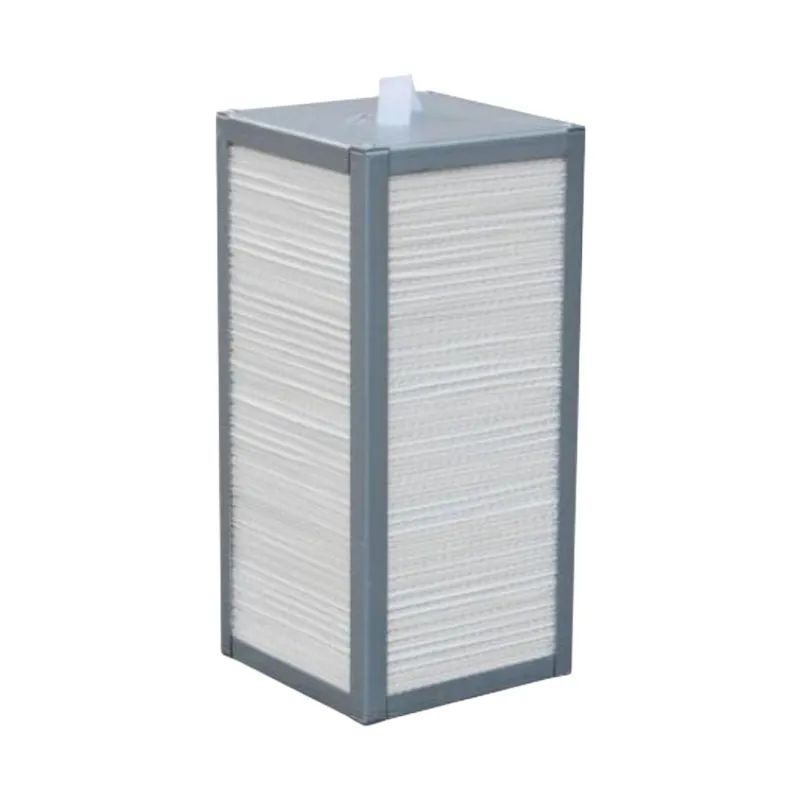

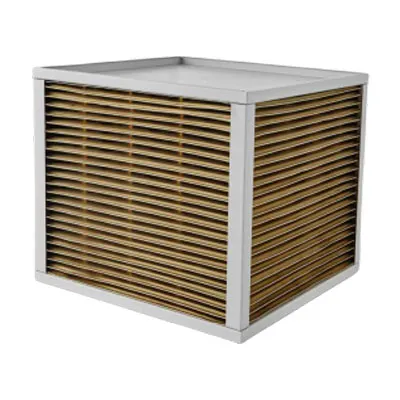

Plate fin enthalpy heat exchanger --- Cross flow
◆ Third generation of E.R. paper is made of special fiber and high-quality corrugated paper
◆ The E.R. paper is flame retardant, mildew proof, can block harmful gases
◆ Standard frame is GI plate; GI frame with painting, Alu-zinc frame, Stainless steel frame & ABS frame are for option
◆ Air flows crosswise, energy recovery efficiency up to 75%

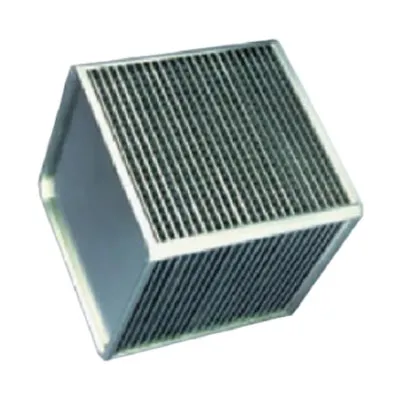

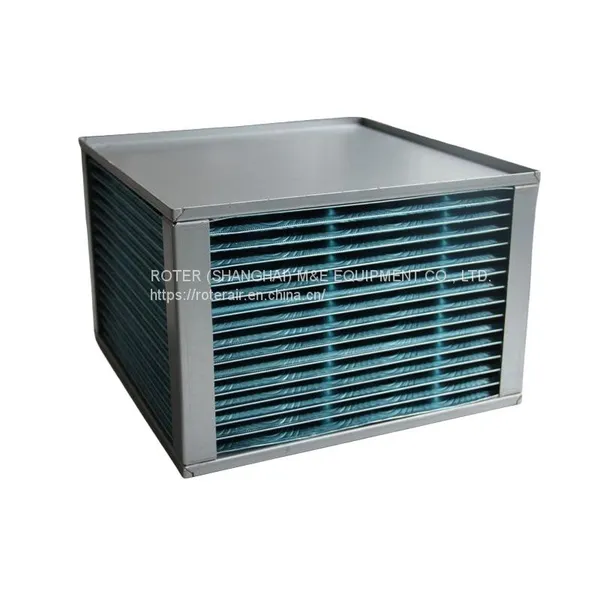

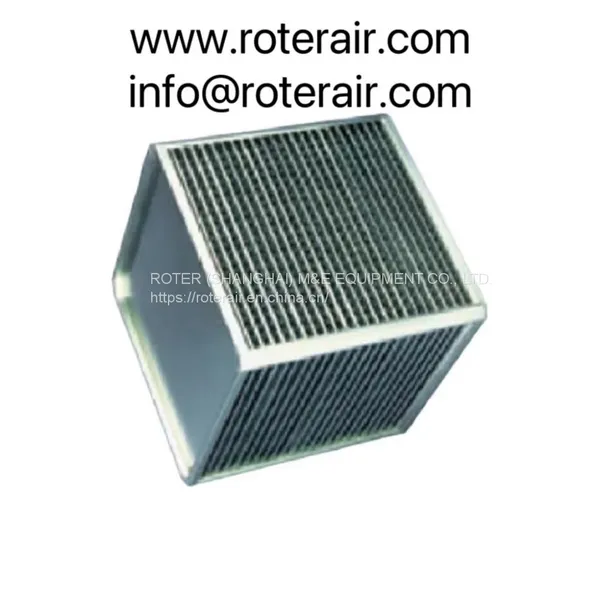

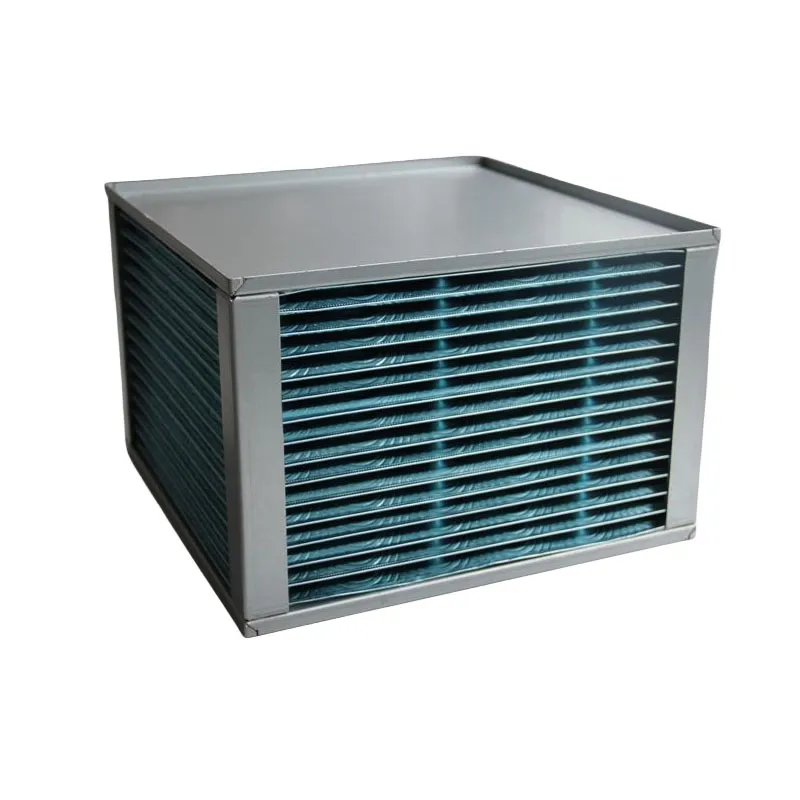

Plate sensible heat exchanger --- Cross flow
◆ Made of hydrophilic aluminum fin, 0.1/0.12/0.15/0.2mm thick based on airflow
and pressure
◆ Epoxy resin coated aluminum fin and stainless steel fin are for option
◆ Standard frame is GI plate; GI frame with painting, Alu-zinc frame, Stainless steel
frame are for option
◆ Air flows crosswise, heat recovery efficiency up to 70%

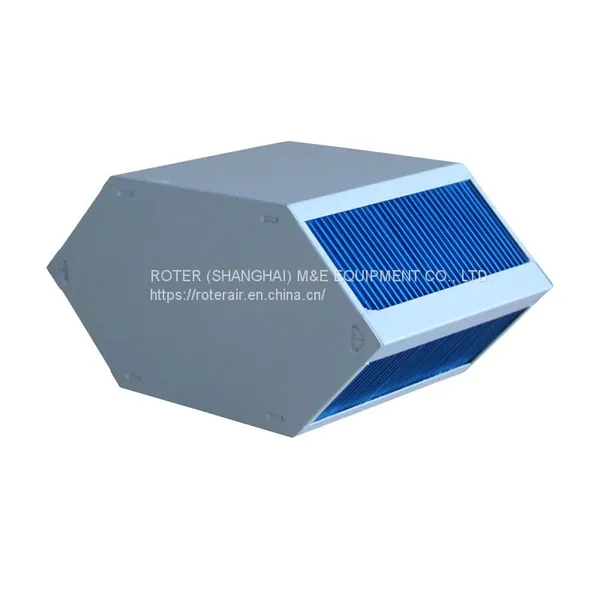

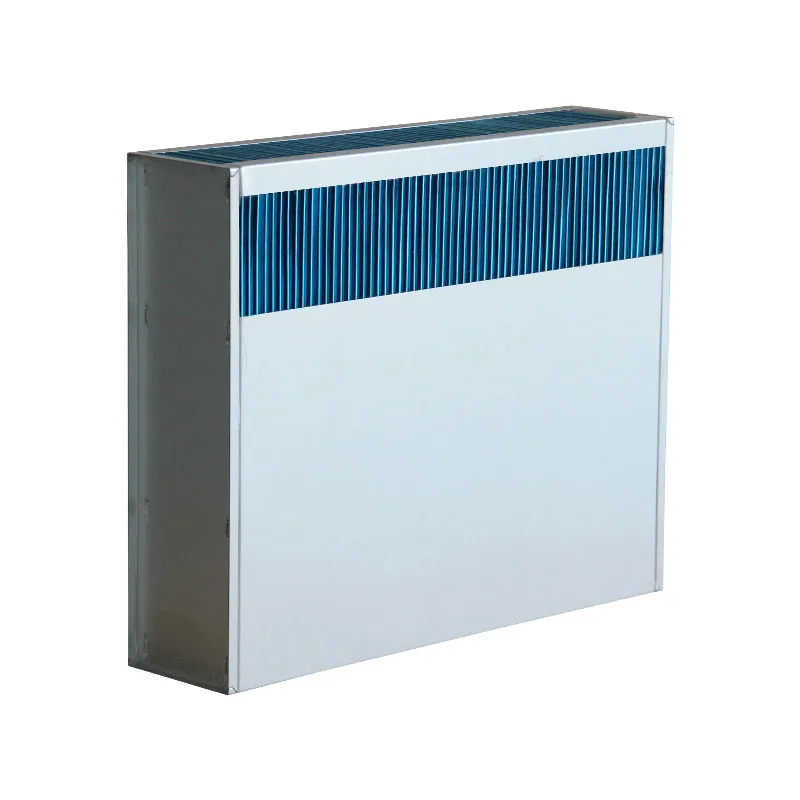

Plate sensible heat exchanger --- Counter flow
◆ Made of hydrophilic aluminum fin, 0.1/0.12/0.15/0.2mm thick based on airflow
and pressure
◆ Epoxy resin coated aluminum fin and stainless steel fin are for option
◆ Standard frame is GI plate; GI frame with painting, Alu-zinc frame, Stainless steel
frame are for option
◆ Air flows oppositely, heat recovery efficiency up to 70%

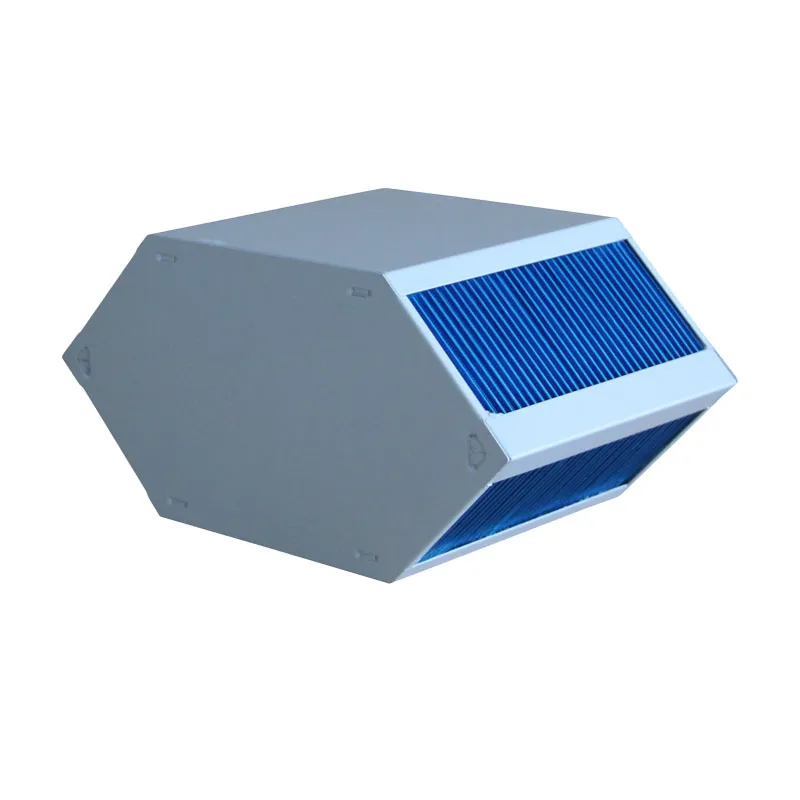

Plate sensible heat exchanger --- Cross counter flow
◆ Made of hydrophilic aluminum fin, 0.1/0.12/0.15/0.2mm thick based on airflow
and pressure
◆ Epoxy resin coated aluminum fin and stainless steel fin are for option
◆ Standard frame is GI plate; GI frame with painting, Alu-zinc frame, Stainless steel
frame are for option
◆ Air flows crosswise and oppositely, heat recovery efficiency up to 80%
For plate sensible heat exchangers, there are different materials available for different applications:
(1) B series: Standard type
Made of hydrophilic aluminum fin, and galvanized steel frame;
Max working temperature is 100ºC; Suitable for almost working conditions.
(2) F series: Anti-corrosion type
Made of epoxy resin coated aluminum fin, and galvanized steel frame;
Max working temperature is 100ºC; Suitable for strong corrosion working conditions.
(3) G series: Temperature resistant type
Made of stainless steel fin, and stainless steel frame, sealed with special sealant;
Max working temperature is 300ºC; Suitable for high temperature airflow working conditions.
