1810 Medium Sized Glass Wood Metal Acrylic Phone Case LED UV Printing Machine
1. Adopting Ricoh Gen6 industrial printhead, original imported Panasonic servo.
2. Maximun print size of 1800mm × 1000mm (5.9′ × 3.3′), print thickness of 180mm.
3. Wide applications and high print resolution of 600 × 2400 DPI.
4. Print C, M, Y, K, Lc, Lm, White ink, Varnish.
5. Cost-effective, Eco-friendly and Easy to operate.
Specifications
| Model | P10R6 |
| Print Size | 1800 × 1000 mm (5.9 × 3.3 ft) |
| Printhead | Ricoh-Gen6 grey level Piezo print head |
| Printhead Quantity | 2-8 pcs (4-8 colors optional) |
| Print Resolution | 600×2400 DPI |
| Material Thickness | Up to 180mm (7in) |
| UV Curing System | LED UV lamp |
| Ink Type | Original imported UV curable ink |
| Ink Color | C, M, Y, K, Lc, Lm, White ink, Varnish (optional) |
| Interface Mode | High Speed USB |
| RIP Software | Photoprint |
| Color Management | International standard ICC |
| Input Format | PDF, JPEG, TIFF, EPS, AI |
| Printer Weight | 1080KG |
| Printer Size | 3950mm[L] × 1770mm[W] × 1400mm[H] (12.9ft×5.8ft×4.6ft) |
| Package Size | 4250mm[L] ×1970mm[W] × 1800mm[H] (13.9ft×6.5ft×5.9ft) |
| Power Requirement | 220V/AC(±10%), 50/60 HZ, 4.8KW |
| Working Environment | Separate, little sunlight, ventilated workshop, Temperature: 18ºC~30ºC(64ºF~86ºF); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm. |

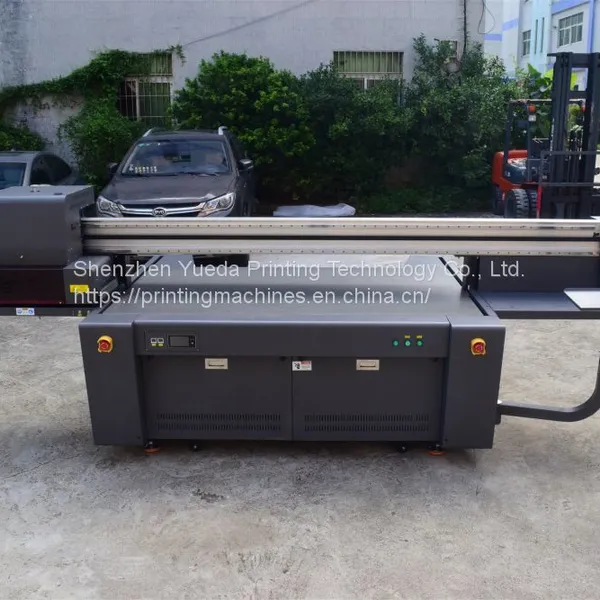

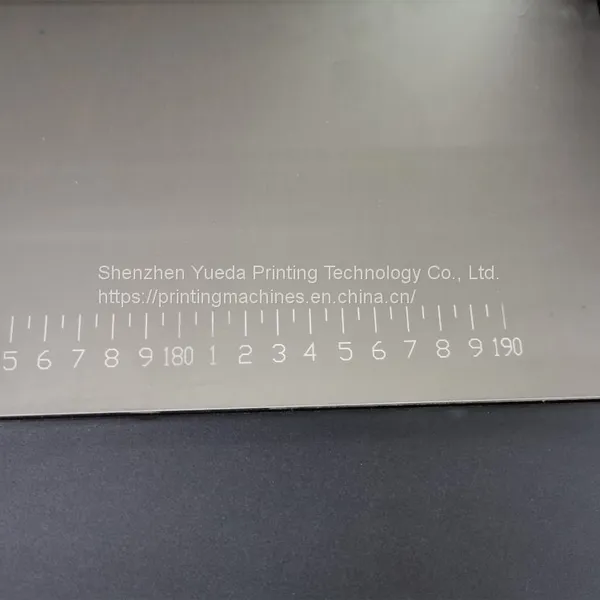

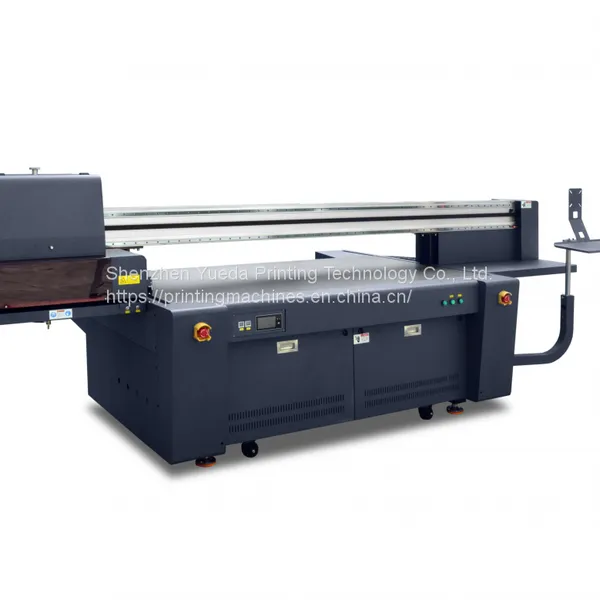

Machine details
Sample shows
Company Information
Yotta is a new hi-tech Enterprise that combines Design, R&D, Production, Sales and Technical Service together.
We have successfully developed UV Flatbed printers, UV Roll to Roll printers and UV Hybrid printer with Ricoh and Kyocera print heads.
With company's development and growth, we also become one of top UV printer manufacturer in China, with over 11 years of rich experience.
We are committed to providing customers with world-class printing equipment as well as professional UV printing solutions. Because we are YOTTA, we will never let you down.
Certifications
Packing&Shipping details
Package details:
1. Export standard wooden package.
2. By ocean freight.
Delivery time: 5~7 working days(Except customized model)
Q: What's the application of UV printer?
A: Extensively applied on various materials for all kinds of industries. For applied industry, see our solutions.
Q: How to buy yueda Printer?
A: List your detailed requirements and email to us,our sales representative will contact you soon. Or you can come to visit us at our plant in Shenzhen.
Q: How to get your service support?
A: Yueda offers easy and on time online service support to our customers.You can also get service through our Branch office in your local side.
