Product Information:

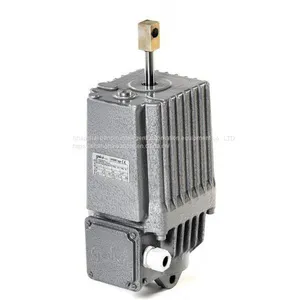

Brand: HYDRO GALVI
Model: a.c. Thrusters
Standard Features:
Chromed stainless steel piston rod
Suitable for ambient temperature from -20 °C to +55 °C
Electric a.c. motor, V. 220/380 – Hz 50 or V. 230/400 – Hz 50 or V. 240/415 – Hz 50, IP.65, class F, star connected
Oil type HLP32, DIN 51525 from HYD.023/05 to HYD.081/06 and type HL10, DIN 51524, part. 3 from HYD.121/06 to HYD.301/06
Self-lubricating bushes for the lower pin
Galvanized hinge for the upper pin
Galvanized screw cap for oil fill and oil drain
Aluminum Motor Housing, Reservoir, and Terminal Box Cover
Epoxy anti-salt paint, final color LIGHT GREY RAL 7001
Foot can be unscrewed and turned 90 degrees for models 121, 201, and 301
Available Optional Items:
Special a.c. electric motor for any Voltage, Hz 50 or Hz 60 (V-Hz)
Long stroke version for models 050, 080, 121, 201, and 301 (.../12)
Lowering valve (not available for Thrusters 024, 031, 051, and 081) (LO)
Lifting valve (not available for Thrusters 024, 031, 051, and 081) (LI)
Internal springs (not available for long stroke Thrusters".../12") (IS)
VITON seals (VIT)
Foot turned 90 degrees for models 023, 030, 050, and 080 (90)
Open position mechanical limit switch (SWMU)
Closed position mechanical limit switch (SWML)
Open position inductive limit switch (SWIU)
Closed position inductive limit switch (SWIL)
Heater V. 110 - Hz 50 or V. 220 - Hz 50 (HEA)
Product Introduction:
HYDRO GALVI offers a range of a.c. Thrusters designed for reliability and performance. These thrusters come with a set of standard features, including a chromed stainless steel piston rod and suitability for operation in ambient temperatures ranging from -20 °C to +55 °C.
The electric a.c. motor is available in various voltage and frequency configurations, with IP.65 and class F ratings. The thrusters use specific types of oil depending on the model for optimal performance.
Additionally, these thrusters feature self-lubricating bushes for the lower pin, galvanized components, and an aluminum motor housing, reservoir, and terminal box cover. They are protected with epoxy anti-salt paint for enhanced durability.
HYDRO GALVI thrusters offer a range of optional items to suit different requirements, including special electric motors, long stroke versions, and various valve options. These thrusters are suitable for a wide range of applications and are designed to provide reliable and consistent performance.
Please contact us for more information or inquiries regarding our range of HYDRO GALVI Thrusters.
