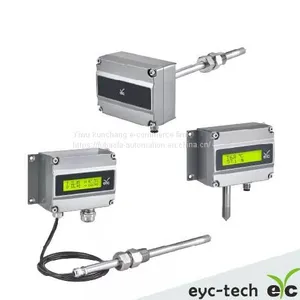

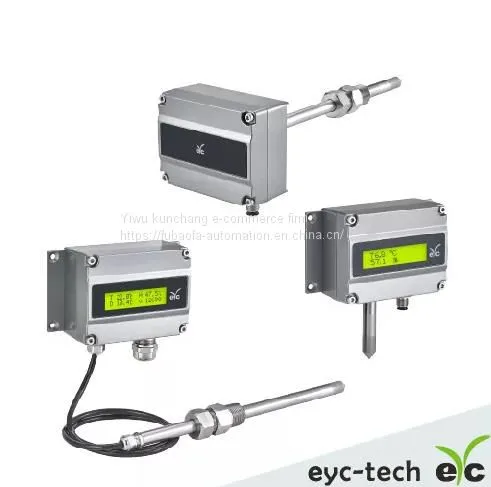

THM80X Series Industrial Grade High Accuracy Temperature & Humidity Transmitter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Original
Place of Origin:
Other Country
Model Number:
THM80X Series Industrial Grade High Accuracy Temperature & Humidity Transmitter
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
7 days
Related Products
-
THM801 THM802 THM803 Industrial Grade High Accuracy Temperature & Humidity TransmitterNegotiableMOQ: 1 Piece -
SICK-IME12-04BPOZCOK Proximity SensorsNegotiableMOQ: 1 Piece
-
KEYENCE FS-N11N Fiber Amplifier Sensor NPN New OriginalNegotiableMOQ: 1 Piece
-
Pressure Sensor Honeywell XPC01DTCNegotiableMOQ: 1 Piece
-
Original SICK KTS-WB9114115AZZZZ SICK Color Code SensorNegotiableMOQ: 1 Piece
Brand Name
Original
Place of Origin
Other Country
Model Number
THM80X Series Industrial Grade High Accuracy Temperature & Humidity Transmitter
Output
Other
Features
● IP65 , rugged aluminum case, fit in variety harsh environment
● Capable of temperature compensation. Linear adjustment temperature & humidity by computer, analog output or option RS-485
● Measure high accuracy Temp. & humidity, reaction quickly, the sensor can work well after temporary condensation, long term stable in high humidity environment
● Process Temp. : up to 200°C, S.S. probe proof pressure : 10 bar, metal connector : installation repeatedly
● Switch multifunction physical quantities : [%RH]、[°C]、[mbar]、[g/kg]、[g/m3]、[kj/kg]
● Calibration physical quantities, measuring range, analog output, station, etc
● Free calibration software : data logger / record 65535 datas / charts
● Capable of temperature compensation. Linear adjustment temperature & humidity by computer, analog output or option RS-485
● Measure high accuracy Temp. & humidity, reaction quickly, the sensor can work well after temporary condensation, long term stable in high humidity environment
● Process Temp. : up to 200°C, S.S. probe proof pressure : 10 bar, metal connector : installation repeatedly
● Switch multifunction physical quantities : [%RH]、[°C]、[mbar]、[g/kg]、[g/m3]、[kj/kg]
● Calibration physical quantities, measuring range, analog output, station, etc
● Free calibration software : data logger / record 65535 datas / charts
Specification
| Input | |
Signal type |
Capacitive humidity sensor & Pt 100 A class |
Output | |
Output |
0 ... 20 mA / 4 ... 20 mA / 0 ... 10 V |
Signal connection |
3-wire |
Modbus |
2 analog / option RS-485 (Programmable) |
Display type |
LCD Module with back light, double line character |
Display range |
upon request, one decimal place |
Height of character |
5.55 mm |
| Accuracy (at 25°C) | |
Temperature |
±0.15°C±0.002°Cxtactual |
Humidity ( 0 ... 90 %RH ) |
Nonlinear error : ±1.2%RH |
Humidity ( 90 ... 100 %RH) |
±2%RH |
Thermal sensitivity Temp. error |
0.05%RH/°C |
Load resistance |
Current output : Max. 500 Ω |
Output calibration( ZERO & SPAN ) |
Software / Keybord |
Response time t90 ( at 25 °C ) |
＜20 sec ( S.S.Metal grid filter with mesh ) |
| Electrical | |
Power supply |
DC 24 V±10% |
Current consumption |
DC 24 V : 60 mA |
Electrical connection |
M type : M12 connector with 2 m cable |
| Environmental | |
Medium |
Air |
Temp. Operating |
Housing : -20 ... +80°C |
Humid. Operating |
Housing : 0 ... 95% (Non-condensing) |
Probe operating |
Wall type : -40 ... +80°C |
Storage temperature |
-25 ... +60°C |
Probe pressure resistance |
10 bar |
| Certification | |
Certification |
CE |
| Protection | |
IP rating |
Housing : IP65；Probe : IP20 |
Electrical protection |
■ Reverse polarity ■ Over-voltage ■ Short-circuit |
| Installation | |
Installation |
THM801 : Wall type |
| Material | |
Housing |
Aluminum alloy |
Probe |
SUS 304 |
Cable |
Teflon |
Weight |
THM801 : 455 g |
