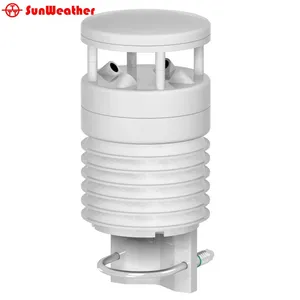

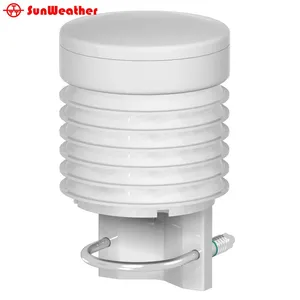

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 thumbnail-3

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 thumbnail-4

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 thumbnail-5

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 photo-1

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 photo-2

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 photo-3

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 photo-4

Weather Station: PC-8 Integrated Automatic Weather Station-PM2.5 PM10 Noise Sensor Outdoor Dust Monitoring System RS485 RS232 photo-5

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Environmental Monitoring Instrument

Warranty:

12 months

After-sales Service:

Online technical support and remote troubleshooting

Contact Supplier Request Quote Chat Now

Jinzhou Sunshine Meteorological Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao, Guangzhou, etc. (anyport in China)

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Type Environmental Monitoring Instrument

Warranty 12 months

After-sales Service Online technical support and remote troubleshooting

Manufacturer Jinzhou Sunshine Meteorological

OEM / ODM Available

Transport Package Standard export packaging (carton or wooden case)

Specification Customized according to measurement parameters

Origin China

1.Product

The PC-8 meteorological environmental station is primarily designed to monitor data such as wind direction, wind speed, atmospheric pressure, ambient temperature, humidity, hazardous gases like CO, NO2, SO2, O3, PM2.5, PM10 in the monitoring area.

Note: This product is a collection of multiple sensors. The types of measurement sensors can be customized and can be matched in any way. The price of the product also depends on the measurement parameters you need. If you want to ask for a quotation, please tell me what needs to be measured. Parameters, voltage, output mode, thank you!

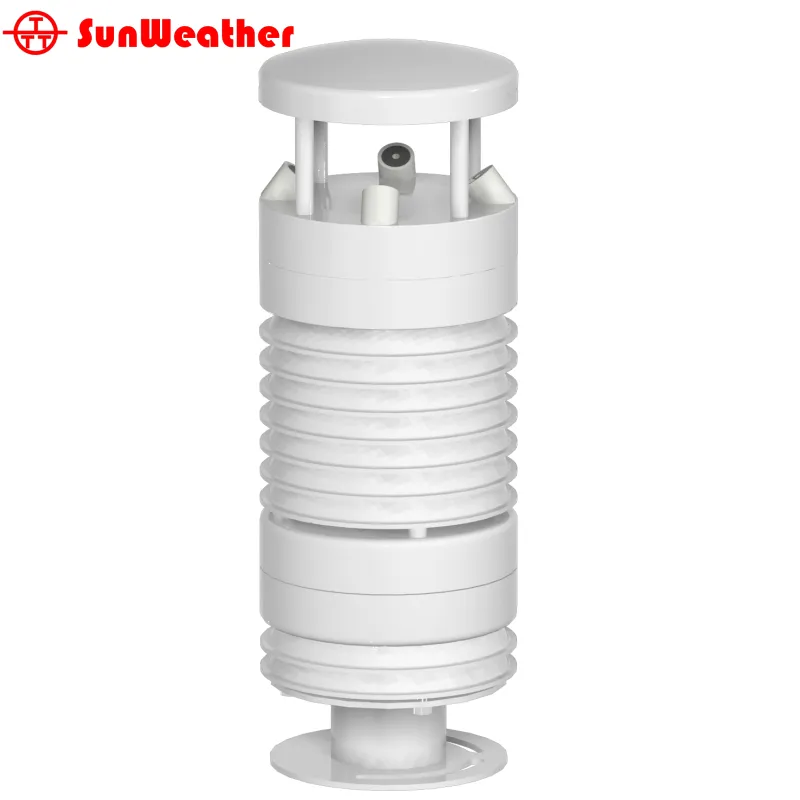

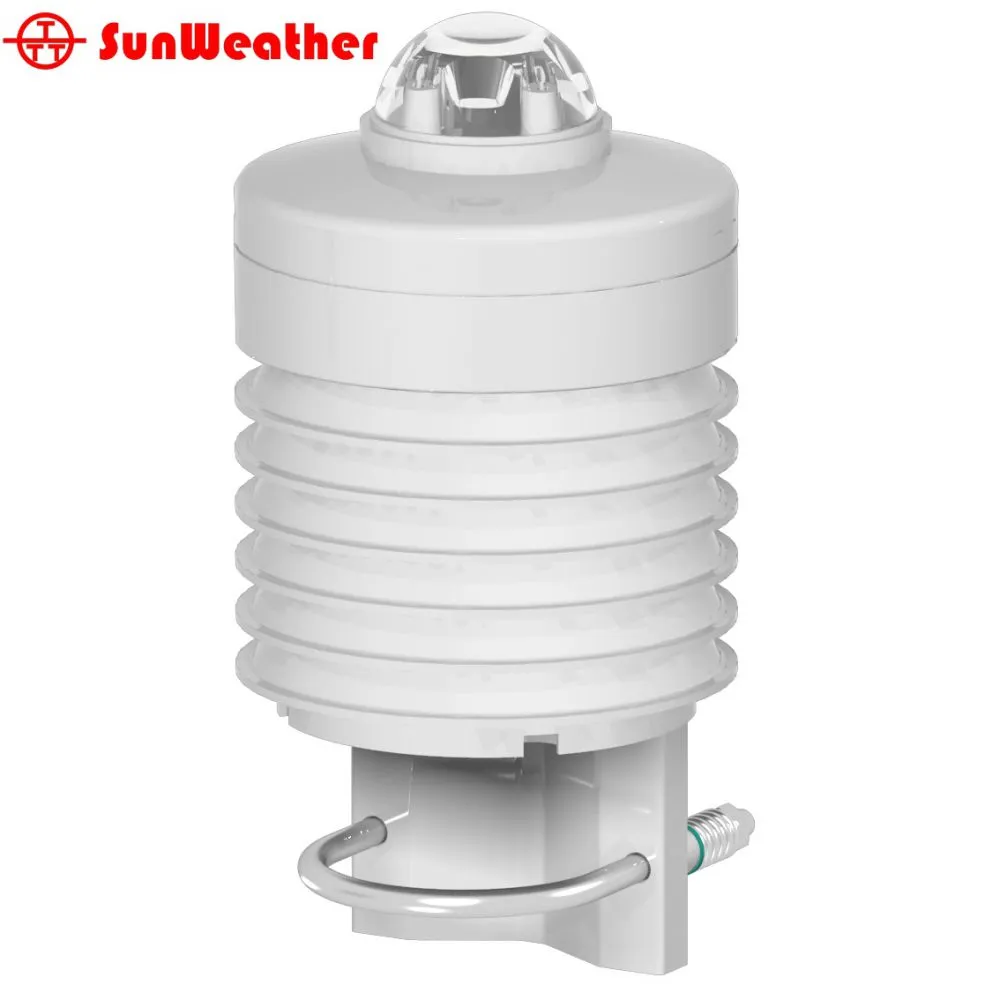

2.Appearance & Configuration

Appearance and configuration may vary depending on the selected measurement parameters.

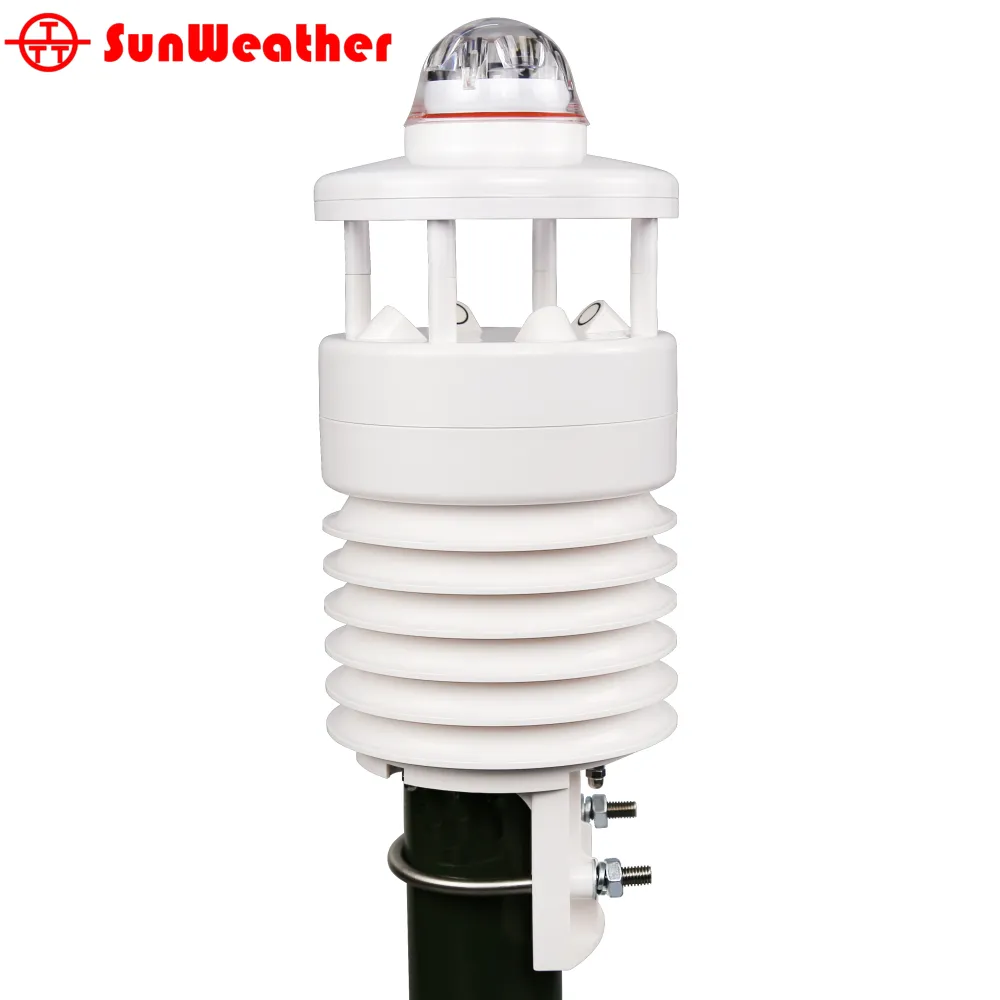

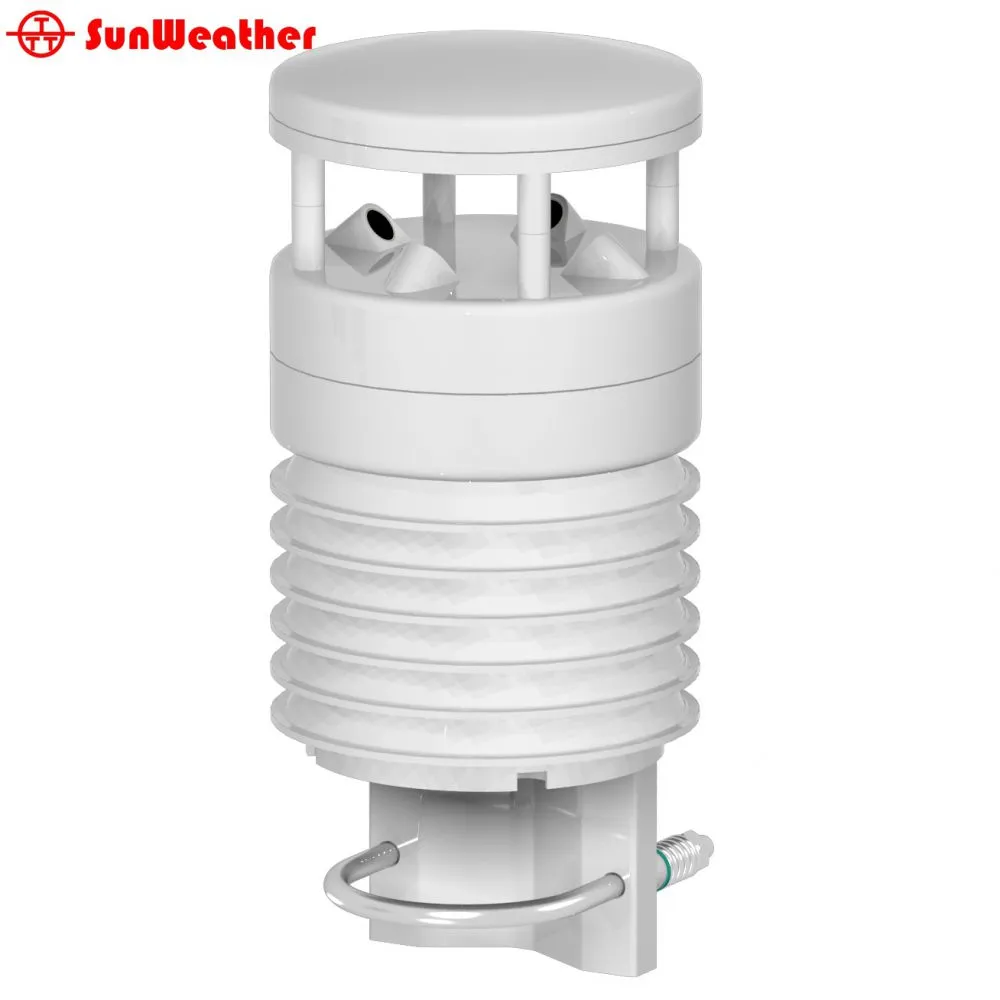

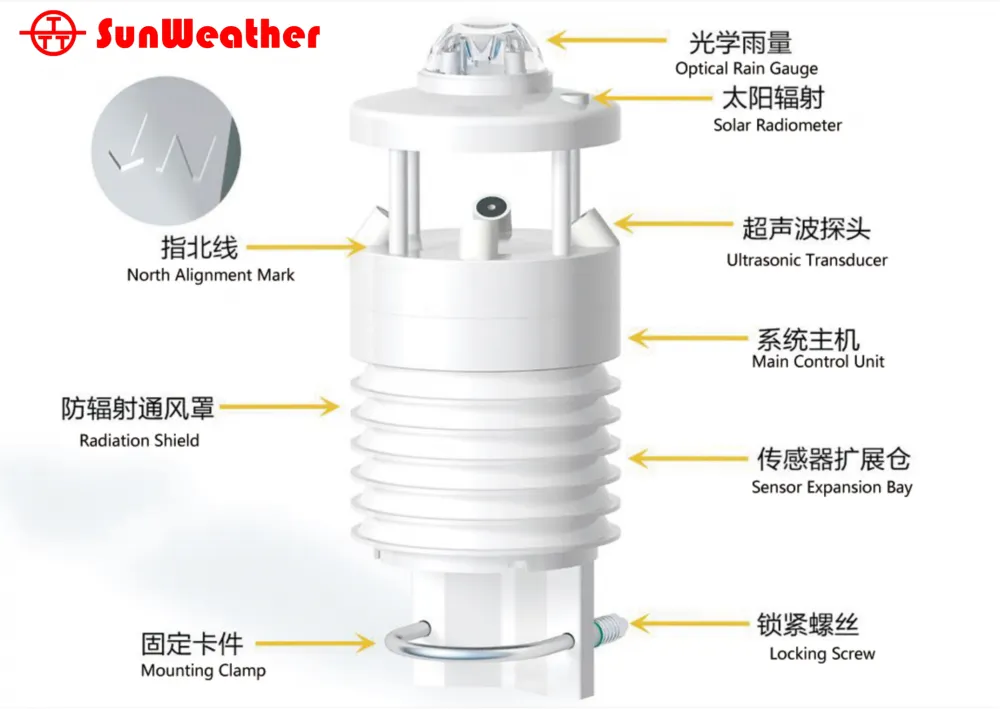

One typical configuration is shown below.

3.Options

1)Free software platform for data management.

2)Offers various communication options. Supports standard RS232/485 communication, compatible with standard MODBUS communication protocol. It can also achieve remote wireless data communication through options like GPRS, RJ45, and wireless transmission.

3)Optional integration of various radiation sensors such as total solar radiation and ultraviolet radiation.

4)Optional integration of a rain gauge sensor for measuring rainfall.

5)Multiple power source options: AC and DC power, solar panels, and vehicle power.

6)Monitoring parameters can be customized according to specific needs.

7)Optional installation method: Fixed mounting or portable stand based on site requirements.

8)Optional mounting mode: Flange base or fixed brackets.

4.Technical Specifications

Mechanical Specifications

IP Rating	IP65
Body Material	ABS

Performance

Power Supply	AC220V / DC12V / DC24V / solar panel
Output	RS485, RS232, GPRS, WIFI
Communication Protocol	MODBUS

Measurement performance

Measurement	Range	Resolution	Accuracy
Environmental Temperature	-40 to +80℃	0.1℃	±0.2℃
Environmental Humidity	0 to 100%RH	0.1% RH	±2%(when≤80%) ±5%(when>80%)
Dew Point Temperature	-40 to +50℃	0.01℃	±0.2℃
Ultrasonic Wind Direction	0 to 359°	1°	±3°
Ultrasonic Wind Speed	0 to 70 m/s	0.1 m/s	±(0.3+0.03V) m/s
Atmospheric Pressure	300hPa to 1100hPa	0.1 hPa	±0.3 hPa
Noise	35 to 100dB	0.1dB	±0.5dB

Optional measurement performance

Measurement	Range	Resolution	Accuracy
Optical Rainfall	0 to 999.9mm	Two options: 0.01mm or 0.2mm	±10%
Total Radiation	0 to 2000W/㎡	1W/㎡	＜5%
Photosynthetic Radiation	0 to 2000W/㎡	1W/㎡	＜5%
Ultraviolet Radiation	0 to 500W/㎡	1W/㎡	＜5%
Illuminance Intensity	0 to 200,000LUX	1LUX	±5%
PM2.5	0 to 1000ug/m³	1ug/m³	±10%FS
PM10	0 to 1000ug/m³	1ug/m³	±10%FS
Ozone (O₃)	0 to 500 ppb	1ppb	±10%FS
Carbon Monoxide (CO)	0 to 4000 ppb	1ppb	±10%FS
Sulfur Dioxide (SO₂)	0 to 500 ppb	1ppb	±10%FS
Nitrogen Dioxide (NO₂)	0 to 500 ppb	1ppb	±10%FS
Carbon Dioxide (CO₂)	0 to 2000ppm	0.1ppm	±40ppm+3%reading value
Volatile Organic Compounds (TVOC)	0 to 2ppm	1ppb	±10%FS

5.Performance

1)The environmental temperature and humidity sensor measures environmental temperature, environmental humidity, and dew point temperature. Its output can be analog or digital.

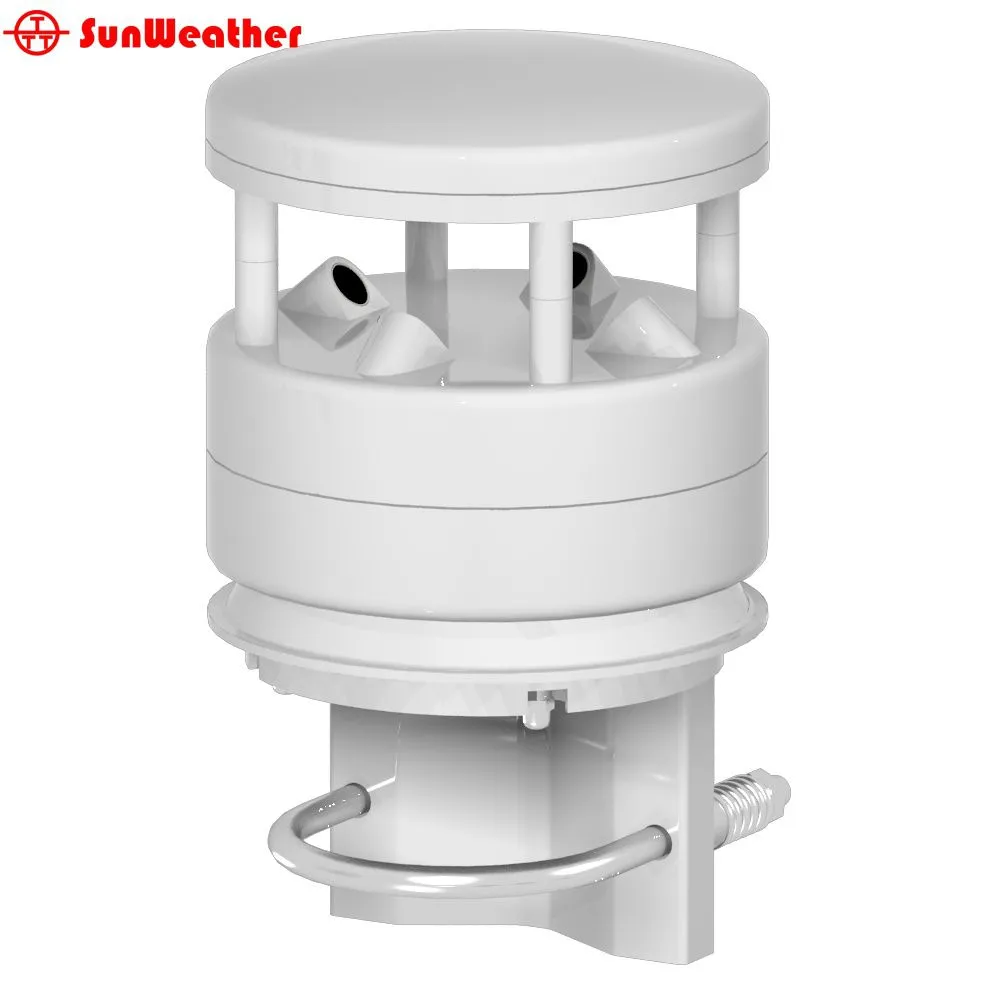

2)The ultrasonic anemometer probe uses ultrasonic principles to measure wind direction and wind speed.

3)Rainfall is measured using optical principles.

4)The solar radiation sensor utilizes photovoltaic principles to measure total solar radiation, ultraviolet radiation, and more.

5)The barometric pressure sensor measures atmospheric pressure.

6)The dust sensor measures PM2.5 and PM10 in the air.

7)The gas module is used to measure air quality parameters.

8)The CO2 sensor uses infrared principles to measure carbon dioxide content in the air.

6.Feature

1)All-in-one design, flexible sensor configuration for customizable services.

2)Stainless steel lightweight metal bracket and outdoor protective casing. Portable anti-seismic structure. Lightning-proof and immune to interference, operates automatically regardless of environmental conditions.

3)Utilizing a microprocessor as the main CPU, with built-in substantial memory.

4)Power outage protection feature.

5)Networked base station deployment model, data monitoring achievable through local networks or wireless networks.
