Help CenterZL-2 Model Steam Air Heater With Left-Right Circulation
Related Products
-
ZL-3 Model Steam Air Heater With Upper Outlet and Lower InletUS$ 3900 - 6100MOQ: 1 Set -
ZL-1 Model Steam Air Heater With Upper Inlet and Lower OutletUS$ 2900 - 4600MOQ: 1 Set
-
DL-1 Model Electric Air Heater With Upper Inlet and Lower OutletUS$ 2900 - 4600MOQ: 1 Set
-
DL-2 Model Electric Air Heater With Left-Right CirculationUS$ 3900 - 6100MOQ: 1 Set
-
DL-3 Model Electric Air Heater With Upper Outlet and Lower InletUS$ 3900 - 6100MOQ: 1 Set

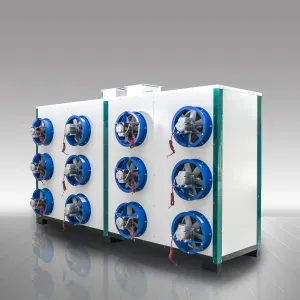

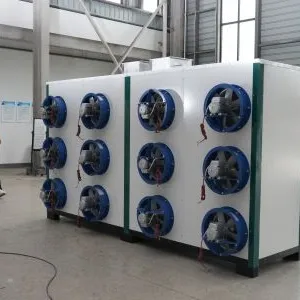

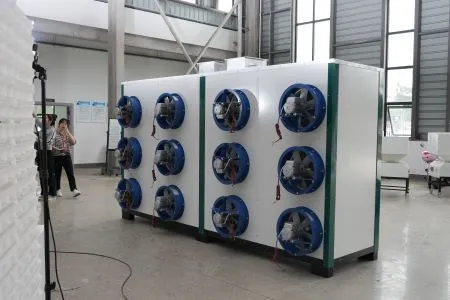

ZL-2 steam air heater is consists of 7 parts: steel-aluminum radiator fin tube + electric steam valve + drain valve + insulation box + fan+ Fresh air damper + electric control system. It is specially designed to support the left and right circulation drying room. For example, the 100,000 kcal model drying room, it is equipped with 6 fans, three on the left and three on the right. When the three fans on the left rotate clockwise, the three fans on the right rotate counterclockwise in a cyclic alternating manner, forming a relay, The left and right sides serve as air inlets and outlets alternately, taking out all the heat generated by steam heater. It is equipped with an electric fresh air damper to supplement fresh air in coordination with the dehumidification system in the drying room/drying place.
Advantages/features
1.Simple structure and easy installation
2. Large air volume and small wind temperature fluctuation
3. Steel-aluminum finned tubes, high heat exchange efficiency. The base tube is made of 8163 seamless tube which is pressure-resistant and durable;
4. Electric steam valve controls the amount of inlet, automatically cuts off or opens according to the set temperature, so that can accurately controls the temperature.
5. High-density fire-resistant rock wool insulation box to avoiding heat loss
6. High temperature and high humidity resistant fan with IP54 protection rating and H-class insulation rating.
7. eft and right fans run alternately in cycles to ensure even heating
8. Automatically replenish fresh air
