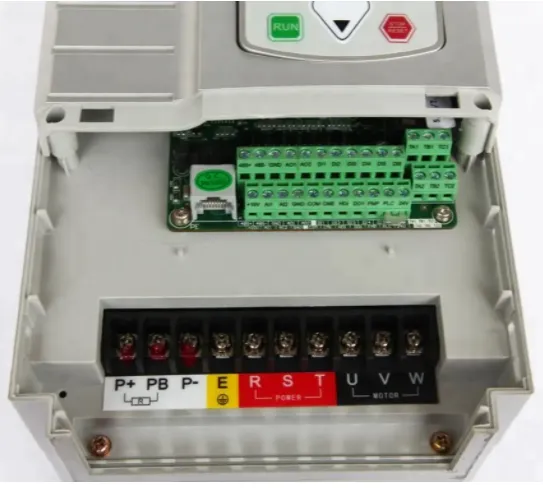

AC380V 15Kw 20HP Motor Variable Frequency Inverter
Key attributes
EMHEATER has been making effort in drive and control field!
EMHEATER has been adhering competitive price for customers!
EMHEATER has been taking care of developing together with partners!
As a professional manufacturer of industrial automation products, we are always dedicated to soft starter, frequency inverter, servo motor and drive, EMI filters, harmonic wave AC choke, sine wave filter, brake units and resistor.
We have following mature series products:
1. EM12 series vector control inverter. (220V~690V:0.75KW~630KW).
2. EM12-SP series solar pump inverter. (220V~690V:0.75KW~630KW).
3. EM-GJ/GS series soft starter, (220V/380V~480/690V:5.5KW~ 600KW).
4. EM-GW series online soft starter 380V up to 525V on power range from 11KW to 600KW. Directly run AC motor. LCD display screen.
5. EM-GB series built-in bypass soft starter on 380V from 5.5KW to 400KW. Directly run AC motor. LCD display screen.
6. EM-GS series soft starter on 220V up to 690V from 5.5KW to 650KW. LCD display screen.
7. EM-HS series high voltage soft starter on 6KV to 10KV from 220KW to 11500KW.
8. EMA to EMD series servo motor drive system, (220~380V;0.2~22KW).
And relative accessories(filter:choke:resistor).
Feature:
EM12 is first class frequency inverter with very strong software and hardware.
It has servo drive feature,with perfect speed control mode,and excellent torque control mode.
It can save 2 group motor parameters ,and can drive synchronous motor and asynchronous motor.
It has sensor-less vector control(SVC),vector control+ PG; V/F control and V/F separation control.
It has 49 kinds digital input functions and 38 kinds digital output functions.
It has S curve of acceleration and deceleration,user can self defined S curve turning time.
The IGBT carrier frequency can auto adjustment according to heat sink temperature.

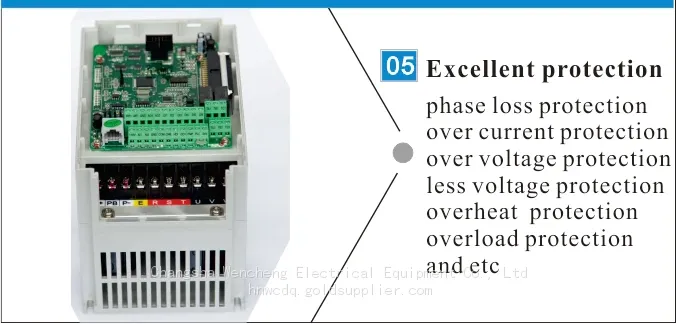

35 kinds protection function,including auto detecting short circuit after power on.
Including textile swing frequency and skip frequency function,etc.
Voltage Range:220V~240V; 380V~440V.
Input Frequency Range:45~65Hz.
Output Voltage Range:0V~rated input voltage.
Output Frequency Range:V/F( 0~3000Hz); Vector Control(0~300Hz).
Overload Capacity:60s with 150% of rated current,3s with 180% of rated current.
From 0.75~7.5KW Plastic house; 11~400KW is metal house.
Speed Accuracy: ±0.5%(SVC); ±0.02%(VC).
Pulse setting input: 0Khz~100Khz.
All model built-in RS485 card,and approved by CE.
EM12-G3/P3 models are integrated IGBT.
