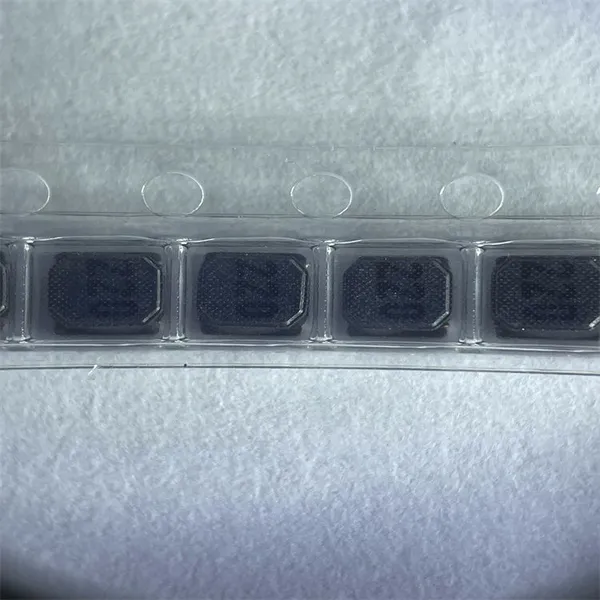

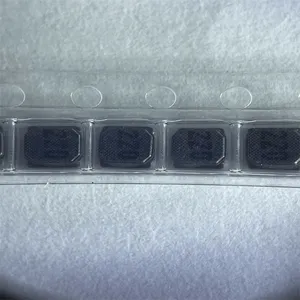

Help CenterNR3015T220M TAIYO YUDEN Power Inductors - SMD RPLCMT PN 963-LSXBD3030QKT220M NEWER VERSION 963-NRS3015T220MNGH
Related Products
-
SRP4012CC-3R3M Bourns Power Inductors - SMD Ind,4.45x4.06x1.0mm,3.3uH+/-20%,2.3A,shdUS$ 0.05 - 1MOQ: 1 Piece -
DO5040H-333MLD Coilcraft Power Inductors - SMD 33uH Unshld 20% 4.5A 37mOhmsUS$ 1 - 4MOQ: 1 Piece
-
NLCV32T-101K-PF RF Inductors - SMD SUGGESTED ALTERNATE NLCV32T-101K-EFUS$ 0.07 - 0.16MOQ: 2000 Pieces
-
CDRH104RNP-3R8NC Power Inductors - SMD 3.8uH 5.5A SumidaUS$ 0.73 - 1.7MOQ: 1 Piece
-
SRN3015-220M Bourns Power Inductors - SMD 22uH 20% SMD 3015US$ 0.17 - 0.3MOQ: 10 Pieces
Mfr. #:
NR3015T220M
Manufacturer: TAIYO YUDEN
Product Category: Power Inductors - SMD
RoHS: Details
Type: Power Inductor
Termination Style: SMD/SMT
Package / Case: 3015
Shielding: Shielded
Inductance: 22 uH
Tolerance: 20 %
Maximum DC Current: 470 mA
Maximum DC Resistance: 624 mOhms
Saturation Current: 470 mA
Minimum Operating Temperature: - 25 C
Maximum Operating Temperature: + 120 C
Q Minimum: -
Mounting Style: PCB Mount
Length: 3 mm
Width: 3 mm
Height: 1.5 mm
Diameter: -
Core Material: Ferrite
Series: NR
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Application: Power
Brand: TAIYO YUDEN
Core Type: Wirewound
Product: Power Inductors
Product Type: Power Inductors - SMD
Self Resonant Frequency: 20 MHz
factory pack quantiy: 2000
Subcategory: Inductors, Chokes & Coils
Termination: Standard
Test Frequency: 100 kHz
Part # Aliases: LSXBD3030QKT220M LLXBD3030QKT220M
Unit Weight: 0.001411 oz
