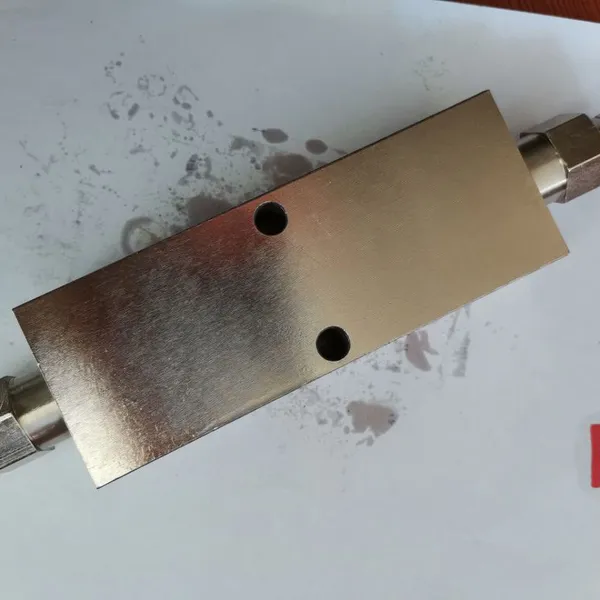

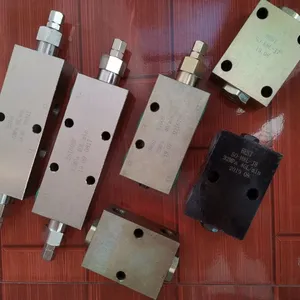

Help CenterA-VBDE/FL2/TR38 Marine Cylinder Hydraulic Components Accessories Balance Valve VBDE/TR38
Related Products
-
ZT-L12G-OT/OW/YW Series (50l/min)Integral Hydraulic Valve Multi-way Reversing ValveDCV40NegotiableMOQ: 30 Pieces -
P40-T/AI P80/OT-2 ZT-L20FPneumatic Multi-way Valve Wind Control HydraumaticNegotiableMOQ: 30 Pieces
-
DCV40-OT/2OT/3OW/4Integrated Chinese Made Multi-way Directional Valve Hydraulic DistributorNegotiableMOQ: 30 Pieces
-
Walvoil Series Hydraulic Multiway Valve,SD5/4-P(KG4) 4-way SD5/3 Series SD5/2NegotiableMOQ: 30 Pieces
-
P40-T/OO Drilling Rig Hydraulic Valve P80-3OT High Pressure Cylinder Motor Control Valve P120-A1T Multi-way ValveNegotiableMOQ: 30 Pieces
The multi-way reversing valve and distributor are a combination valve composed of a check valve, a safety valve, an oil intake body, an oil return body and a plurality of reversing valve pieces. It has the characteristics of high working pressure, compact structure, good safety valve performance, not easy to leak, reliable operation, good versatility and so on.
Technical Specification. Technical specification
Valve can be Couplet number: 1-20 couplet
Spool valve function: A.O.P.Y., etc
Nominal size:8 10 12 15 20 25 32
The Joining port of the thread interface is M18* 1.5M22 * 1.5M27 * 2M33 *2
G3/8 G1/2 G3/4 G1 (three, four, six, one inch) can be customized on request.
Spool returning: Automatic spring return T or ball positioning W.
Pressure grade: 16MPA 20MPA 31.5MPA Available
A check valve is provided inside the valve disc to prevent oil backflow. The oil inlet valve disc has an overflow valve to control the pressure of the entire system. Overload valves can be installed according to customer requirements to meet different execution
Mechanism load required. And with series high pressure output port to provide power source for other hydraulic components. The reversing valve can be used for wrecker trailers, forklifts, sanitation trucks, lifting and transportation machinery, mining machinery, agricultural machinery, rollover dump trucks, Marine machinery, lifting equipment, etc.
For more information, please consult

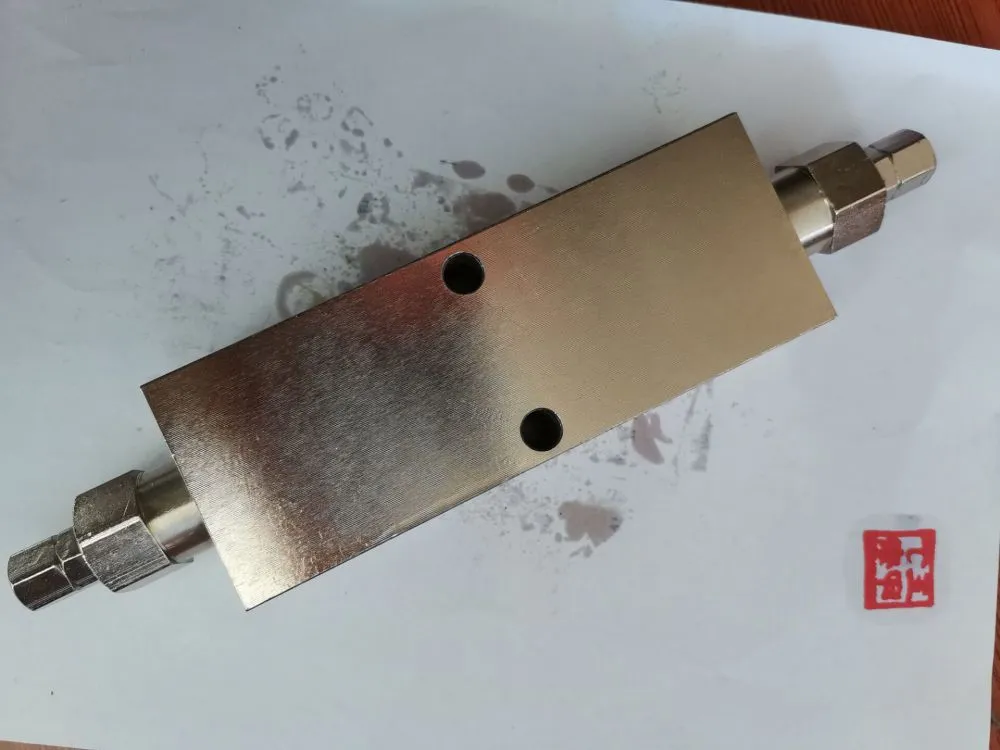

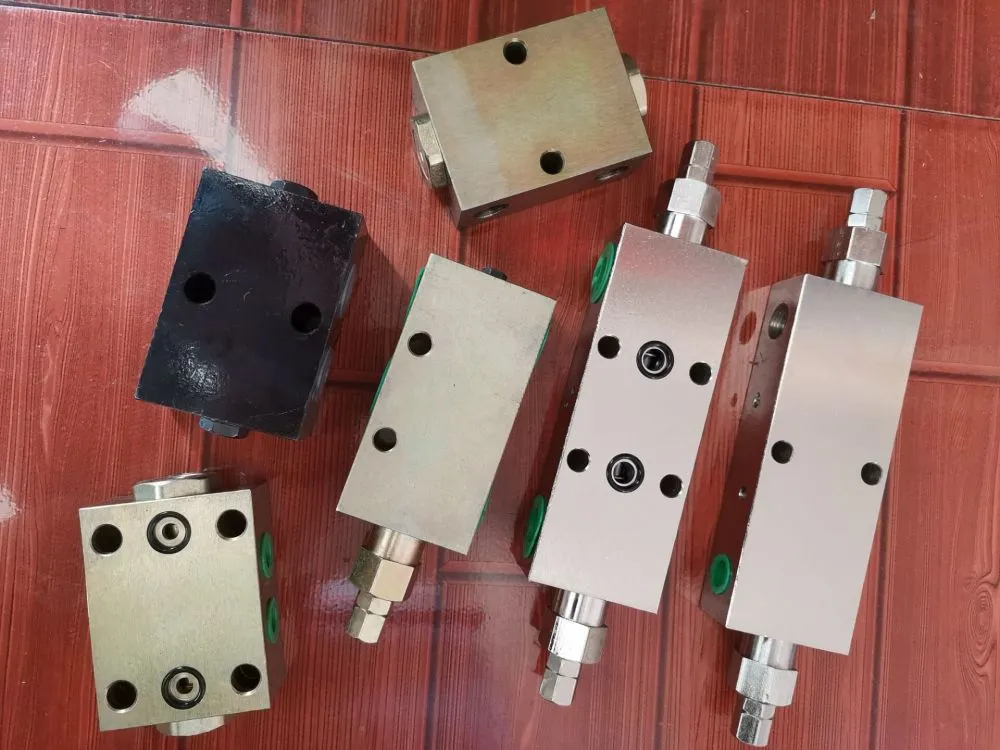

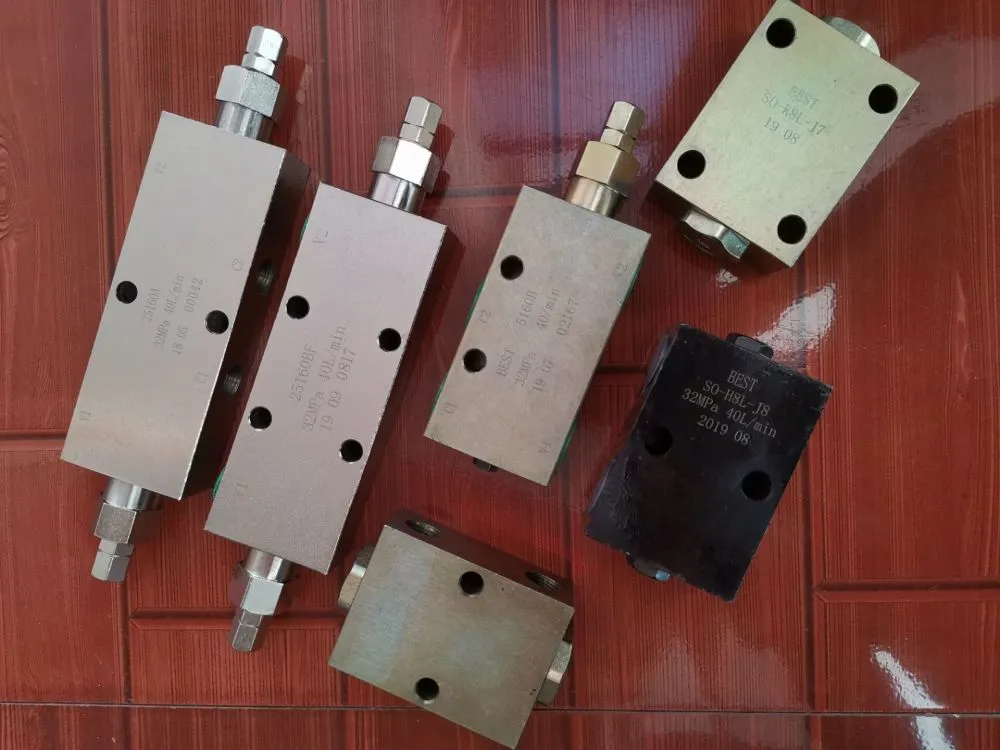

Product display:
