Help CenterHot Sale Printing Machinery Factory TM-3050D Sign Flip Type Screen Printing Machine
Related Products
-
TM-3045Z Ultraprecision Vertical Screen Printer Powered by Imported Servo MotorNegotiableMOQ: 1 Set -
TM-D85220 Electric Large Flat Screen PrinterNegotiableMOQ: 1 Set
-
Vertical Servo-driven Precision Screen Printing Machine With T-slot & Vacuum Shuttle TableNegotiableMOQ: 1 Set
-
TM-FPC5070 High-precision CCD Vision Alignment Automatic Screen Printing MachineNegotiableMOQ: 1 Set
-
TM-5070A Singapore Double-servo Precision Screen Printing Machine With Ink Drip Prevention SystemNegotiableMOQ: 1 Set
Material thickness?
What is the minimum distance between the lines of the pattern?
How much overlap between the next color and the previous color?
The minimum distance between each color and the edge?

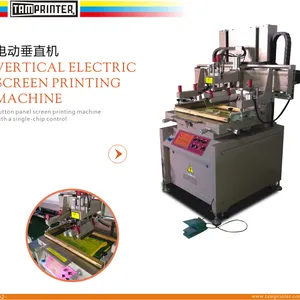

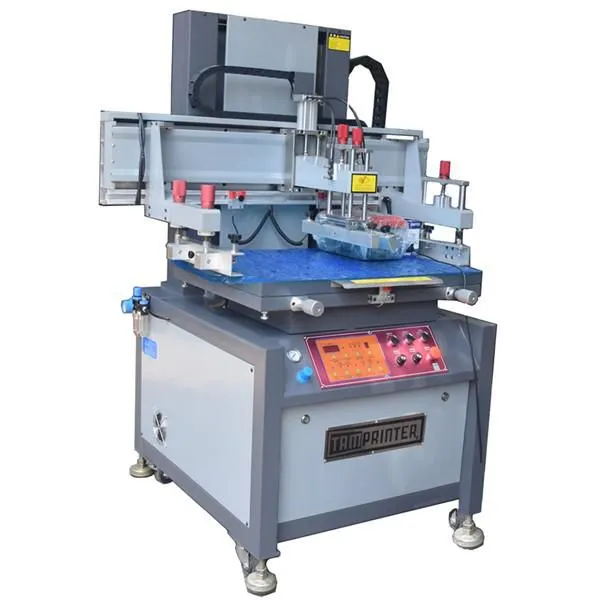

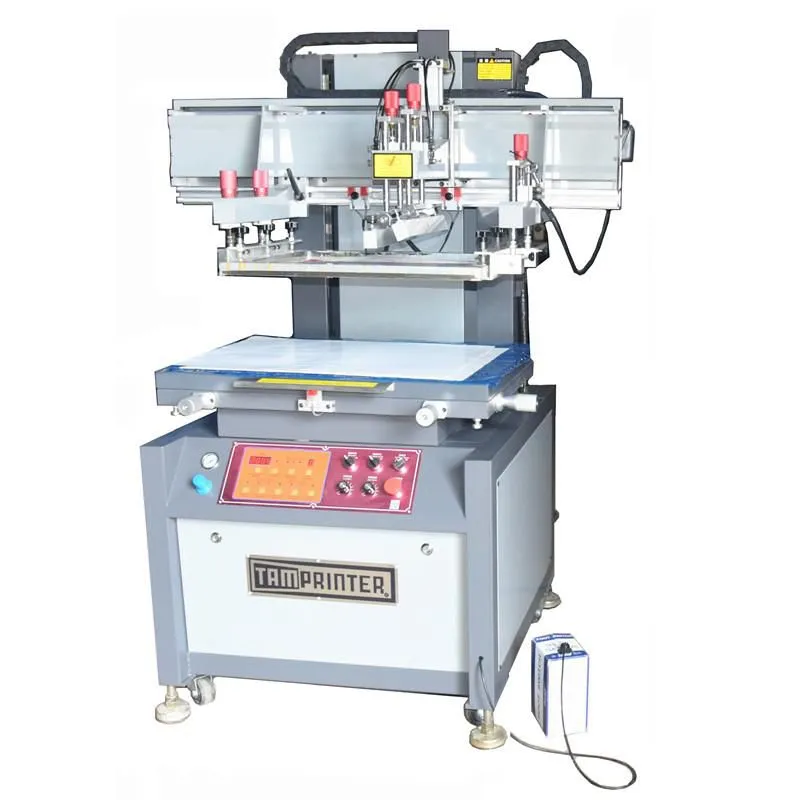

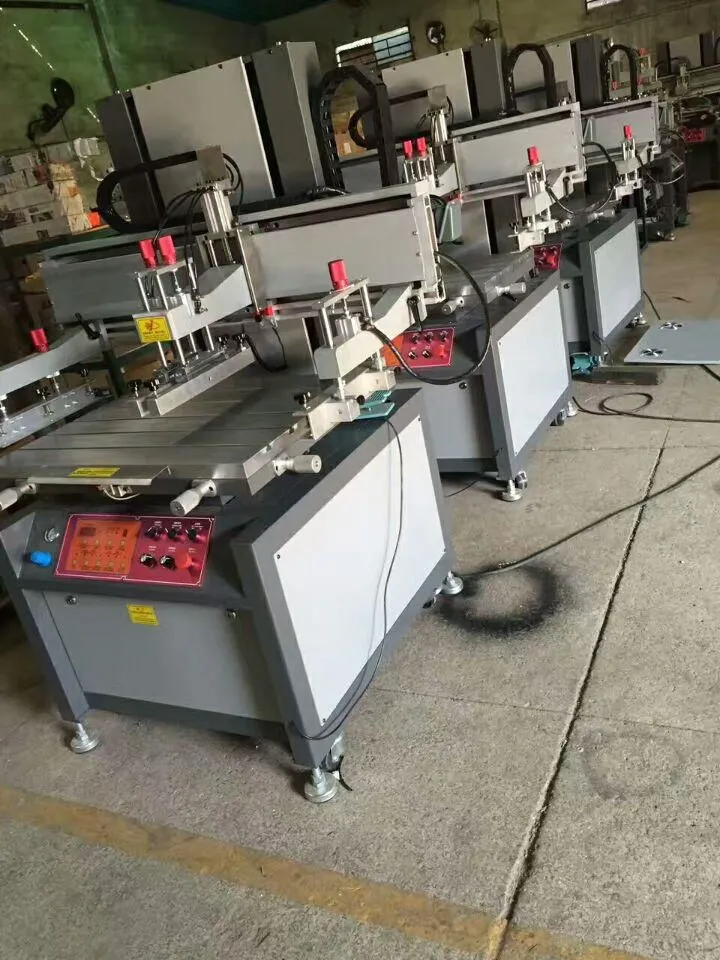

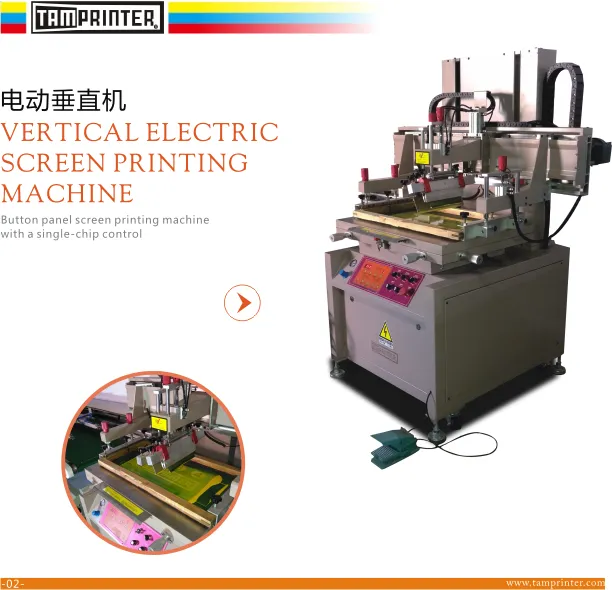

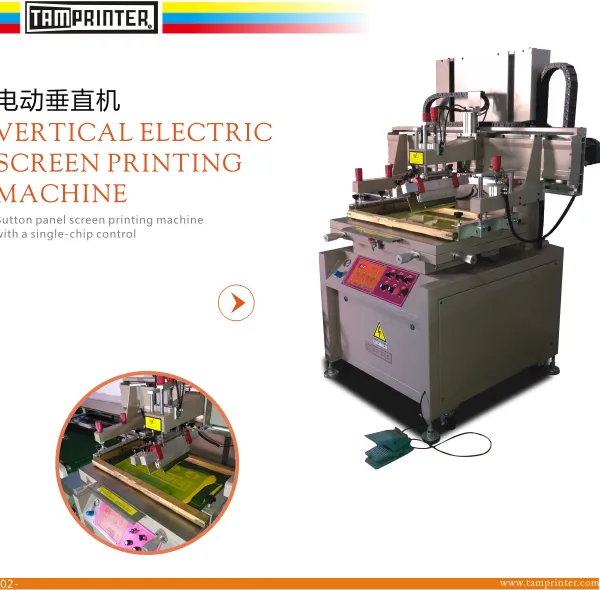

TM-3050D Button panel screen printing machine with a single-chip control
video link: /v_show/id_XMTI2ODc5NTkwMA==.html
/tamprinter/videos/vb.100008038263737/1860141177597140/?type=2&video_source=user_video_tab
Widly used in membrane switches, hot transfer printing, water transfer printing, PCB, LED, SMT, Solder paste printing, Plastic, glass, ceramics, metal, leather, keyboard, textile printing
Technical parameter:
Model No. |
TM-3050D |
TM-5070D |
TM-6090D |
TM-70100D |
single-chip control |
X/Z Common motor |
X/Z Common motor |
X/Z Common motor |
X/Z Common motor |
Print area |
300X500mm |
500X700mm |
600X900mm |
700X1000mm |
Table size |
400X600mm |
600X800mm |
700X1000mm |
800X1100mm |
Max frame |
550X750mm |
600X1000mm |
800X1200mm |
900X1350mm |
Printing thickness |
0~40mm |
0~ 50mm |
0~ 50mm |
0~ 50mm |
Overlay accuracy |
0.01mm |
0.015mm |
0.02mm |
0.02mm |
Platform precision(mm) |
About +/-0.04 |
About +/-0.06 |
About +/-0.075 |
About +/-0.075 |
Printing pressure |
4-8kgf/cm2 |
4-8kgf/cm2 |
4-8kgf/cm2 |
4-8kgf/cm2 |
Air pressure |
0.5~0.6(Mpa) |
0.5~0.6(Mpa) |
0.5~0.6(Mpa) |
0.5~0.6(Mpa) |
Air consumption |
35L/min |
35L/min |
35L/min |
35L/min |
Printing speed |
960pcs/h |
1000pcs/h |
900pcs/h |
900pcs/h |
Power |
220V/2.5KW |
220V/2.5KW |
380v /2.5kw |
380v /2.5kw |
Dimensions (LXWXH)mm |
980X820X1580mm |
1260mmX900mmX1680mm |
1500X1070X1750mm |
1550X1200X1750mm |
Weight |
280kg |
420kg |
480kg |
550kg
|
if add robot arm add $3000
Application:
Mobile phone cover, LED backlight, Tablet PC cover.
Features:
1. The screen printing powered by imported servo motor, printing more stable.
2. A variety of accessories by the customer freedom of choice, choose more flexible.
3. Hard alumina Taiwan version and more effective to prevent the glass scratches.

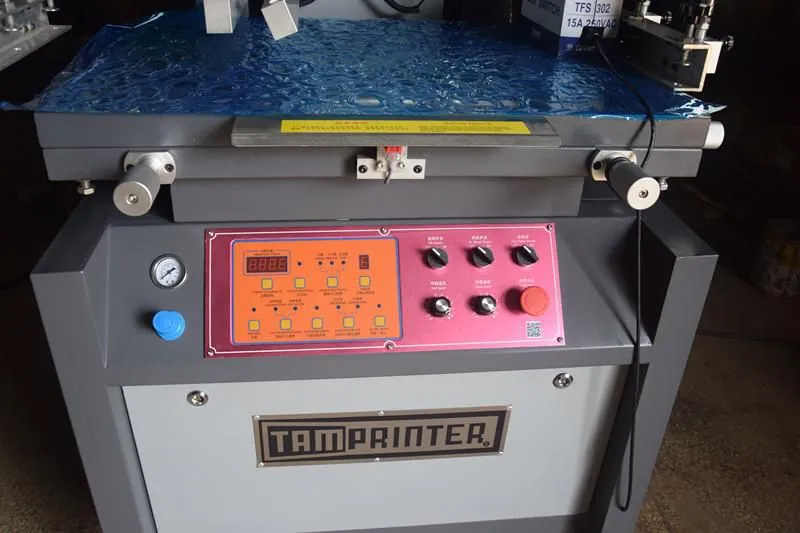

4. Touch screen controls, a variety of fine-tuning the details can be precisely controlled.
Additional Info.
Payment terms: T/T, L/C ,Western Union
Packing: Plywood
Lead time: 5 days after confirmed payment
Sku: 10 sets
Standard certification: CE
Minimum Order: 1 set
Price term: CIF/FOB/CFR/FCA/EXW
hot keys: Glass screen printing machine
Precision ELECTRIC screen printing machine for color box print glue
How to wipe off the silk screen error on the product: The nail removal water contains acetone.
The process flow of color box screen printing glue: offset printing-screen printing-die-cutting-gluing box.
1. Silkscreen: Silkscreen is a kind of photoresist printing ink made of fine-porous filter membrane made of nylon silk and coated with a special photosensitive solution on it. It has good adhesion, abrasion resistance and chemical resistance. The designed pattern is made into a film by CDR software, and then it is made by exposure machine.
According to different materials and colors, it is generally divided into 4 steps:
(1). Color separation Divide the picture into three primary colors cmy, cyan and magenta;
(2). Screening Select different dot sizes and network lines according to the requirements of different materials;
(3). Development Generally, chemicals such as oxalic acid are used to make the image and text part chemically react to form an image.
(4).Fixing The semi-finished product obtained after developing is mixed with white plain paste and dried to obtain the finished product.
Widly used in membrane switches, hot transfer printing, water transfer printing, PCB, LED, SMT, Solder paste printing, Plastic, glass, ceramics, metal, leather, keyboard, textile printing
