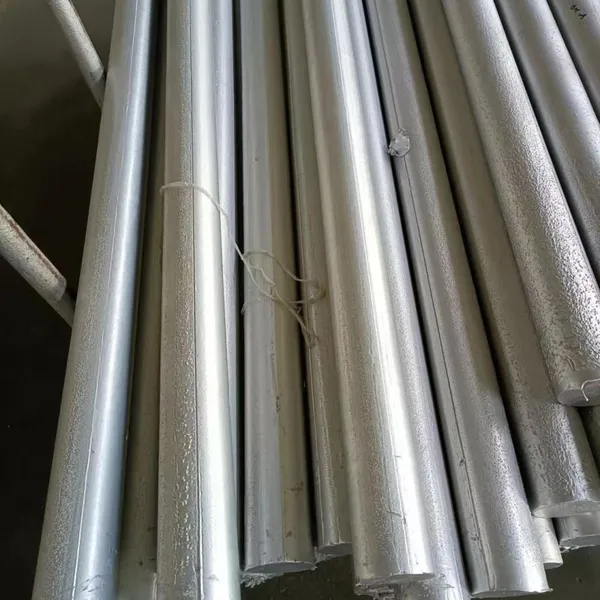

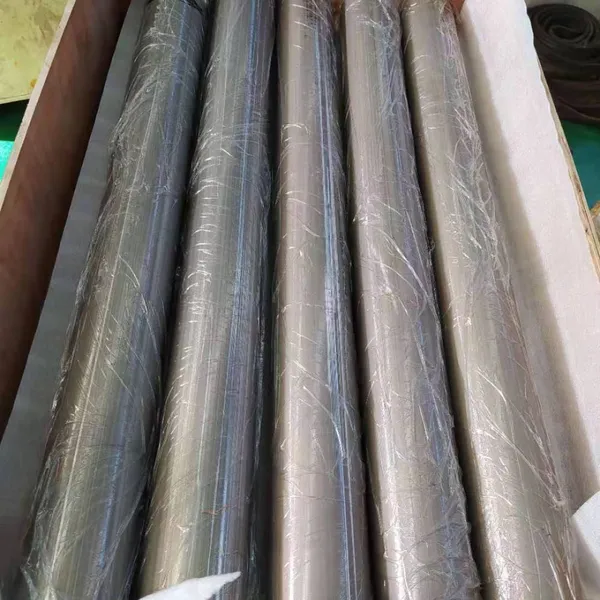

Dissolvable Material Magnesium Alloy Rod for Dissolvable Frac Plug
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
3mm-208mm
Material:
Other, magnesim alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao or as client's requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT 55 Drill Pipe Thread Protector for OilfieldNegotiableMOQ: 1 Piece -
Thread Protector of Hammer Union FMC 1502NegotiableMOQ: 1 Piece
-
Oil Well Sucker Rod Roller GuideNegotiableMOQ: 1 Piece
-
API 11B Wheeled Rod Guide and Sucker Rod Roller Centralizer for OilfieldNegotiableMOQ: 1 Piece
-
Oil Well API 11B Sucker RodNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
3mm-208mm
Material
Other, magnesim alloy
Certification
API
Use
Well Drilling
Processing Type
Forging
Models and Grades
| Grade | Max. Tensile Strength (Mpa) | Max. Pressure Strength (Mpa) | Yield Strength (Mpa) | Shear Strength (Mpa) | Elongation (%) | Elasticity Modulus(GPa) | Hardness (HB) | Testing Conditions | Dissolution Rate mg/(cm2*hr) | Dissolution Rate (mm/hr) | Density (g/cm3) | Sample Rod Size | |
| Temp.(℃ ) | Concentration of CL | ||||||||||||
| HH-006 | 380 | 430 | 260 | 140 | >3 | 44.8 | >80 | 93 | 3% | 50-70 | 0.56 | 1.83 | Φ110×1000 |
| 380 | 430 | 260 | 140 | >3 | 44.8 | >80 | 93 | 1% | 20-35 | 0.35 | 1.83 | Φ110×1000 | |
| 240 | 180 | 26 | 150 | Φ90 | |||||||||
| HH-006A | 320 | 366 | 240 | 162 | >6 | 44.8 | >75 | 93 | 3% | 50-70 | 0.56 | 1.83 | Φ70×1000 |
| 320 | 366 | 240 | 162 | >6 | 44.8 | >75 | 93 | 1% | 20-30 | 0.35 | 1.83 | Φ70×1000 | |
| HH-008(012) | 410 | 486 | 290 | 197 | >5 | 45 | >100 | 93 | 3% | 40-55 | 0.46 | 1.94 | Φ110×1000 |
| 410 | 486 | 290 | 197 | >5 | 45 | >100 | 93 | 1% | 15-25 | 0.3 | 1.94 | Φ110×1000 | |
| 310 | 260 | 12 | 250 | Φ90 | |||||||||
| HH-008A | 410 | 486 | 290 | 197 | >5 | 45 | >100 | 93 | 3% | 60-80 | 0.68 | 1.94 | Φ110×1000 |
| 410 | 486 | 290 | 197 | >5 | 45 | >100 | 93 | 1% | 35-50 | 0.42 | 1.94 | Φ110×1000 | |
| HH-008B | 350 | 408 | 240 | 176 | >7 | 44.8 | >85 | 93 | 3% | 30-45 | 0.43 | 1.93 | Φ110×1000 |
| 350 | 408 | 240 | 176 | >7 | 44.8 | >85 | 93 | 1% | 15-25 | 0.25 | 1.93 | Φ110×1000 | |
| HH-010 | 200 | 325 | 130 | 99 | 24 | 44.3 | ≥40 | 93 | 3% | 20-30 | 0.12 | 1.8 | Φ110×1000 |
| HH-011 | 410 | 486 | 300 | 197 | >4.5 | 44.8 | >100 | 93 | 3% | 20-35 | 0.28 | 1.93 | Φ110×1000 |
| 410 | 486 | 300 | 197 | >4.5 | 44.8 | >100 | 93 | 1% | 8-15 | 0.17 | 1.93 | Φ110×1000 | |
| HH-016 | 280 | 350 | 190 | 127 | 13 | 44.8 | >60 | 93 | 3% | 40-55 | 0.46 | 1.8 | Φ110×1000 |
| 280 | 350 | 190 | 127 | 13 | 44.8 | >60 | 93 | 1% | 15-25 | 0.25 | 1.8 | Φ110×1000 | |
| HH-017 | 210 | 352 | 150 | 99 | 18 | 44.8 | >60 | 93 | 3% | 40-55 | 0.48 | 1.8 | Φ110×1000 |
| 210 | 352 | 150 | 99 | 18 | 44.8 | >60 | 93 | 1% | 15-25 | 0.19 | 1.8 | Φ110×1000 | |
| HH-017K | 235 | 352 | 170 | 120 | 15 | 44.8 | >60 | 93 | 3% | 100-130 | 0.75 | 1.81 | Φ110×1000 |
| 235 | 352 | 170 | 120 | 15 | 44.8 | >60 | 93 | 1% | 50-70 | 0.45 | 1.81 | Φ110×1000 | |
| HH-018 | 230 | 362 | 170 | 130 | 12 | 44.4 | ≥45 | 50 | 0.84% | 35-50 | 0.42 | 1.82 | Φ110×1000 |
| HH-019 | 235 | 352 | 170 | 120 | 7 | 44.5 | >55 | 93 | 3% | 160-190 | 0.86 | 1.8 | Φ110×1000 |
| 235 | 352 | 170 | 120 | 7 | 44.5 | >55 | 45 | 0.10% | 20-40 | 0.15 | 1.8 | Φ110×1000 | |
| HH-021 | 305 | 415 | 220 | 140 | >3 | 44.5 | >65 | 43 | 0.05% | 80-100 | 0.81 | 1.94 | Φ110×1000 |
| HH-022 | 305 | 415 | 220 | 155 | >4.5 | 44.8 | >80 | 43 | 0.05% | 45-60 | 0.45 | 1.94 | Φ110×1000 |
| HH-023 | 275 | 385 | 180 | 140 | 8 | 44.5 | >65 | 43 | 0.05% | 20-35 | 0.27 | 1.93 | Φ28×1000 |
| HH-024 | 280 | 415 | 240 | 145 | >4.5 | 44.8 | >70 | 43 | 0.05% | 45-65 | 0.46 | 1.83 | Φ60×1000 |
| HH-808 | 370 | 486 | 262 | 197 | >3.5 | 44.8 | >100 | 50 | 0.84% | 40-60 | 0.44 | 2.16 | Φ110×1000 |
