PRODUCT DESCRIPTION

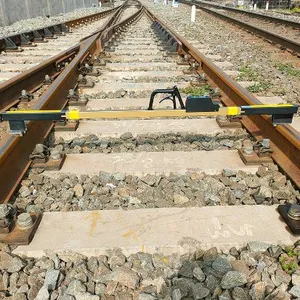

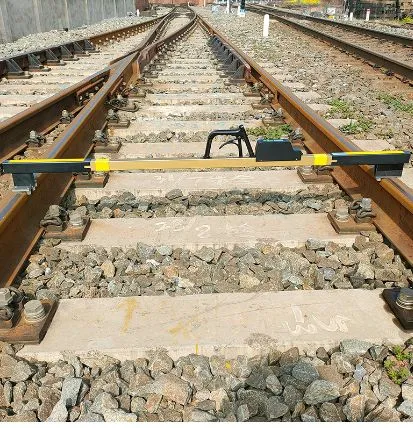

Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge, back to back distance and flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
FEATURE
1. Large LED backlit display: especially suitable for day outside and dark night
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CHINA ACADEMY OF RAILWAY SCIENCES
11.1000mm,1067mm,1435mm,1520mm,1600mm,1676mm track gauge is available.
SPECIFICATION
Model(1435mm) |
GJC-TJG1 |
Track gauge(mm) |
1384-1470 |
Gauge rail check gauge(mm) |
1364-1450 |
Guard rail face gauge(mm) |
1344-1430 |
Superelevation measuring range(mm) |
-200~+200 |
Flangeway Clearance(mm) |
20-107 |
Superelevation division value(mm) |
0.10 |
Track gauge division value(mm) |
0.1 |
Track gauge max indication error(mm) |
±0.25 |
Superelevation error(mm) |
±0.45 |
Application rail line |
railway speed less than 250km/h |
