Insulation Transformer Material Insulation Crepe Kraft Paper

Insulation Transformer Material Insulation Crepe Kraft Paper thumbnail-1
Insulation Transformer Material Insulation Crepe Kraft Paper thumbnail-2

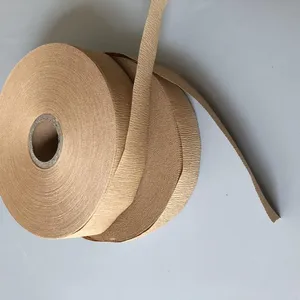

Insulation Transformer Material Insulation Crepe Kraft Paper thumbnail-3
Insulation Transformer Material Insulation Crepe Kraft Paper thumbnail-4
Insulation Transformer Material Insulation Crepe Kraft Paper thumbnail-5
Insulation Transformer Material Insulation Crepe Kraft Paper photo-1
Insulation Transformer Material Insulation Crepe Kraft Paper photo-2

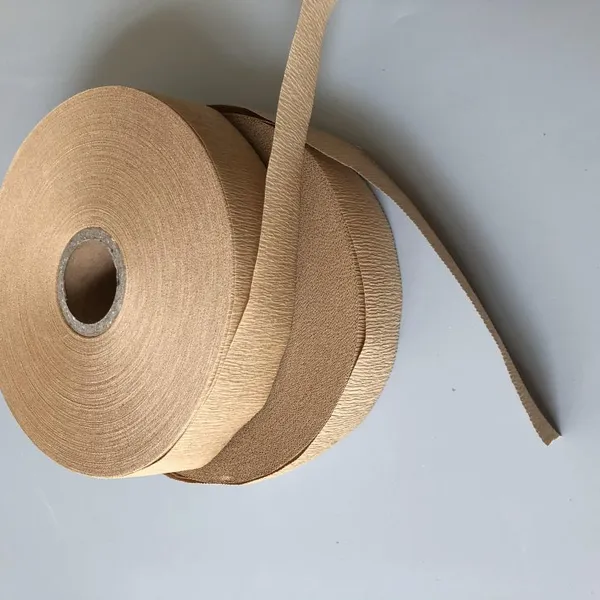

Insulation Transformer Material Insulation Crepe Kraft Paper photo-3
Insulation Transformer Material Insulation Crepe Kraft Paper photo-4
Insulation Transformer Material Insulation Crepe Kraft Paper photo-5
US$ 2.8 - 3.3 MOQ: 10 Kilograms
Key Specifications
Get Latest Price
Brand Name:
Youda
Place of Origin:
China
Model Number:
crepe kraft paper
Contact Supplier Request Quote Chat Now
Shenyang Youda Insulation Materials Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Youda
Place of Origin China
Model Number crepe kraft paper
Material Other, brown paper
Type Insulation Paper
Application Low Voltage
Rated Voltage 220V
Tensile Strength 10.4Mpa
Product descriptions from the supplier
Overview

insulation transformer material  insulation crepe kraft paper

insulation transformer material insulation crepe kraft paper



Product Description

 insulation transformer material  insulation crepe kraft paper



1 Description:



insulation transformer crepe paper   are produced from base papers weighing 25 - 180 g/m2,(15 -111 lbs/ream) and have an elongation of between 15 to 80 %.They are available in master rolls of up 1200 mm and in slit width in a big variety of customer specified inside and outside diameters.Some of the grades are also traverse wound. Insulation Crepe Paper is made of 100% superior sulfate insulating wood pulp.



2 Advantages:



Insulation materials  has excellent electrical, mechanical, and impregnating properties. Transformer insulation paper also has excellent tensile strength, reliable heat resistance and good voltage characteristic.



3 Applications:



Crepe kraft paper are ideally suited to insulate irregular shapes and surfaces where a proper insulation can not be reached with flat papers. Specialties were developed for applications as magnet wire insulation, as layer insulation, in current transformers, in RIP bushings or as shielding material.



insulation transformer material  insulation crepe kraft paper



S.N. ITEM UNIT ORIGINAL PAPER THICKNESS
0.05mm 0.075mm 0.08mm 0.13mm
1 Crepe paper thickness mm 0.35±0.05 0.38±0.08 0.40-0.60 0.70-0.90
2 Ash content less% 0.7 0.7 0.8 0.8
3 Moisture less% 7 7 8 8
4 Ether extract less% 0.3 0.3

5 Water extract PH
6.0-8.0 6.0-8.0 6.0-8.0 6.0-8.0
6 Pollution oil less%  0.1
7 Tensile strength Longitudinal N 30 40 45 50
Transversal N 20 30 35 40
8 Flexibility of crepe paper % 50
9 Breakdown voltage V / layer ≥950 ≥1000 ≥1000 ≥1000
10 Conductivity ms/m

≤9.0 ≤10
11 GSM g/m2 60±10% 110±10% 110±10

Packaging & Shipping

 insulation transformer material insulation crepe kraft paper

Our Services

We also CNC to your CAD drawing, cut to size customized, and sell full sheets in quantity.

Please call our Sales Department for information.

Company Information
We are a Chinese manufacture and expotor of insulation materials.
We have 27 years’ experience in producing Fiber glass sheet ,Bakelite plates, tubes, rods,SMC,GPO , XPC boards, CCL boards, polyester films, Nomex paper and mica products .

Sincerely hope to get win-win cooperation with you in the future.
insulation transformer material insulation crepe kraft paper
FAQ

 1). Q: Can you give me a discount price?

A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.



(2). Q: Why is your price a bit higher than other Chinese suppliers?

A: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.



(3). Q: How can I get a sample?

A: Normally small samples can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. For bigger sizes, it depends.



(4). Q: How can you guarantee the quality of mass production is same with the sample sent to me before?

A: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.



(5). Q: How can you deal with quality issues that customer feedback after receiving the goods?

1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.

2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.

3) Finally, we will negotiate with our customers to make some compensation.

Product Tags: insulation paper , crepe paper , crepe kraft paper
