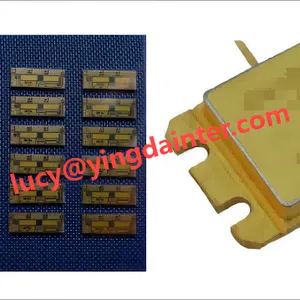

| GaN HEMT GN1214P54 | ||||||||||
| GN1214P54 series GaN Internally Matched Power Amplifier | ||||||||||
Performance characteristics: | ||||||||||
| Covering the working frequency band:1.2GHz ~1.4GHz Good 50Ω impedance matching,easy to cascade Metal ceramic tube sealed package Screw-fixed flange package or welded pill package | ||||||||||
|
Product introduction: |
||||||||||
| Electrical performance table: | ||||||||||
| 1.Working conditions:50Ω test system,VDS=+50V,IDS=50mA.((Typical test conditions: TA = +25℃，pulse width:200us,10% duty cycle.) | ||||||||||
| Parameter | Test Conditions | Minimum | Typically | maximum | Unit | |||||
| Saturation power | Freq.=1.2GHz~1.4GHz VGS=-2.8~-4V VDS=+50V IDsq=5~100mA |
54.0 | - | - | dBm | |||||
| Power Gain | 16 | - | - | dB | ||||||
| Power Added Efficiency |
63.0 | - | - | % | ||||||
| Power Flatness | - | 1.0 | dB | |||||||
| Pinch-off voltage | VDS=6V | IDS≤100mA | -5 | - | -3.50 | V | ||||
| Gate-source reverse Current |
VDS=0V | VGS=-10V | - | 5 | uA | |||||
| Note:The final technical indicators and dimensions are subject to the technical agreement.Products with similar power specifications,higher efficiency and wider bandwidth can be customized. | ||||||||||
| Working limit parameter: | ||||||||||
| Source-drain voltage Vds | +100V | wasted power （Tc=25℃，VDS=+50V) |
161W | |||||||
| Gate-source voltage Vgs | -10V | storage temperature | -55℃~+125℃ | |||||||
| Operating temperature | -40℃~+85℃ | - | - | |||||||
