The Future of Crimping is Here: The Intuitive, Double-Head Precision Crimping Machine
This innovative double-head crimping machine redefines efficiency and control in wire processing. Experience the perfect blend of user-friendly operation and exceptional precision, making it ideal for high-volume applications.
Key Features:
Effortless Double-Head Crimping: Double your production output with a powerful double-head design that crimps wires on both ends simultaneously.
True-Color Touchscreen Interface: The intuitive true-color touchscreen provides effortless control over all crimping parameters. Set stripping length, incision depth, cutting length, and crimp settings with a simple touch, ensuring a user-friendly experience for operators of all skill levels.
Unmatched Precision and Consistency: The advanced stepping motor and driver combination delivers unmatched precision, guaranteeing consistent and high-quality crimps on every wire, from AWG32 to AWG14.
Exceptional Versatility: Accommodates both transverse and direct applicators, providing exceptional flexibility to handle a wide range of crimping tasks.
Quiet Operation for a Comfortable Work Environment: The machine operates with minimal noise, creating a more pleasant work environment for your employees.
Adjustable Parameters for Optimal Results: Fine-tune various parameters to achieve the perfect crimp for each wire type and application.
High-Volume Processing Power: Delivers impressive production rates of up to 4500 crimps per hour (depending on wire length), significantly boosting your production efficiency.
Enhanced Detection Systems: Integrates wire detection, knotting detection, and improper crimping detection for improved process reliability and quality control.
Technical Specifications:

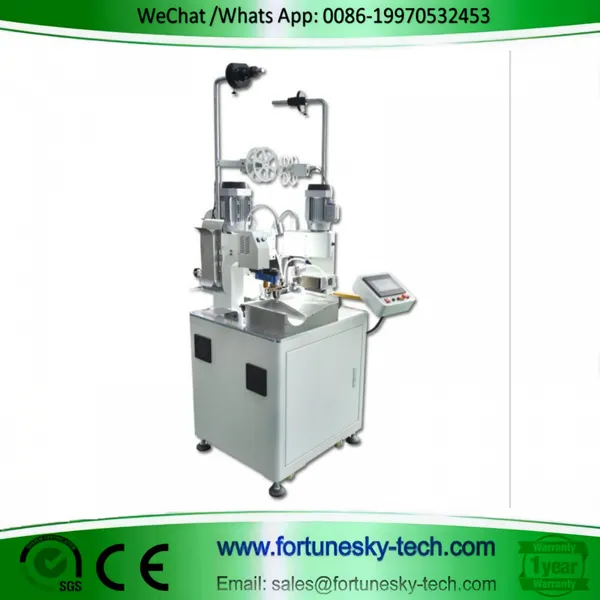

Product Name: Fully Automatic Double-Ends Wire Terminal Crimping Machine
Wire Size: 0.08-3.0mm² (AWG#32-14)
Production: Up to 4500 crimps per hour (depending on wire cutting length)
Function: Both-Ends Full Stripping, Both-Ends Partial Stripping, Both-Ends Terminal Crimping
Wire Cutting Length: 35-9999 mm
Cutting Accuracy: 0.2 mm + (Set Cut-Off Length x 0.002)
Wire Stripping Length:
Front: 1.00-15.00/25.00 mm
Tail: 1.00-8.00 mm
Detection Devices: Wire detection, wire knotting detection, improper crimping detection, etc.
Power Source: Single Phase AC220V 20A
The Fully Automatic Double-Ends Wire Terminal Crimping Machine is a revolutionary solution for businesses seeking to maximize their wire processing efficiency without compromising on precision or control. Its intuitive interface, exceptional versatility, and quiet operation make it a valuable asset for any high-volume production line.
