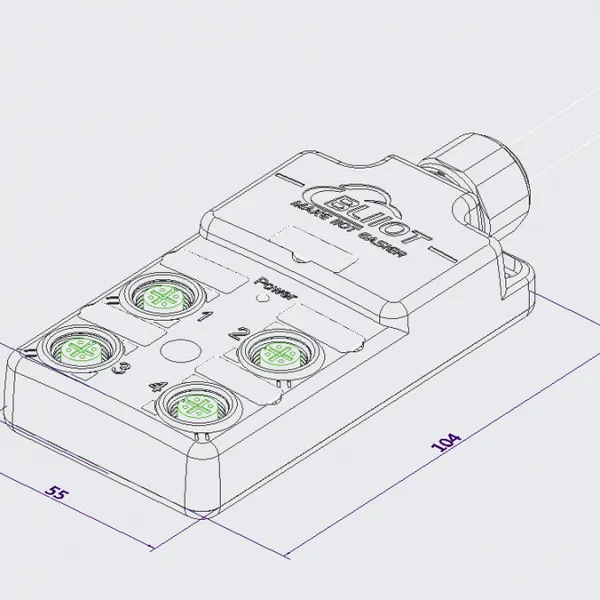

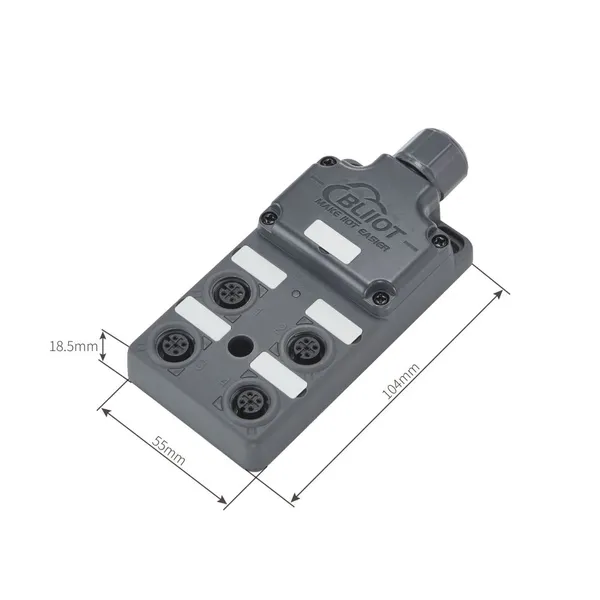

Help CenterDBT Series 4 Ports M12 2CH Terminal Block Sensor Distributor for Water Treatment IP69K
Related Products
-
8-Port M8 Tool-free Terminal Block Relay Junction Box for Marine Automation System IP67US$ 22.15 - 25.80MOQ: 1 Piece -
Precast Cable IP67 Actuator Junction Box 4 Ports M12 1CH for Mine Automatic MonitoringUS$ 13.64 - 15.98MOQ: 1 Piece
-
IP69K Waterproof IO Box 8 Ports M8 Single Channel for Outdoor Engineering VehiclesUS$ 13.64 - 15.98MOQ: 1 Piece
-
4-Port M12 Dual Channel Pre-Cast Cable IP67 Waterproof IO Module for Bridge MonitoringUS$ 13.64 - 15.98MOQ: 1 Piece
-
8-Port M8 Dual Channel Pre-Molded Cable IP69K Relay Junction Box for Water TreatmentUS$ 13.64 - 15.98MOQ: 1 Piece
1. Overview
DBT Series M12 tool-free terminal sensor distributor features an industrial-grade design and built-in tool-free terminals for convenient on-site wiring. The housing is made of acid and alkali-resistant materials and can achieve an IP65 protection rating. It can be used to collect NPN or PNP sensor signals from various devices on-site, integrating them into a single multi-core cable for connection from sensors to the controller through the cable.
The cable length of the sensor distributor can be customized according to on-site requirements, facilitating quick on-site wiring. The sensor distributor is compact, allowing for flexible installation, simple wiring, and reliable stability. It is suitable for a wide range of industrial automation equipment, including logistics equipment, food processing equipment, pharmaceutical equipment, and more.
Cable Type |
8 Channel: 8x0.3mm2+3x0.75mm2(Gray) |
|
Technical Parameters |
Rated Voltage |
24V DC |
Rated Current |
2A |
|
IP Level |
IP65 |
|
Safety Protection |
Main Circuit, Branch Circuit Overload Protection |
|
Operating Temperature |
-20~+70℃ |
|
Storage Temperature |
-40~+85℃ |
|
LED Indicators |
Power Supply (Red), Signal S1 (Yellow) |
|
Item Number |
2m cable-8 ports PNP |
DBT-M12-8P-1S-P-2-PVC-GY |
5m cable-8 ports PNP |
DBT-M12-8P-1S-P-5-PVC-GY |
|
2m cable-8 ports NPN |
DBT-M12-8P-1S-N-2-PVC-GY |
|
5m cable-8 ports NPN |
DBT-M12-8P-1S-N-5-PVC-GY |
|
Cable Type |
8 channel: 8x0.3mm2+3x0.75mm2(Gray) |
|
Technical Parameters |
Rated Voltage |
24V DC |
Rated Current |
2A |
|
IP Level |
IP65 |
|
Safety Protection |
Main Circuit, Branch Circuit Overload Protection |
|
Operating Temperature |
-20~+70℃ |
|
Storage Temperature |
-40~+85℃ |
|
LED Indicators |
Power Supply (Red), Signal S1 (Yellow), Signal S2 (Yellow) |
|
Item Number |
2m cable-4 ports PNP |
DBT-M12-4P-2S-P-2-PVC-GY |
5m cable-4 ports PNP |
DBT-M12-4P-2S-P-5-PVC-GY |
|
2m cable-4 ports NPN |
DBT-M12-4P-2S-N-2-PVC-GY |
|
5m cable-4 ports NPN |
DBT-M12-4P-2S-N-5-PVC-GY |
|
